EVOCA Kalea User Manual

22 01-2018 5035 01
DISCARDING THE SOLID AND
LIQUID RESIDUES
Where possible, you should empty the solid
residues into a bucket and connect the liq-
uid residue container to a standpipe.
liquiD rEsiDuEs
Connect the liquid residue container to a
standpipe using the drain tting that inserts
into the liquid residue container
When this is not possible, it is preferable to
use a bucket to collect the residues from
the container.
To connect the liquid residue container to
the drain tting, drill the liquid residue con-
tainer into the drain tting area.
Make sure that the liquid ows from the
container without any obstacles.
soliD rEsiDuEs
The solid residues can be emptied directly
into a bucket using the solid residue chute
supplied as standard, by inserting it into the
drain hole.
The solid residue bucket must be housed
inside a closed cabinet.
2
1
3

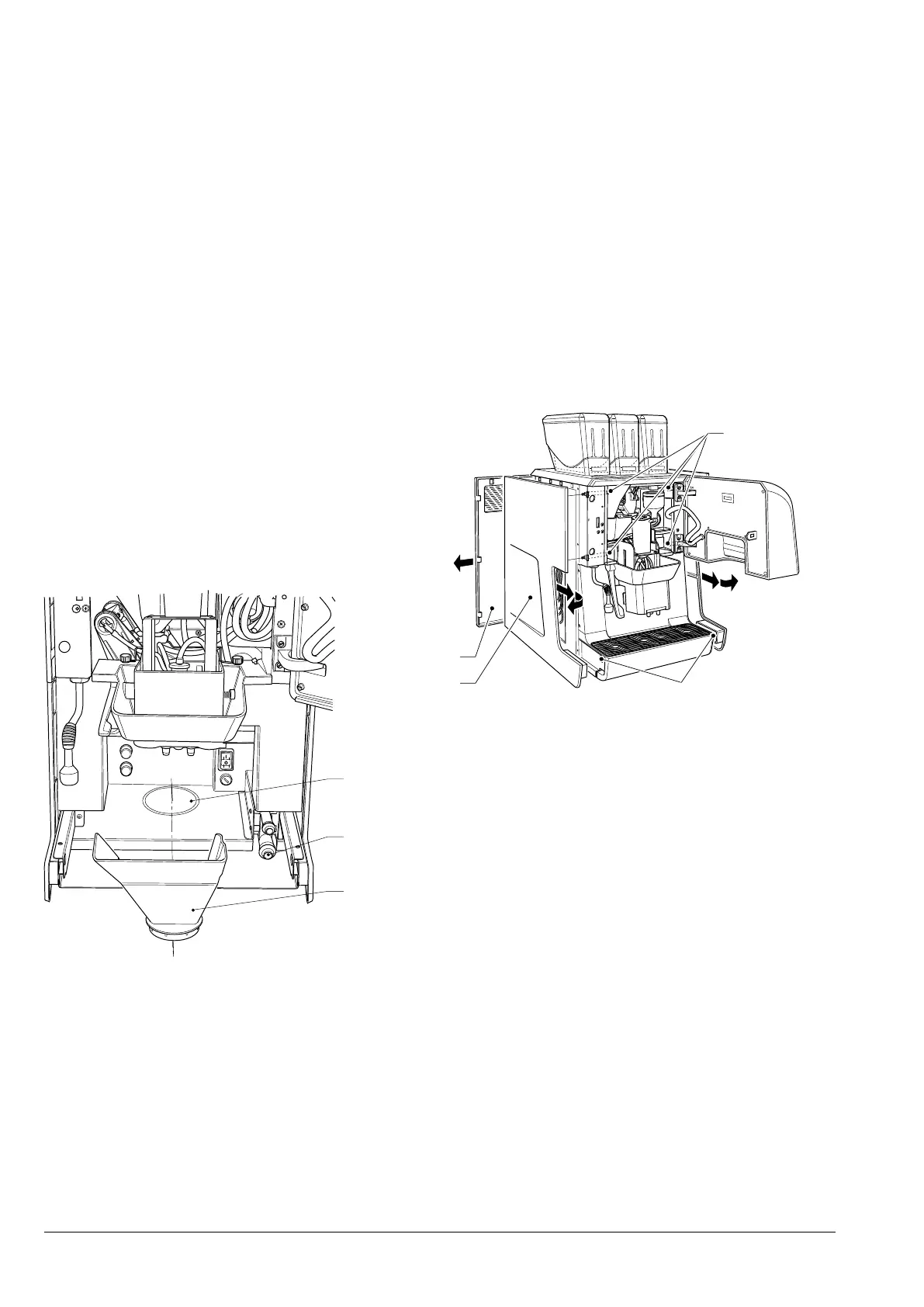

Fig. 18
1. Provision to empty the solid residue
2. Liquid residue drain fitting
3. Solid residue chute
REMOVING THE PANELS
To gain access to the internal components,
the panels must be removed.
1. Remove the liquid residue container.
2. Remove the fixing screws of the side
panels.
3. Remove the fixing knurls on the side
panels.
4. Slide the side panels forward to release
them.
5. To remove the rear panel, slide it to the
left.
To reassemble the panels, repeat the pro-
cess in reverse order.
2
3
1
4
Fig. 19
1. Side panel fixing knurls
2. Rear panel
3. Side panel
4. Side panel fixing screws
