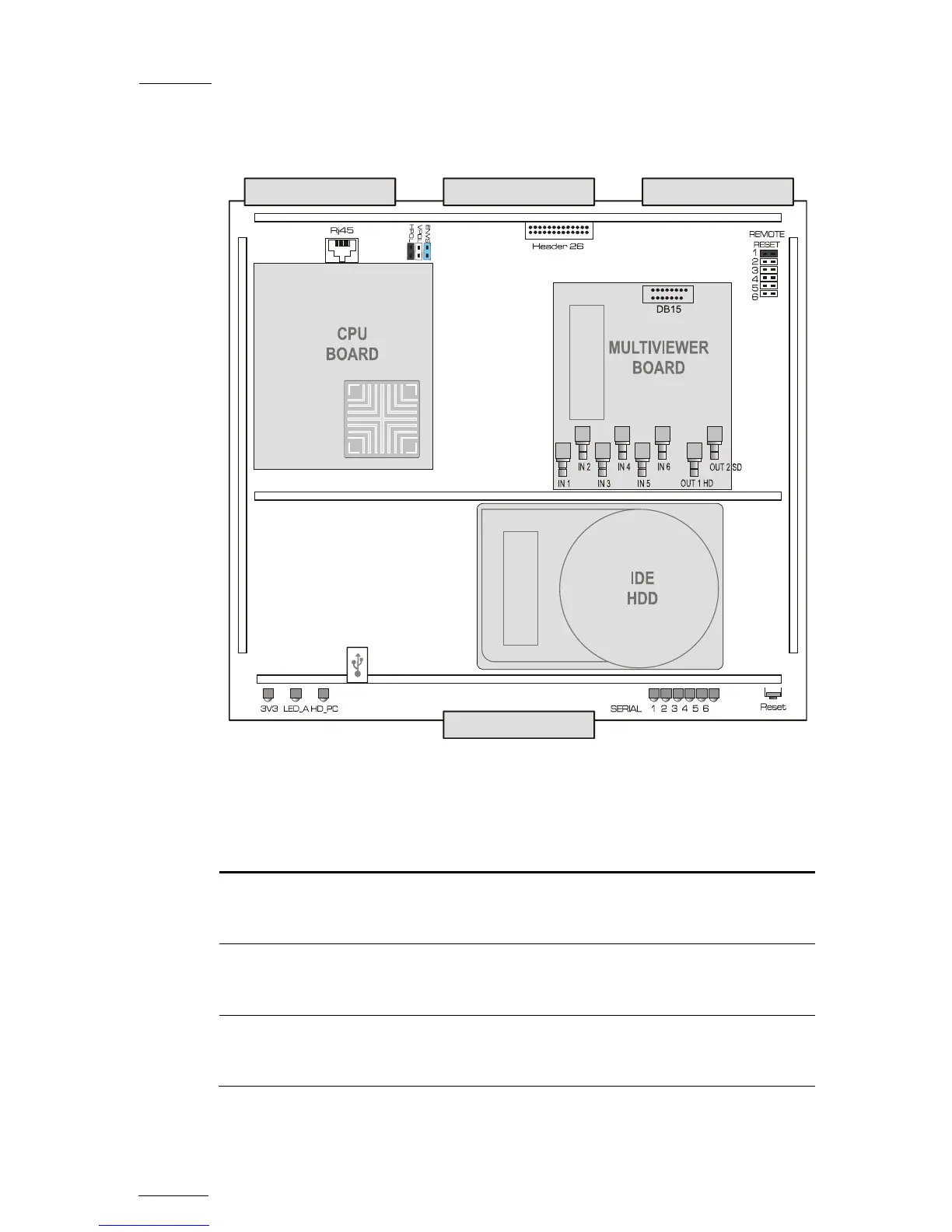

3.5.2 A2/A3 AND A2/A4 BOARD
MULTIVIEWER
The multiviewer board is an option on XT[2] servers.
Connectors
IN The J2 connectors from the CODEC modules of the COHX
board are connected to the IN connectors of the
multiviewer board.
OUT1 HD The OUT HD connector of the multiviewer board is
connected to the MULTIVIEWER HD SDI connector on the
rear panel of the server.
OUT2 SD The OUT SD connector of the multiviewer board is
connected to the MULTIVIEWER SD SDI connector on the
rear panel of the server.
