SAFETY DEVICES
16
Chapter4
3 bar valve
air vent valve
pressure switch
H
2
O NTC
probe

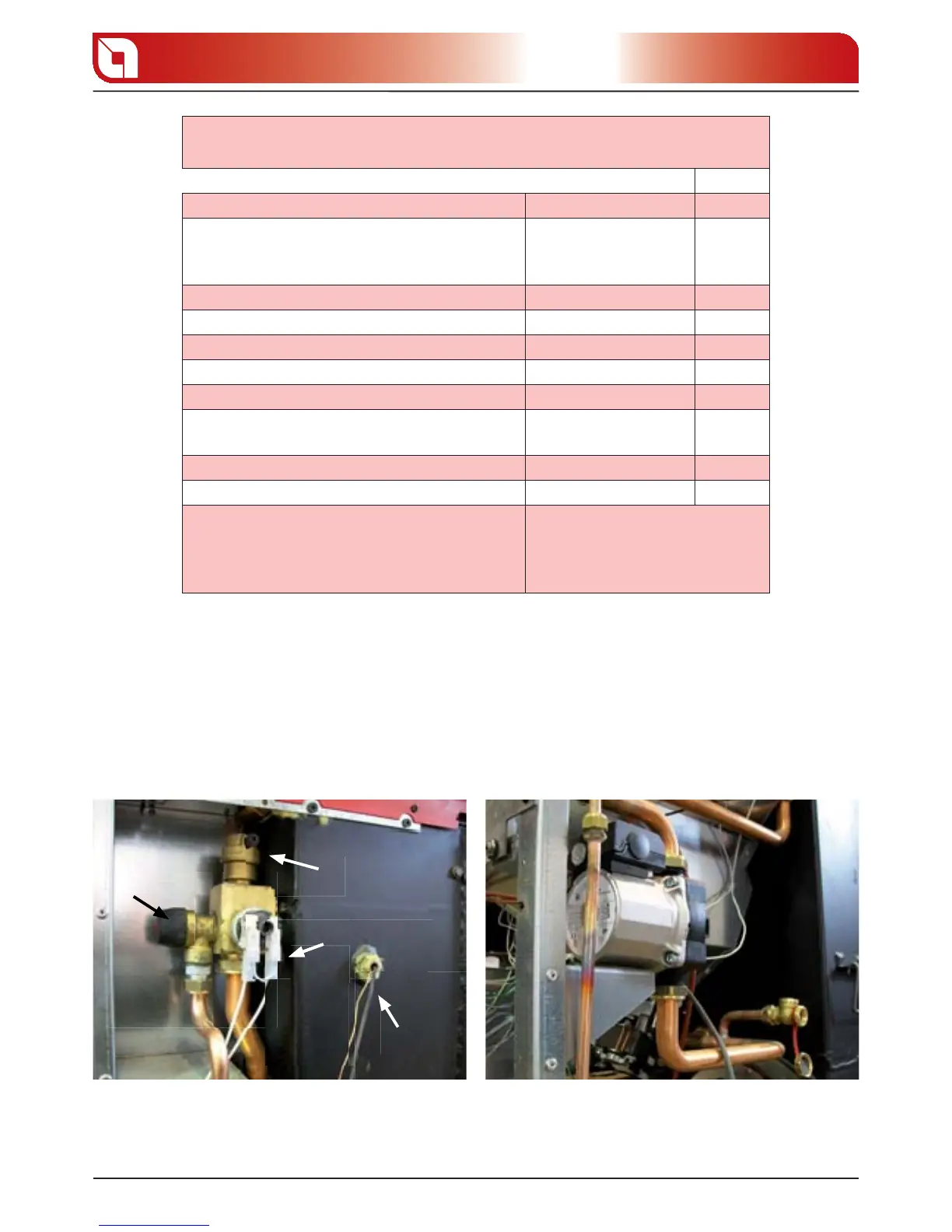

TABLE OF SAFETY DEVICES FOR CLOSED VESSEL SYSTEM AND
NOT PRESENT IN THE PRODUCT
Figure
Safety valve * 4.1
Pump control thermostat
* (managed by H
2
O
probe and board
rmware)
4.1
Acoustic alarm activation thermostat - -
Temperature indicator * (display) -
Pressure indicator - -
Acoustic alarm - -
Adjustment automatic circuit breaker switch * (board rmware) -
Water overheating automatic circuit breaker
block switch (block thermostat)
* 4.3
Circulation system * 4.2
Expansion system * 4.4
Safety dissipation system incorporated with
the generator with thermal safety valve (self-
activated), whenever the appliance does not
have a temperature self-adjustment system
Not necessary as the machine
has a t° self-adjusting system
and a block automatic circuit
breaker switch.
As per standard (*)
Not as per standard (-)
gure 4.1
gure 4.2
