Installation manual
BCSD
System
1.

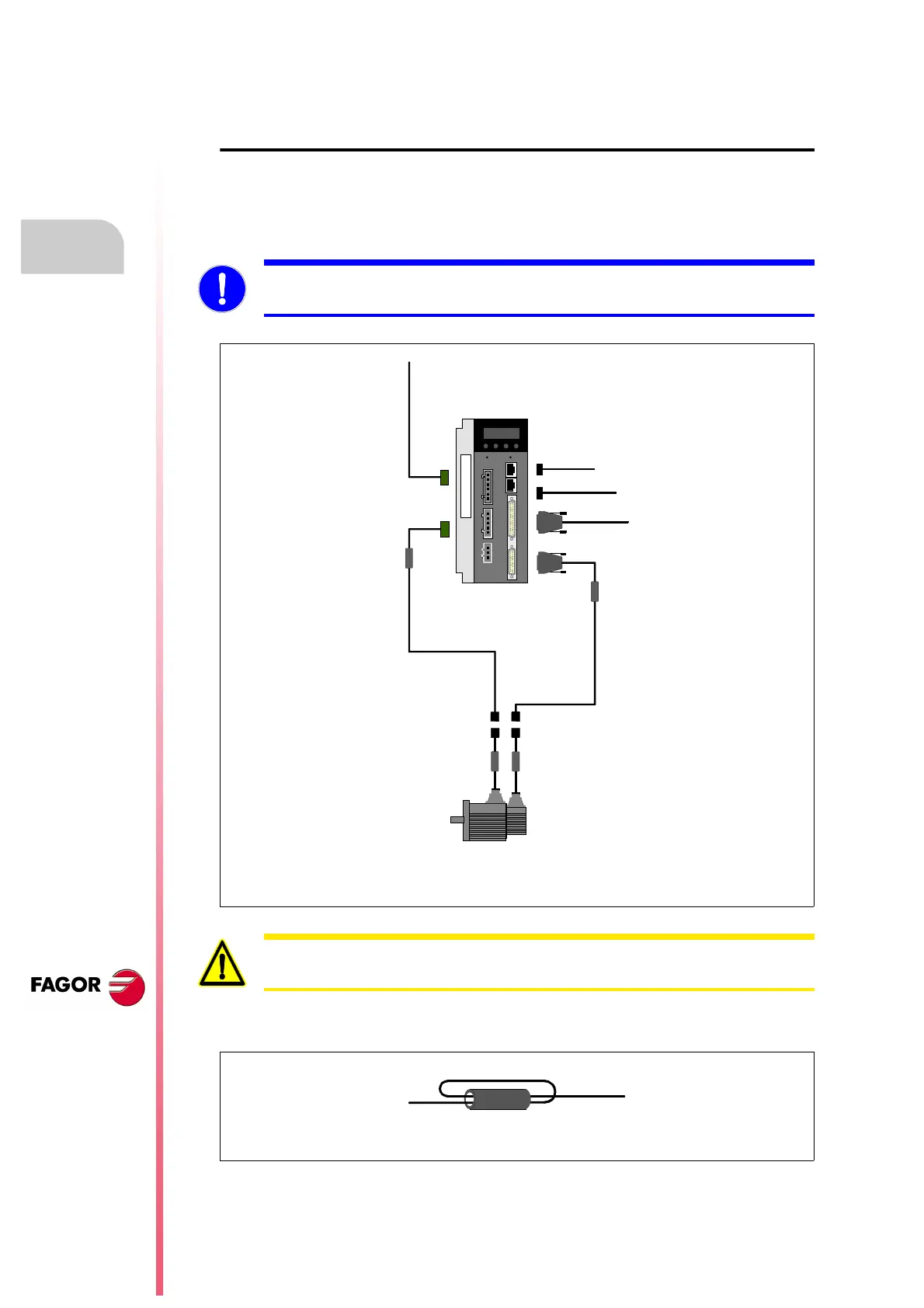

GENERAL SYSTEM DIAGRAM
REF. 1711
Accessories
1.2 Accessories
Ferrite core (FBS motors)
Cables: Motor power cable and motor encoder cable.
Ferrite core model: ESD-SR-250.
Manufacturer: Tokin.
As shown by the next figure, we recommend to wrap twice around the ferrite with the cable:
Using ferrite cores is mandatory.
The ferrite core must be as close to the drive or motor as possible.
CN2
EEC-FBS
MPC-FBS
Ferrite Core Ferrite Core
Ferrite Core
Ferrite
Core
BCSD
Axis control
CN3
CN4
CN1-I/Os
FBS
Axis motor
CN1-I/Os
In order to comply with European Directive 2014/35/EU on Low Voltage and 2014/30/EU on
Electromagnetic Compatibility, it is mandatory to insert the ferrite cores in the system.
