Fagor BCSD User Manual

·34·
Installation manual
BCSD
System
3.
CABLES
REF. 1711
Terminated resistor

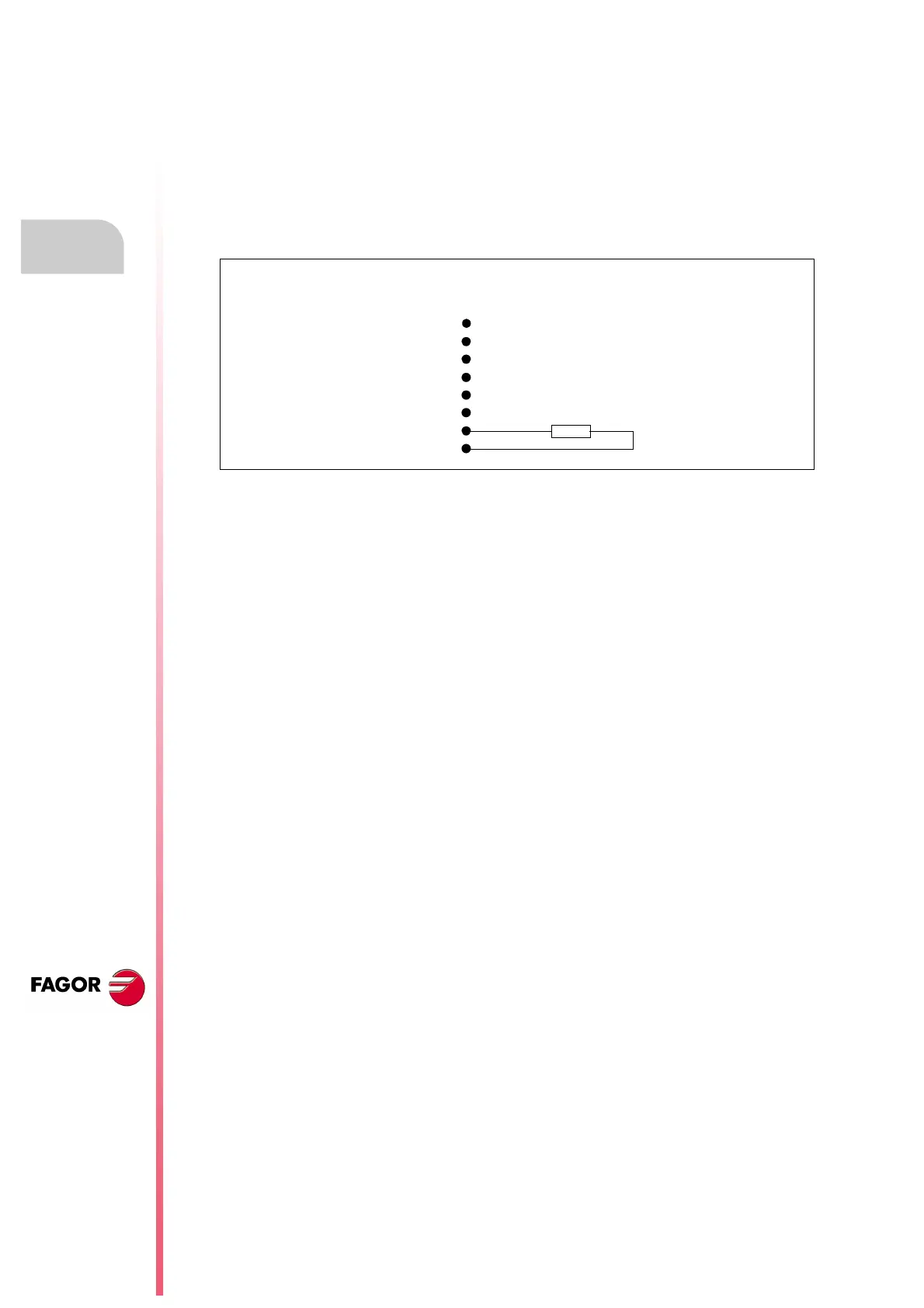

3.5 Terminated resistor
Cable name: BSC-TR
Connector CN4 of the BCSD axis drive with terminal resistor for the CAN communication end.
Connector:
RJ45
Pinout:
3.6 Cable for connecting with RS485 to all BCSD axis drives
Cable name: BSC-PC-USB
Cable to connect from PC USB to CN4 connector of BCSD axis drive.
Length: 2 m.
Take out the terminating resistor and use this cable to connect the computer USB to any of the BCSD
drives.
1
2
3
4
5
Pin
BCSD CN4
6
7
8
CAN H
CAN L
120 (1%, 1/4W)
