Drives
3.
Ref.1912
· 109 ·
DDS
HARDWARE

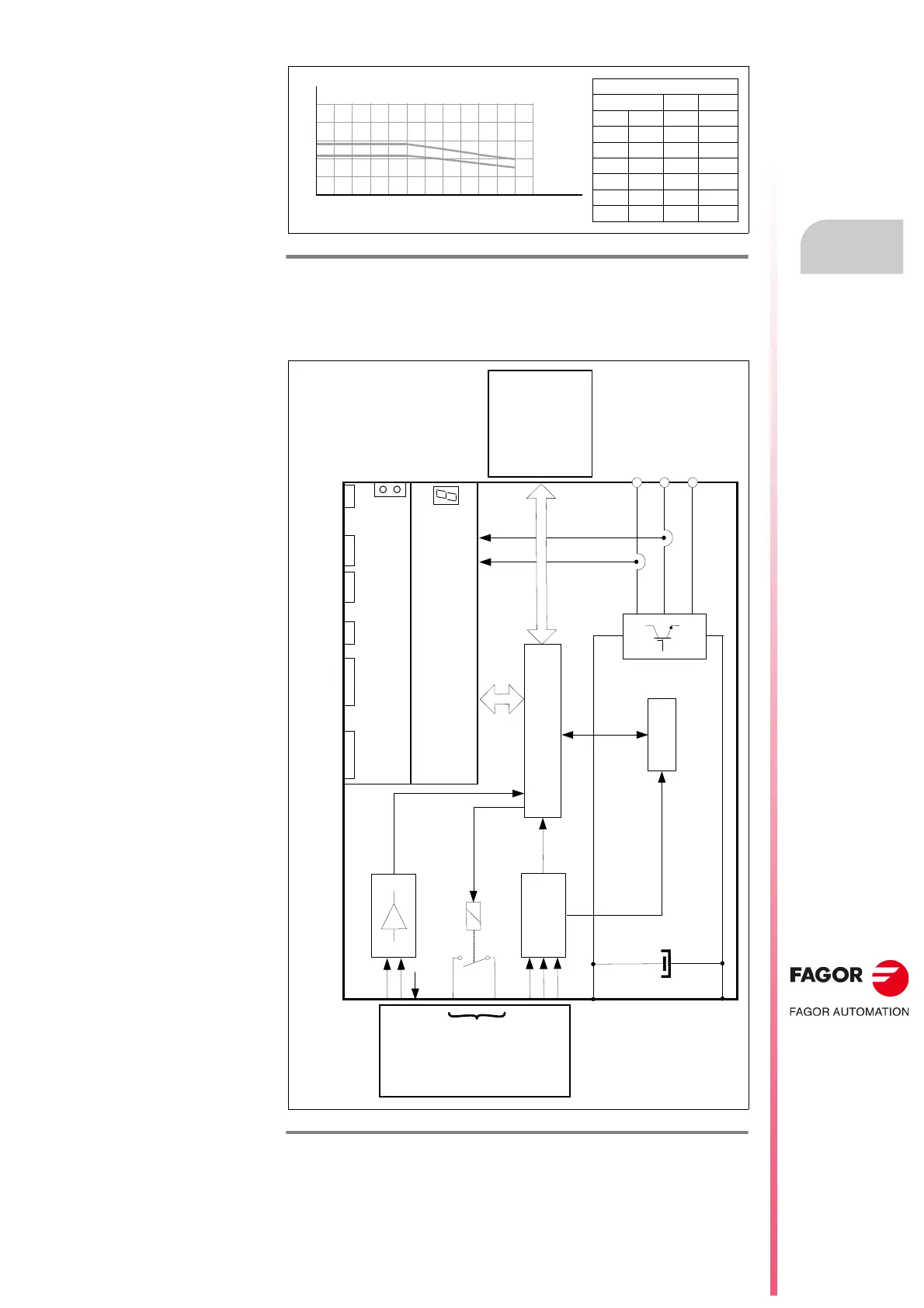

Block diagram
F. H3/44
Current derating on ·SPD 3.250· drives for fc = 8 kHz.
F. H3/45
Modular drives AXD|SPD. Block diagram.
35 40 55 60
100
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
150
200
50
I
S6-40
250
0
In
SPD 3.250
T ambient In IS6-40
° C ° F A A
35 95 108.0 140.4
40 104 108.0 140.4
45 113 108.0 140.4
50 122 97.2 126.3
55 131 85.9 111.7
60 140 74.3 96.6
!
