Fagor DDS XPS-25 User Manual

Power supplies
2.
94
Ref.1912
DDS
HARDWARE
· 54 ·

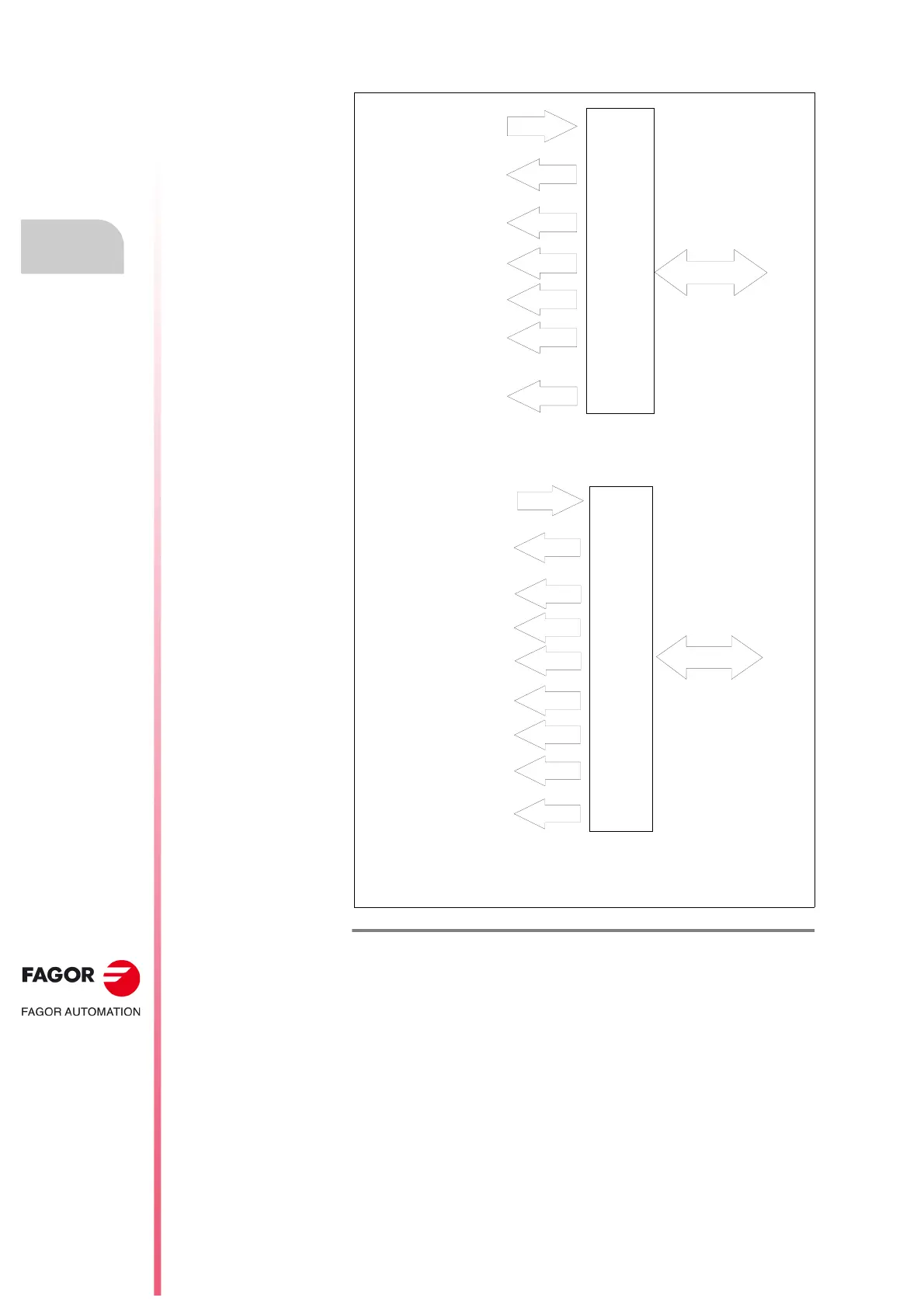

Power diagram
F. H2/15
Regenerative power supplies, XPS-XX. Power diagram.
65 kW
Mains
54 kW
1800 W
1.9 kW
Drives
XPS-65
2x ER+TH-18/1100
Internal Ballast
Power
2.6 kW
2x ER+TH-18/1800
4.0 kW
2x ER+TH-18/2200
4.0 kW
2x ER+TH-18/1000+FAN
6.0 kW
8.0 kW
2x ER+TH-18/1500+FAN
2x ER+TH-18/2000+FAN
XPS-25
25 kW
Mains
20 kW
520 W
Power
Internal Ballast
Drives
950 W
ER+TH-18/1100
2.0 kW
ER+TH-18/1000+FAN
3.0 kW
4.0 kW
ER+TH-18/1500+FAN
ER+TH-18/2000+FAN
To dissipate more than 520 W, connect one of the external resistors indicated
on the graphics depending on the power to be dissipated.
To dissipate more than 1800 W, connect in parallel (never in series) one of
the pairs of the external resistors indicated on the graph depending on the
power to be dissipated.
