Power supplies
2.
94
Ref.1912
DDS
HARDWARE
· 44 ·
Power connectors
Terminal strip for mains connection
When connecting the power supplies to mains through terminals L1, L2 and
L3, the phases may be connected in any order.
The ground connection of the cable shield is made from the vertical plate
next to the terminal strip.
The following table shows the values for gap, tightening torque (wire entry
holes) and other data regarding these power screw-on terminals:

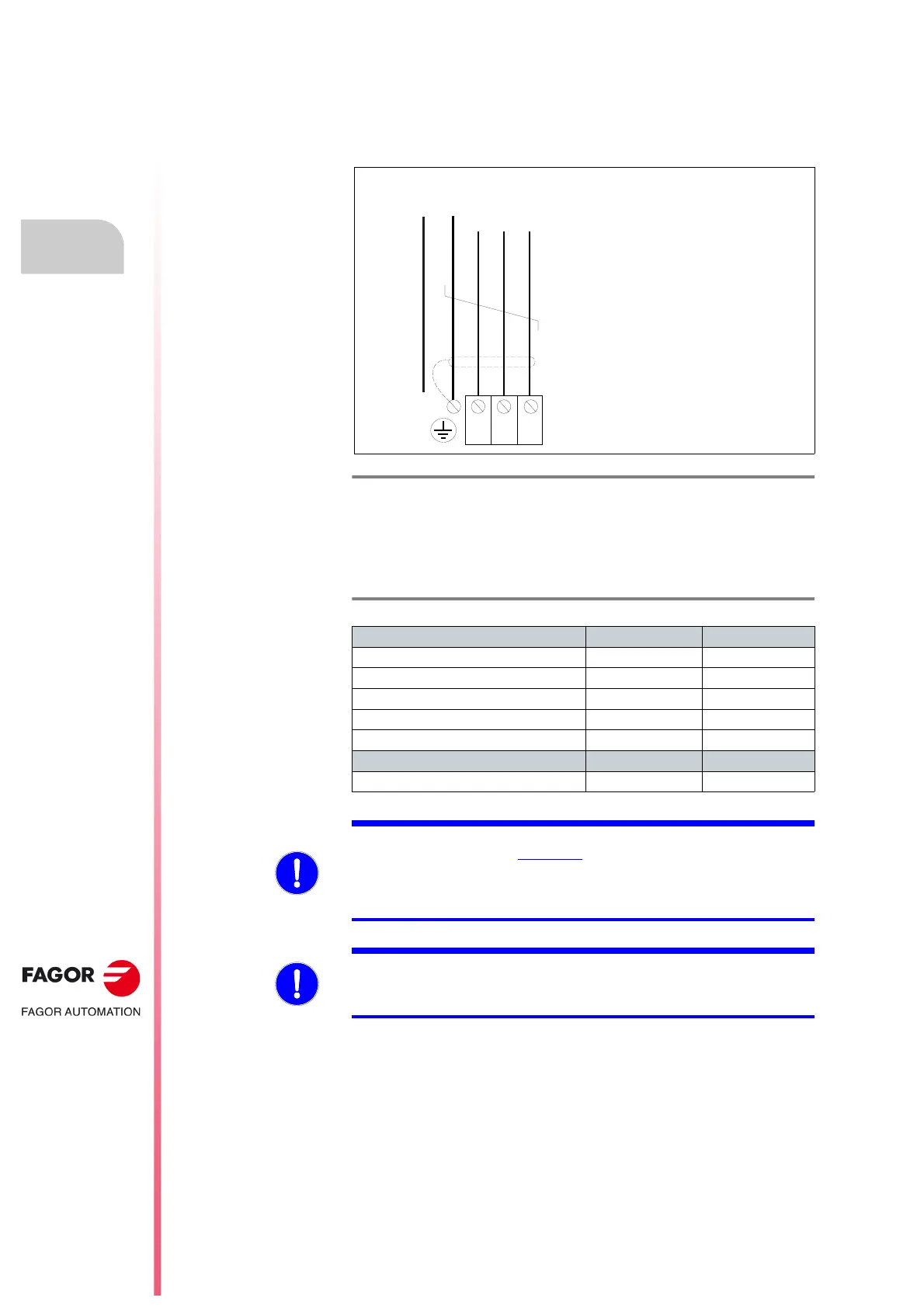

F. H2/8
Terminal strip for connection to mains.
T. H2/8 Mains connection terminals. Technical data.
Connector data PS-25B4 PS-65A
Gap (mm) 10.16 -
Min/max tightening torque (N·m) 1.2/1.5 6/8
Screw thread M4 M6
Min./max. section (mm²) 0.5/16 16/50
Rated current In (A) 76 150
Wire data
Length to strip (mm) 10 24
L3L2L1
From mains
N
L1
2
)
The RST phases may be
connected i n any sequ en ce
Cable without connectors
MPC-4x... (mm²)
L2 L3
L1 L2 L3
Note.
R S T, classic nomenclature
L1 L2 L3, current nomenclature
(R) (S) (T)
1
///
)URPPDLQV
3(
/
7KH567SKDVHVPD\EH
FRQQHFWHGLQDQ\VHTXHQFH
&DEOHZLWKRXWFRQQHFWRUV
03&[PPð
/ /
/ / /
1RWH
567FODVVLFQRPHQFODWXUH
///FXUUHQWQRPHQFODWXUH
5
6
7
MANDATORY. As for possible high leak currents, use a protection ground
wire with a cross section of at least
10 mm² (Cu) or 16 mm² (Al) or two
protection ground wires with the same cross section as that of the wires
connected to the power supply terminals. Comply with local regulations on
grounding.
MANDATORY. The equipment must be protected with fuses on the three-
phase supply lines L1, L2 and L3. Follow the instructions given in chapter 6.
POWER LINE CONNECTION of this manual.
