E. Retractable Seat Belt: The seat belt is used to secure

the operator to the seat.

Note:The seat belt should always be worn when the Roll Bar

is in the raised position. The seat belt should never be worn

when the Roll Bar is in the down position.

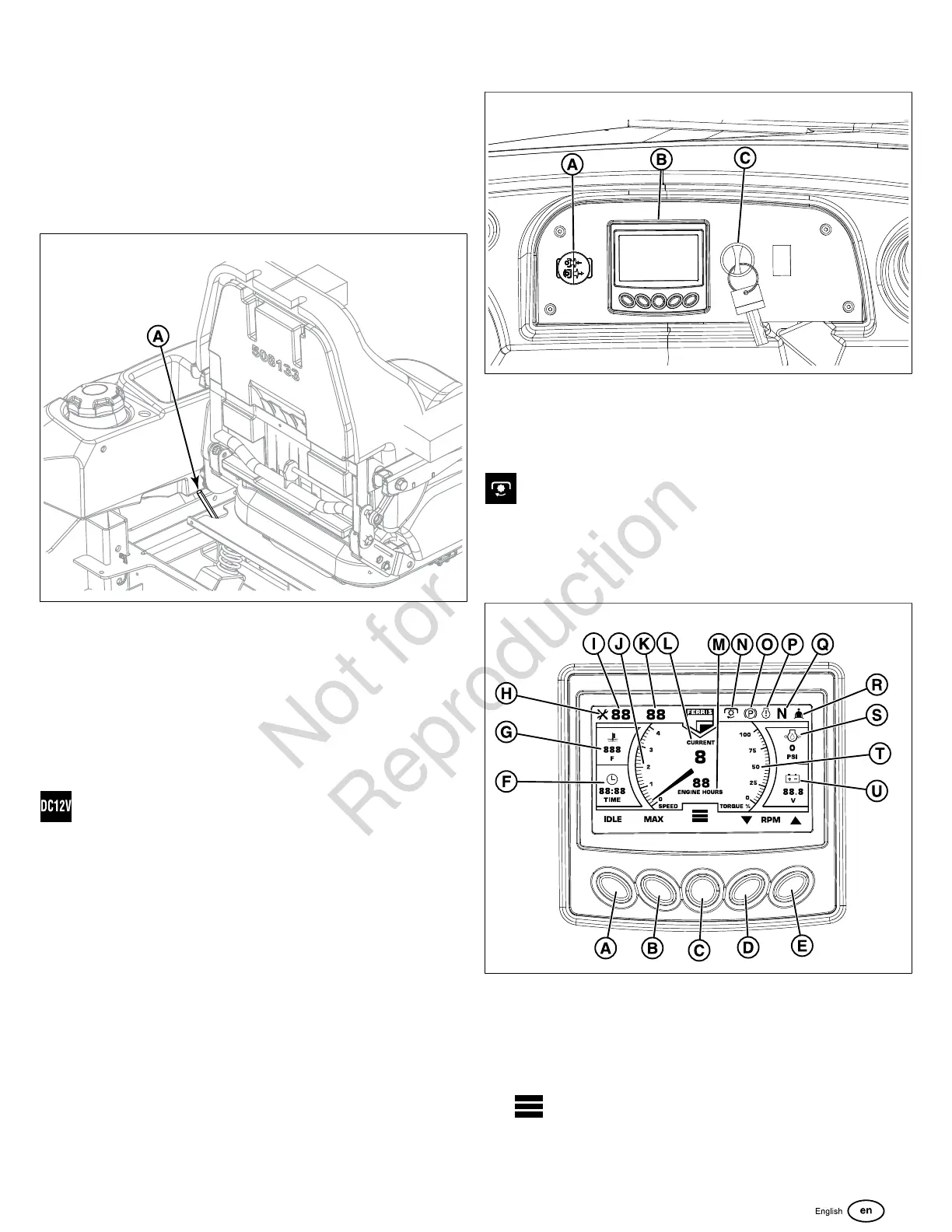

Seat Latch:The seat latch (A, Figure11) secures the seat

plate to the frame of the unit

To raise the seat plate, release the latch by moving the seat

latch towards the front of the unit and then raise the seat

plate.

The seat latch is spring loaded. When the seat plate is

lowered back into place the seat latch will lock the seat plate

into place.

Fuel Tank Cap: To remove the cap, turn counter-clockwise.

Power Outlet: Unit is equipped with a +12V DC, 20A

power outlet.

Removable Floor Plate: The floor plate can be removed

for easy access to the mower deck. To remove the plate,

remove the retainer hardware and tilt the floor pan up and

then remove from the machine. Reverse the process for re-

installation.

Instrument Control Panel

A. PTO (Power Take Off) Switch

B. Digital Display Panel

C. Ignition Switch

PTO (Power Take Off) Switch: The PTO switch

engages and disengages the mower blades. Pull UP on the

switch to engage, and push DOWN to disengage.

Digital Display Panel:

A. Engine Throttle Speed - IDLE Position: Press this

button to adjust the engine throttle speed to IDLE.

B. Engine Throttle Speed - Maximum Position: Press this

button to adjust the engine throttle speed to the maximum

position.

Menu Button: Press this button to access the

different options available in the digital display panel,

such as Service Reminders, PTO Run Time Hours, and

Fault Codes and Descriptions.

Ferris IS600 Series User Manual
