WARNING
Pinch PointHazard

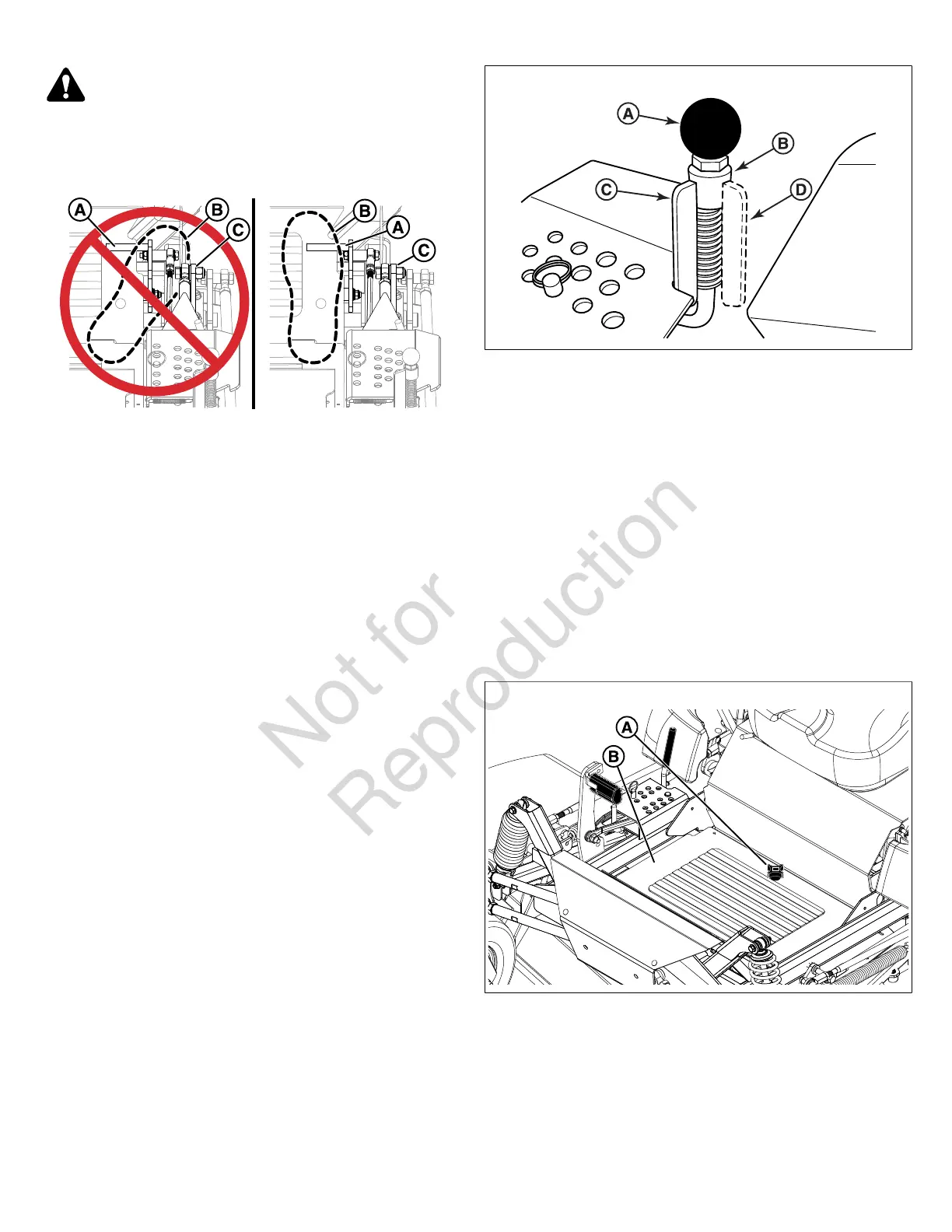

When pressing the deck lift pedal (A), keep your foot (B) on
the pedal to avoid a potential pinching hazard as the deck
height link (C) moves forward.
2. Place the cutting height adjustment pin in the desired
cutting height.
Note:If cutting at the 6" (15,2 cm) cutting height, place the
cutting height adjustment pin in the pin storage hole (D).
3. Press the deck lift pedal forward to raise the deck and
release the deck lock (E).
4. Push the deck lift lock lever to the right to release the
lock.
5. Gravity will lower the mower deck until the deck lift pedal
comes to rest against the cutting height adjustment pin.
Deck Lift Lock Lever Lockout Plate
Operation
The Deck Lift Lock Lever Lockout Plate (A, Figure 58) can be
used to prevent the mower deck from locking the deck in the
TRANSPORT position if you raise deck during operation to
clear an object.
1. Move the deck lift lock lever (A) away from the operating
position, and rotate the deck lift lever lockout plate (B) to
the UNLOCK (C) position (facing towards the operating
position) and allow the deck lift lever lockout plate to
contact the deck height box.
58
The mower deck can now be raised to the TRANSPORT
position without the deck lift lock lever engaging.
2. Move the deck lift lock lever away from the operating
position, and rotate the deck lift lever lockout plate (B)
to the LOCK (C) position (facing towards the rear of the
machine) and allow the deck lift lever to return to its
natural position. The mower deck can now be raised to
the TRANSPORT position and the deck lift lock lever will
lock it in place.
Floor Pan Removal & Installation
This unit is equipped with a removable floor pan which can be
removed to provide better access to the mower deck.
1. Loosen and remove the retaining hardware (A, Figure 59)
that secures the floor pan to the frame of the unit.
59
2. Tilt the back end of the floor pan up and then remove it
from the unit.
3. To re-install the floor pan: Reverse the removal
procedure.
Operating the Hood Latch
This unit is equipped with a hood latch that must be released
prior to opening the hood.
