Raise and Lower the Roll Bar
WARNING
Avoid serious injury or death from roll over:
• Keep roll bar in the raised position and use the seat
belt.
• There is no roll over protection when the roll bar is
down.
• Lower the roll bar only when necessary and NEVER
remove it.
• Do NOT use seat belt when the roll bar is down.
• Raise the roll bar as soon as clearance permits.
• Do NOT jump off if the mower tips.
To lower the roll bar:

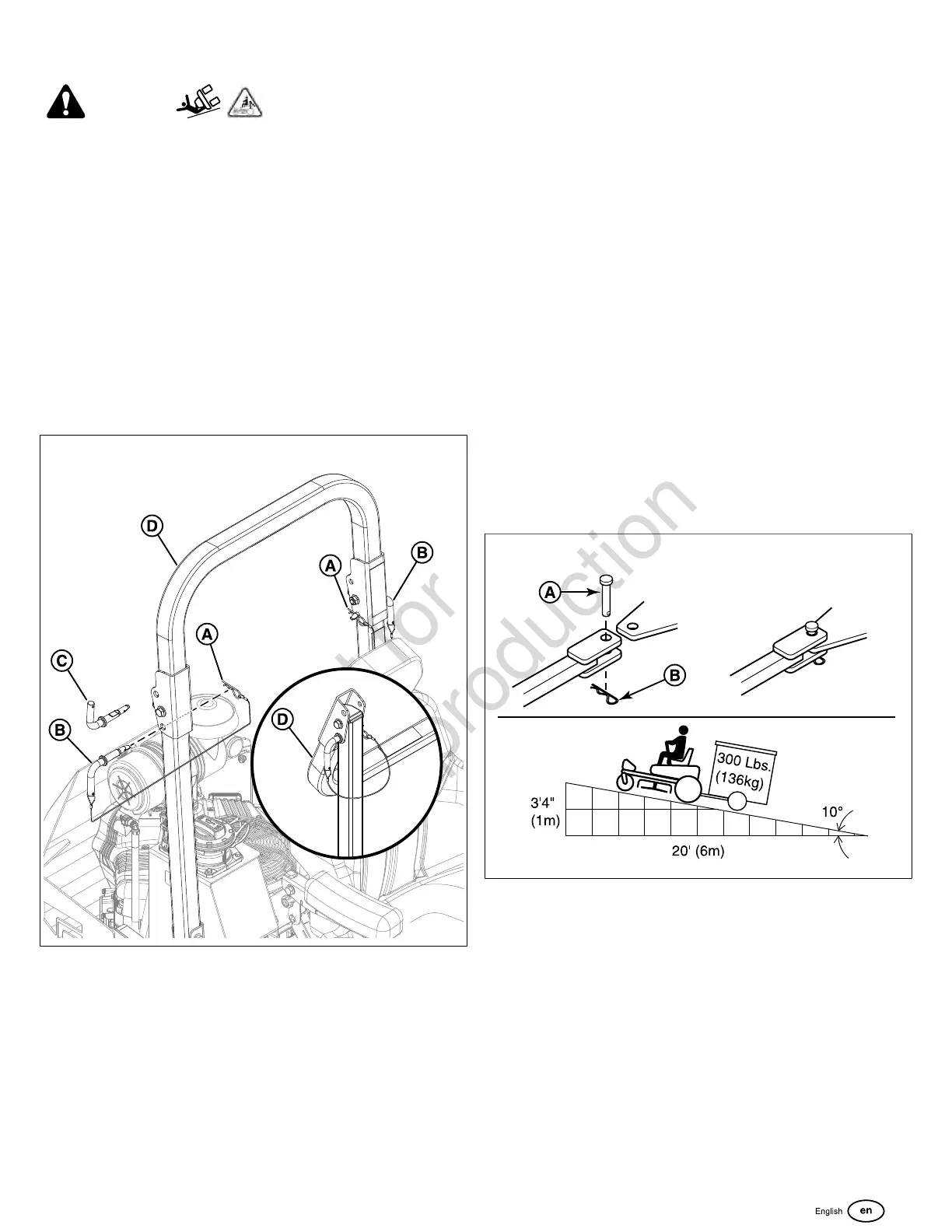

1. Pull the hair pin clips (A, Figure27) out of the retainer
pins (B).
27
2. Rotate the retainer pins so that the handle of the pin is
pointing up (C).
3. Remove the retainer pins. You may need to push or pull
on the top loop (D) of the roll bar in order to pull the pins
out of the roll bar.
4. Lower the roll bar.
5. With the handles of the retainer pins pointing up, install
the retainer pins into the roll bar and secure the roll bar
into the down position.
6. Rotate the retainer pins so that the handle of the pin is
pointing down and then install the hair pin clips into the
retainer pins.
To raise the roll bar:
1. Pull the hair pin clips (A, Figure27) out of the retainer
pins (B).
2. Rotate the retainer pins so that the handle of the pin is
pointing up (C).
3. Remove the retainer pins.
4. Raise the top loop (D) of the roll bar into position.
5. With the handles of the retainer pins pointing up, install
the retainer pins into the roll bar and secure the roll bar
into the raised position.
6. Rotate the retainer pins so that the handle of the pin is
pointing down and then install the hair pin clips into the
retainer pins.
Attaching a Trailer
The maximum weight of a towed trailer should be less than
300 lbs (138kg). Secure the trailer with an appropriately sized
clevis pin (A, Figure 28) and clip (B).
28
Excessive towed loads can cause loss of traction and loss of
control on slopes. Reduce towed weight when operating on
slopes. The surface being driven on greatly impacts traction
and stability. Wet or slippery surfaces can greatly reduce
traction and the ability to stop or turn. Carefully evaluate
the surface conditions before operating the unit and trailer,
and never operate on slopes greater than 10°. See SLOPE
OPERATION and TOWED EQUIPMENT in the safety section
of this manual for additional safety information.
Storage
Temporary Storage (30 Days or Less)
Remember, the fuel tank will still contain some fuel, so never
store the unit indoors or in any other area where fuel vapor
could travel to any ignition source. Fuel vapor is also toxic
