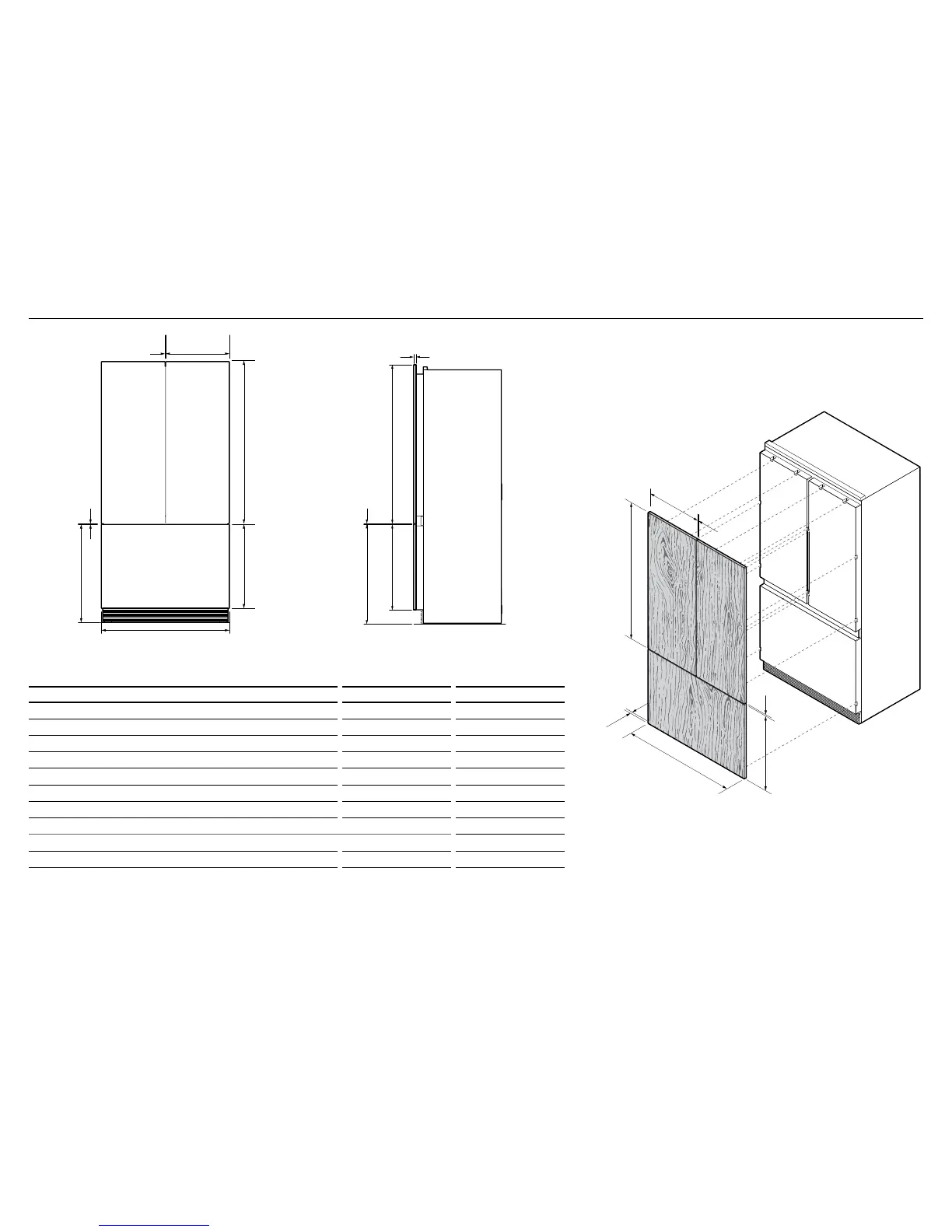

5 DOOR PANEL DIMENSIONS
ISO VIEW
H
F
D
g
A
B
PROFILE VIEW
D
g
A
E
C
h
STAINLESS STEEL CUSTOM
DOOR PANEL DIMENSIONS inches (mm) inches (mm)
A
Height of each top door panel 44 7/32” (1123) 44 7/32” (1123)
B
Width of each top door panel 173/4” (451) 173/4” (451)
C
Gap between top door panels 5/32” (4) 5/32” (4)
D
Height of bottom drawer panel 23 15/32” (596) 23 15/32” (596)
E
Height from bottom of product to top of bottom drawerpanel 2715/32” (698) 2715/32” (698)
F
Width of bottom drawer panel 35 21/32” (906) 35 21/32” (906)
G
Gap between top door panels and bottom drawer panel 5/32” (4) 5/32” (4)
h
Depth of door panel (excluding handle) 3/4” (19) 5/8” – 3/4” (16 – 19)
Maximum weight of each top door panel
(with handle) 22 lbs (10kg) 22 lbs (10kg)
Maximum weight of bottom drawer panel
(with handle) 241/4 lbs (11kg) 241/4 lbs (11kg)
Note:

Optional Fisher & Paykel Stainless steel front panels. Model no. RD3672 (non-Water dispensing model) andmodelno.RD3672U (Ice&Water model).

Custom door panels to be manufactured and fitted by cabinetmaker min. 5/8” (16mm) – max. 3/4” (19mm) thickness.

Door handle kit is available as an optional accessory.
Custom door panels can be only be used for non-
Water dispensing models.
ISO VIEW
H
F
D
g
A
B
PROFILE VIEW
D
g
A
E
C
h
f
e
g
d
c b
A
ISO VIEW
PROFILE VIEWFRONT VIEW
