10

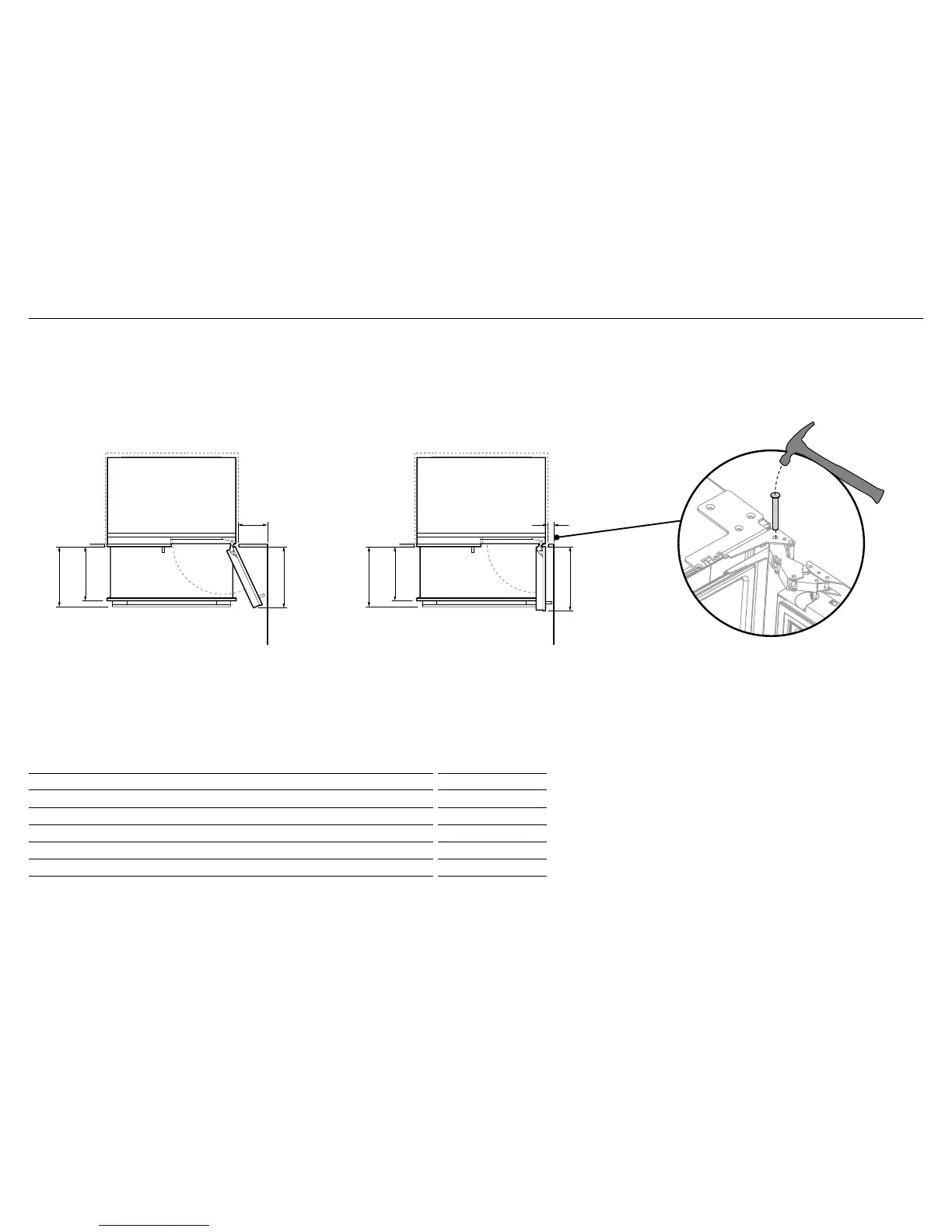

90° DOOR OPENING115° DOOR OPENING
[FULL ROTATION]
A
B
C
D
B
C
A
E
Wall Wall
90° DOOR OPENING115° DOOR OPENING
(FULL ROTATION)
For 90° door swing a hinge limiting pin is supplied with your
refrigerator. This pin fits in the boreholes of the top hinge
(refertoZ).
WARNING!
Before openining the doors, ensure that the appliance is stable.
Follow the correct instructions to avoid risks that can cause
serious injury or death.
1
Open door to 90°.
2
Align the hinge limiting pin vertically with the bore hole.
3
Use a hammer to drive the pin through the bore hole.
7 DOOR OPENING ROTATION
DOOR CLEARANCE DIMENSIONS inches (mm)
A
Depth of door (widest opening) measured from front of door 175/16” (440)
B
Depth of drawer (open) measured from front of drawer, including handle 153/4” (400)
C
Depth of drawer (open) measured from front of drawer, excluding handle 14 3/16” (360)
D
Minimum door clearance* to adjacent wall (115° – full internal access) 1113/16” (300)
E
Minimum door clearance* to adjacent wall (90° – reduced internal access) 313/16” (100)
* Measured from front cabinetry edge.
90° DOOR OPENING115° DOOR OPENING
[FULL ROTATION]
A
B
C
D
B
C
A
E
