8 ELECTRICAL AND PLUMBING
ELECTRICAL SPECIFICATIONS
Supply 115VAC, 60Hz
Service 10 amp circuit
PLUMBING SPECIFICATIONS
Supply 1/4” (6mm) hose or copper tubing*
Pressure min. 22psi (150kPa)
max. 120psi (827kPa) @ 68°F (20°C)
Note:

Electrical connection can be located in an adjacent cabinet to either side of the fridge or above the fridge cavity.

We recommend to use an isolating switch that is easily accessible to the user after the refrigerator is installed.
!
Do not locate water or electricity in this area, keep clear of connections.
!
CAUTION: Central area can only fit electrical plug if it is placed within a recessed cavity.
* Water fittings kit – The standard refrigerator does not include water fittings. Standard Fisher & Paykel water fittings
kit are available (part number: 841301). These parts need to be purchased separately by the customer andcomply
with local regulations.

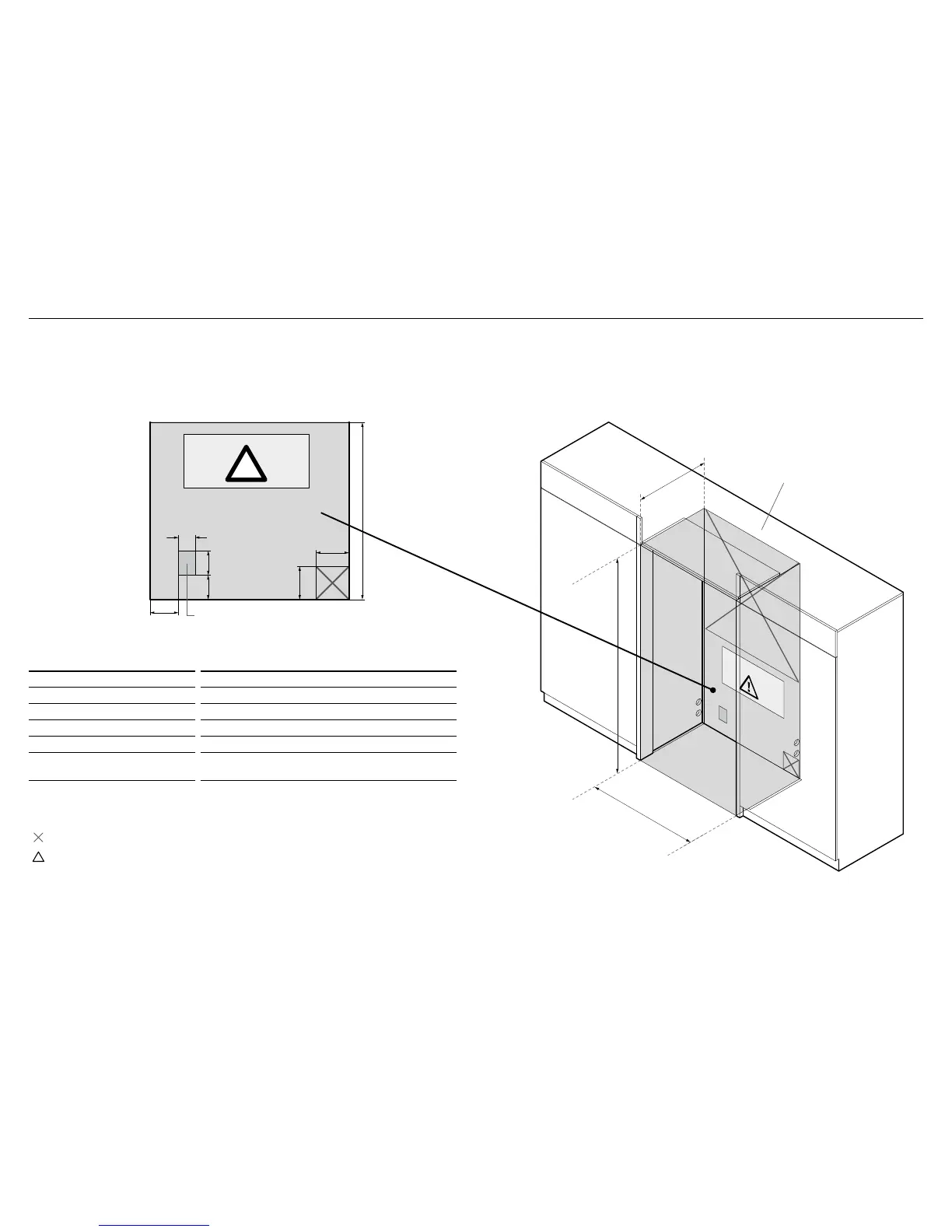

A
C
B
!
Alternative electrical connection location
Floor
529/32”
(150mm)
411/32”
(110mm)
215/16”
(75mm)
53/32”
(129mm)
529/32”
(150mm)
311/2”
(800mm)
411/32”
(110mm)
Left side
of cavity
!
Electrical
Plumbing
Electrical
Plumbing
Recommended area above
cavity for connections
WARNING!
Electrical shock hazard. Assume all parts are live.
Disconnect supply before servicing and installation.
