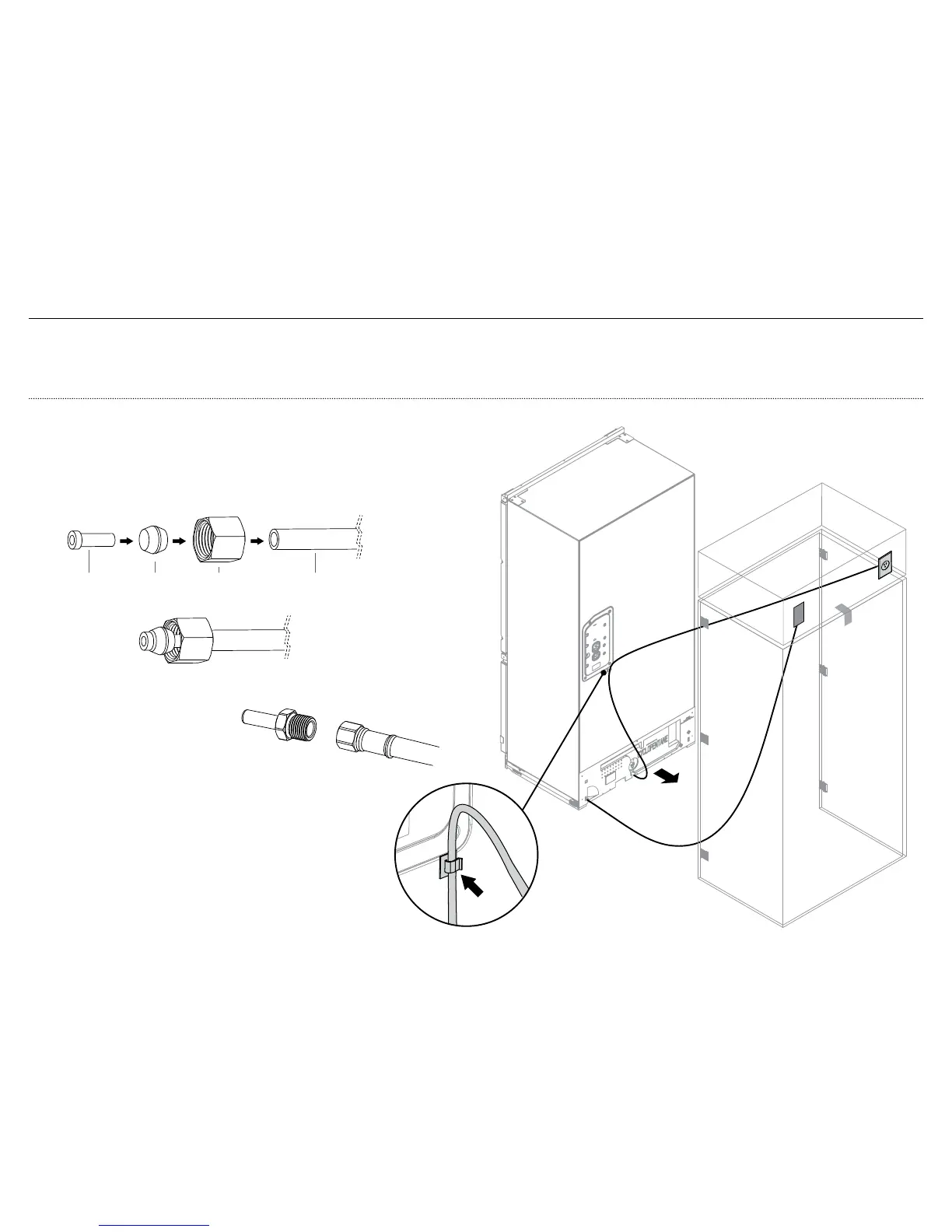

!2 CONNECT TO WATER AND ELECTRICAL SUPPLY
4
Move the refrigerator in front of the cabinetry close enough to allow access behind
for power and water connections.
At the back of the refrigerator, cut the water tube to a suitable length for connecting
to the water outlet. Ensure there is enough tubing to pull the refrigerator out for
service, if required.
5
Assemble the following water fittings onto the other end of the water tube.
6
Fasten the faucet connection to the cold water supply. Take care not
to over-tighten the faucet connection. Turn isolating faucet on and
check that all connections are dry and free of drips.
7
Connecting power
Attach the power cord clip to the back of your refrigerator
Connect the refrigerator to the electrical supply (115VAC, 60Hz
with thefitted plug and lead, and turn on. Ensure the refrigerator
isconnected to its own isolating switch.
Ensure excess power cord length is secured onto the clip (D).
When pushing the refrigerator into position, take care not to roll
over ordamage the power cord and/or water tubing.
D
Final water tube connection
Insert tube Compression
sleeve
Compression
nut
Water tube
IMPORTANT!
Ensure water tubing is routed away from any sharp objects, sharp corners, and not in a location where it can be kinked or squashed.
Beware of kinking the tube as this will stop water flow.
Ensure a firm contact is observed as the refrigerator engages the anti-tip bracket, 23/8” min. (60mm) overlap.
NOTE:
If using a braided water line hose (not
supplied), connect an adaptor to one
end of the hose before inserting into
the PRV.
To Next Page
