WARNING!
Be careful when working with the refrigerator outside of the finished enclosure.
Ensure that the refrigerator is secured to prevent tipping forward.
Tippingofrefrigerator can lead to serious injury or death.

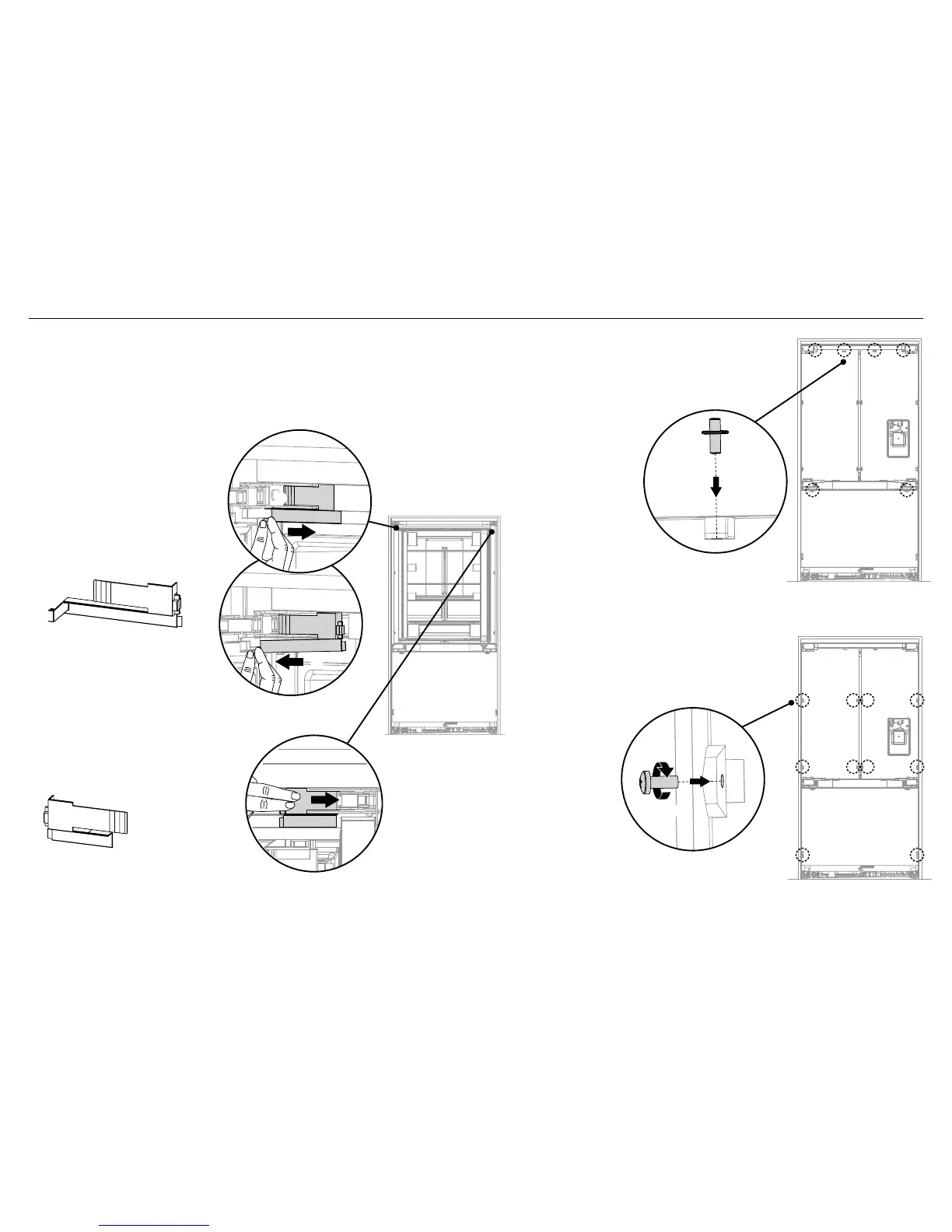

!1 REMOVE HINGE END CAPS
150
C
180
L
O
P
1
Open the refrigerator French doors carefully
and remove the left hinge end cap.
Hold onto the corner of the end cap,
firmlypush to the right to disengage
securing hook and pull down (A).
2
Pull cap gently towards the left hinge
to remove (B).
Reserve end hinge cap for later
installation.
3
Remove the right hinge end cap.
Pressonthe center of the cap and
pushtowards the right hinge to remove.
Reserve end hinge cap for later installation.
150
C
180
L
O
P
4
Secure M8 studs into the refrigerator doors,
ensure the open end faces the top and the
studs go all the way in.
Repeat this process for all refrigerator doors.
5
Loosely screw (1–2 turns) M5x10 pan head
Phillips screws into doors.
Repeat this process for all refrigerator doors.
150
C
180
L
O
P
A
B
1 – 2 turns
