FLEX-6000 Signature Series – FLEX-6000 Hardware Reference Manual
Page 31 of 48
Copyright 2016 FlexRadio Systems. All Rights Reserved.

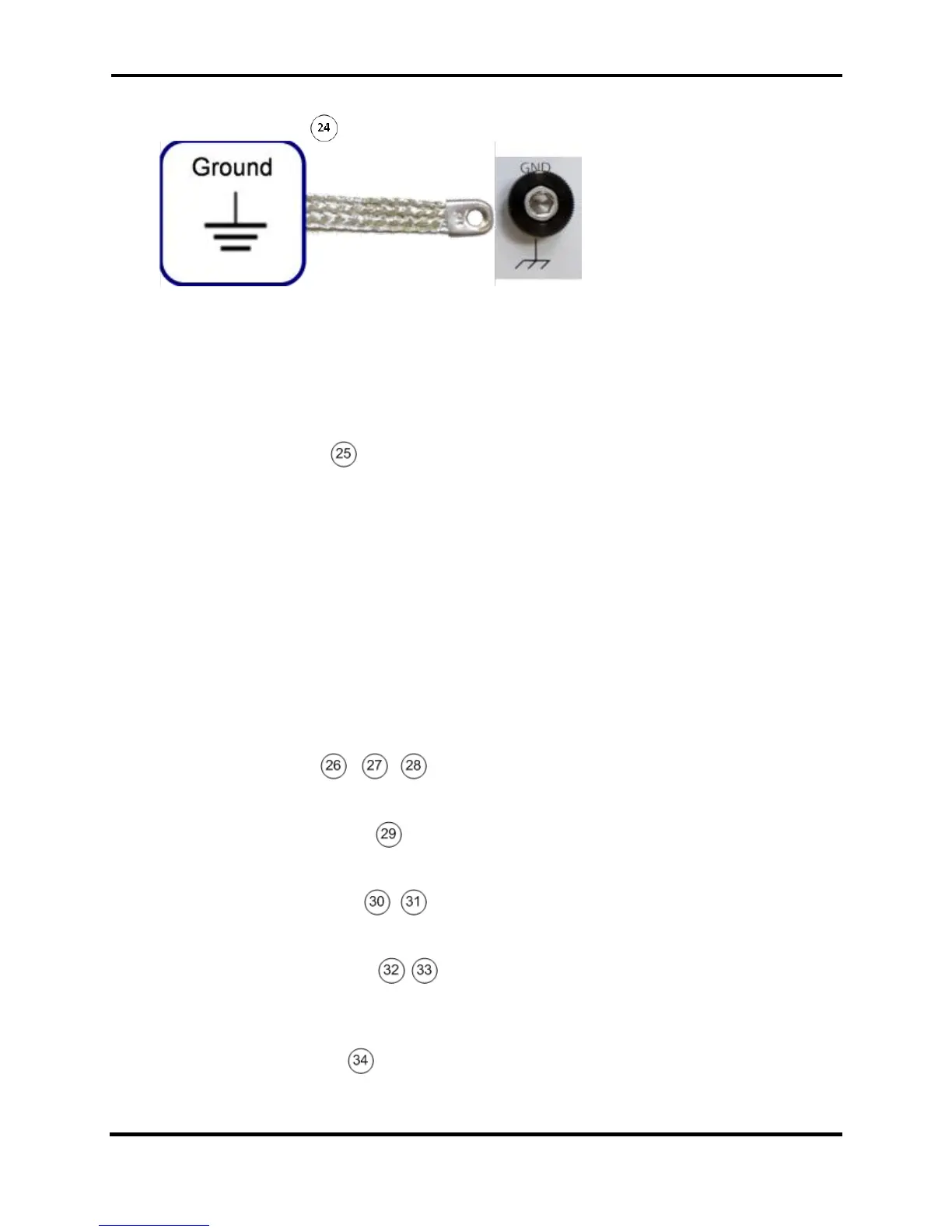

7.21 CHASSIS GROUND
This is a thumbscrew for attaching an earth ground to the chassis of the radio. Grounding
is the most important safety enhancement you can make to your shack. Always ground the
FLEX-6000 to your station RF ground using high quality wiring with the length being as short
as possible. Braided wire is considered the best for ground applications. Your station
ground should be a common point where all grounds come together. You will likely be
using a PC and a DC power source so be sure to ground these devices together as well.
7.22 AC POWER INPUT
AC power input connection at 100 – 240V, 50 – 60 Hz. 3 Amp fused. Power cord
provided. FLEX-6700R only.
! – CAUTION: DOUBLE POLE/NEUTRAL FUSING! - FUSES LOCATED IN
POWER ENTRY MODULE. DISCONNECT THE UNIT FROM THE POWER
OUTLET AND REMOVE THE POWER CORD FROM THE UNIT PRIOR TO
MAINTENANCE AND SERVICING.
(IN DENMARK: “APPARATETS STIKPROP SKAL TILSLUTTES EN
STIKKONTAKT MED JORD, SOM GIVER FORBINDELSE TIL
STIKPROPPENS JORD.”)
7.23 OUTPUTS [1, 2, 3]
Open drain digital outputs. Possible future product feature - not currently enabled.
7.24 NO CONNECTION (NC)
This port is not used on the FLEX-6700R.
7.25 DIGITAL INPUTS [1, 2]
Digital inputs @ 3.3v logic. Future product feature. Not currently enabled.
7.26 ANTENNA INPUTS [1, 2]
Antenna connections: 50 Ohm input. Refer to SmartSDR for Windows documentation for
explanation on how to select which port is active.
7.27 ATTENTION LABEL
“Warning: All input/output connections, including front panel I/O connections, may be
static sensitive.”
