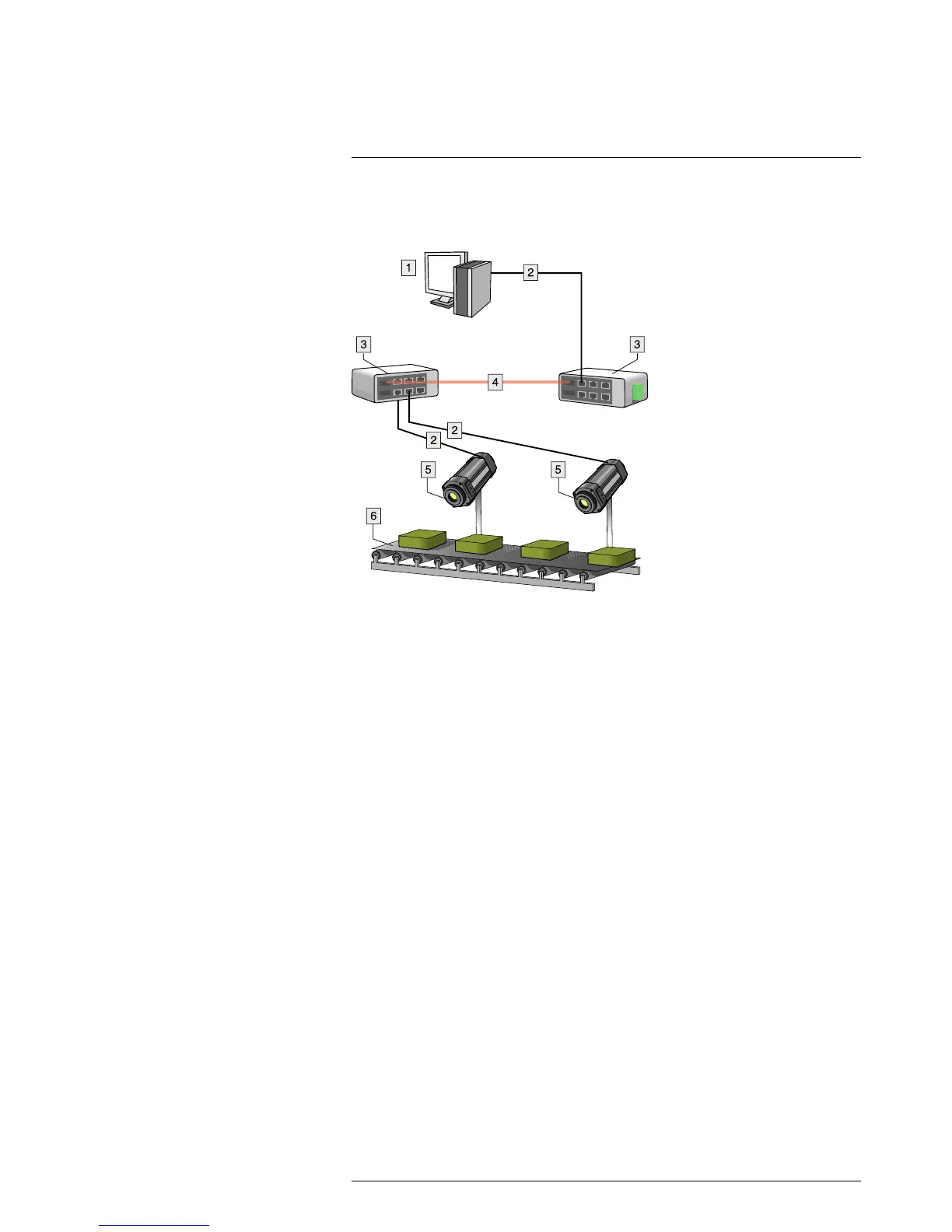

Example
sy
stem
ov
er
vie
ws
10
10.1
FLIR
A3xx
series
10.1.1
Figure
10.1.2
Explanation
1.
Computer
.
2.
CA
T
-6
Ethernet
cable
with
RJ45
connectors.
3.
Industrial
Ethernet
switches
with
fiber-optic
ports.
4.
Fiber-optic
cable.
5.
FLIR
A3xx
cameras.
6.
Industrial
process
to
be
monitored,
e.g.,
items
on
a
conve
yor
belt.
#T559498;
r
.22370/22370;
en-US
18
25
27
Table of Contents
Default Chapter
5
Table of Contents
5
1 Legal Disclaimer
9
Usage Statistics
9
Changes to Registry
9
Government Regulations
9
Copyright
9
Quality Assurance
10
Patents
10
EULA Terms
10
2 Safety Information
12
3 Notice to User
13
User-To-User Forums
13
Calibration
13
Accuracy
13
Disposal of Electronic Waste
13
Training
13
Documentation Updates
13
Important Note about this Manual
13
4 Customer Help
14
General
14
Submitting a Question
14
Downloads
15
5 List of Accessories and Services
16
6 Installation
19
General Information
19
Explanation
19
Default Installation Paths
19
System Requirements
19
Operating System
19
Hardware
19
Software
19
More Information
19
Installation
20
General
20
Procedure
20
7 Mechanical Installation
21
Mounting Interfaces
21
Notes on Permanent Installation
21
Vibrations
21
Further Information
21
Cable Strain Relief
21
8 Mounting and Removing Lenses
23
Mounting an Additional Infrared Lens
23
Procedure
23
Removing an Additional Infrared Lens
23
9 Connectors, Controls, and Indicators
24
FLIR A3Xx Series
24
Explanation
24
FLIR A3Xx Sc Series
24
10 Example System Overviews
26
FLIR A3Xx Series
26
Explanation
26
Figure
26
Explanation
27
Figure
27
Explanation
28
Figure
28
FLIR A3Xx Sc Series
29
Explanation
29
Figure
29
11 Temperature Screening
30
Applicability
30
Description of the Function
30
Procedure
30
12 Network Troubleshooting
32
13 Technical Data
33
Online Field-Of-View Calculator
33
Note about Technical Data
33
Flir A300
34
FLIR A300 (9 Hz)
38
FLIR A305Sc
42
Flir A310
45
FLIR A310 (9 Hz)
49
Flir A315
53
FLIR A315 (9 Hz)
56
FLIR A320 Tempscreen
59
FLIR A320 Tempscreen (9 Hz)
63
FLIR A325Sc
67
14 Mechanical Drawings
70
15 Pin Configurations
79
Pin Configuration for I/O Connector
79
Schematic Overview of the Digital I/O Ports
79
LED Indicators
79
16 Cleaning the Camera
80
Camera Housing, Cables, and Other Items
80
Liquids
80
Equipment
80
Procedure
80
Infrared Lens
80
Infrared Detector
80
General
80
Procedure
81
17 About FLIR Systems
82
More than Just an Infrared Camera
83
Sharing Our Knowledge
83
Supporting Our Customers
83
A few Images from Our Facilities
84
18 Glossary
85
19 Thermographic Measurement Techniques
88
Introduction
88
Emissivity
88
Finding the Emissivity of a Sample
88
Reflected Apparent Temperature
91
Distance
91
Relative Humidity
91
Other Parameters
91
20 History of Infrared Technology
93
21 Theory of Thermography
96
Introduction
96
The Electromagnetic Spectrum
96
Blackbody Radiation
96
Planck's Law
97
Wien's Displacement Law
98
Stefan-Boltzmann's Law
99
Non-Blackbody Emitters
100
Infrared Semi-Transparent Materials
102
22 The Measurement Formula
103
23 Emissivity Tables
107
References
107
Tables
107
Other manuals for FLIR A3 series
Installation Manual
108 pages
Getting Started Guide
74 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the FLIR A3 series and is the answer not in the manual?
Ask a question
FLIR A3 series Specifications
General
Brand
FLIR
Model
A3 series
Category
Thermographic Cameras
Language
English
Related product manuals
FLIR A6261
86 pages
FLIR A6701
86 pages
FLIR A6703
86 pages
FLIR A6751
86 pages
FLIR A6753
86 pages
FLIR A8581
86 pages
FLIR A6000 Series
86 pages
FLIR E6-XT
56 pages
FLIR SCOUT II
2 pages
FLIR EX Series
118 pages
FLIR ONE Series
79 pages
FLIR ThermaCAM P20
142 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
