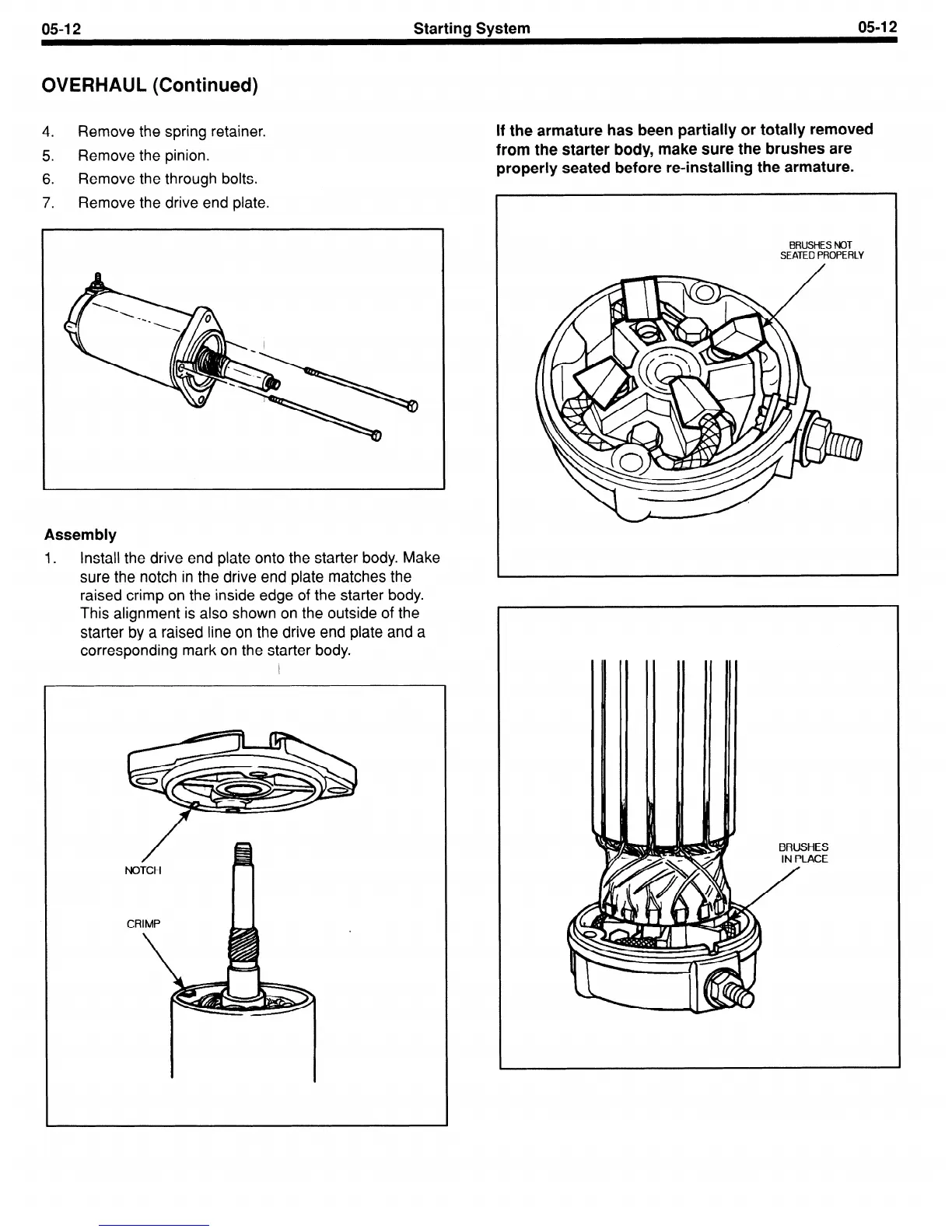

05-l 2
Starting System
05-I 2
OVERHAUL (Continued)
4.
Remove the spring retainer.
5.
Remove the pinion.
6.
Remove the through bolts.
7.
Remove the drive end plate.
Assembly
1.
Install the drive end plate onto the starter body. Make
sure the notch in the drive end plate matches the
raised crimp on the inside edge of the starter body.
This alignment is also shown on the outside of the
starter by a raised line on the drive end plate and a
corresponding mark on the starter body.
If the armature has been partially or totally removed
from the starter body, make sure the brushes are
properly seated before re-installing the armature.
BRUSHES NOT
SEATED PROPERLY
HES
ACE
