42

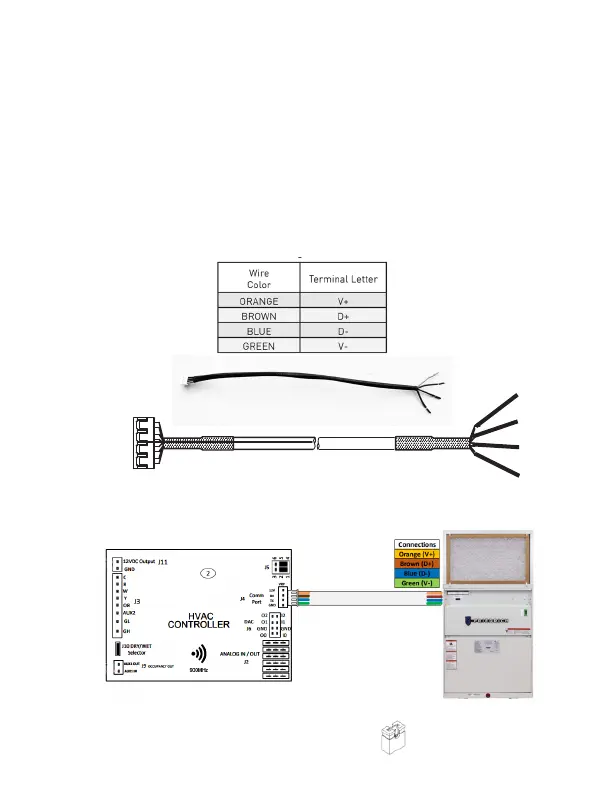

Installing the HVAC Controller in VRP Unit
➤ Insert two supplied jumpers* into function selection pins 1-2,
➤ and 4-5 of J5 of the wireless HVAC controller.
➤ Connect the other end of the harness into the four VRP terminals.
➤ Mount the wireless controller on the top of the VRP unit for better signal
transmission (don’t install inside the unit).
➤ The connections are color coded as shown in the table below:
VRP: Unit Specific Installations
J4 Side VRP Side
➤ * a jumper has the following appearance
