Fujitsu B22T-7 LED proGREEN User Manual

Getting started
Connecting the device
Please observe the s afety information in "Important notes", Page 7.
CE conformance and optimum picture quality a re guaranteed only if
you use the data cables supplied.
► Switch off the monitor and the computer.
► Disconnect the power plug
from the computer.
Connecting cables to the monitor
The data cables supplie
d have tw o 15-p in D-SUB conne ctors or two 24-pin DVI
connectors for connect
ion to the monitor and to the computer.
Informationonthecom
puter connections an d interfaces is contained in the
operating manual fo r
the compute r.
2
4
56
89
3
7
1
9

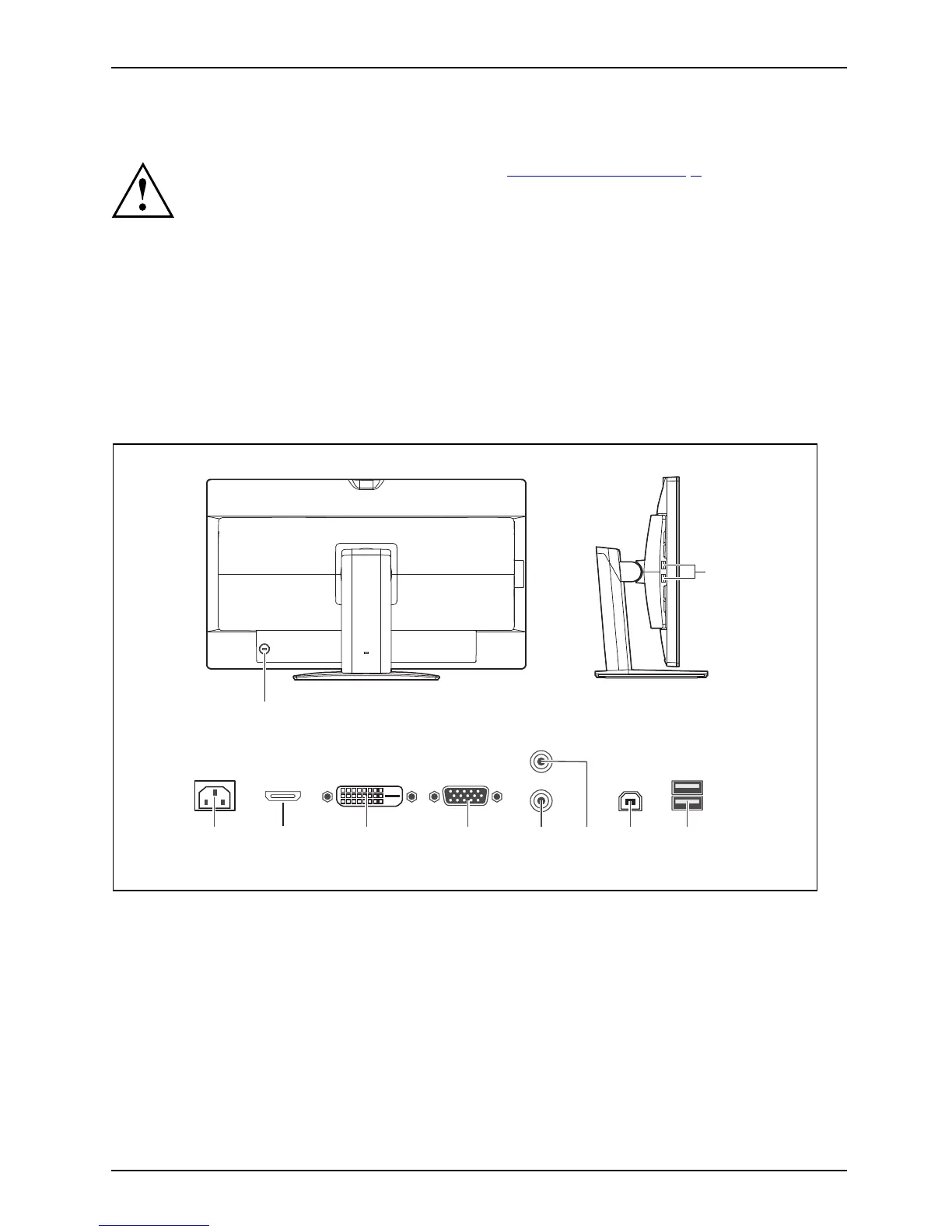

1=Securi
ty slot for "Kensington Lock"
2 = Power connector
3=HDMIs
ocket
4 = DVI-D socket (DVI)
5=D-SUB
socket (VG A)
6 = AUDIO-
IN socket
7 = AUDIO-OUT s oc ket
8=USBIN
(Downstream)
9 = USB OUT (Upstream)
► Select the appropriate data cable for your computer.
17

Fujitsu B22T-7 LED proGREEN Specifications

General

3D	No
Panel type	TN
Pixel pitch	0.248 x 0.248 mm
Aspect ratio	16:9
Display surface	Matt
Display diagonal	21.5 \
Display technology	LED
Vertical scan range	56 - 76 Hz
Horizontal scan range	30 - 82 kHz
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720i, 720p
Viewable size, vertical	268 mm
Viewing angle, vertical	170 °
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	476 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1366 x 768, 1440 x 900, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
On/off switch	-
Mean time between failures (MTBF)	70000 h
HDCP	Yes
USB hub version	2.0
DisplayPorts quantity	0
Headphone connectivity	3.5 mm
USB Type-A downstream ports quantity	4
RMS rated power	3 W
Number of speakers	2
Pivot angle	0 - 90 °
LED indicators	Power
Tilt angle range	-5 - 35 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, NOR, POL, POR, RUS, SWE, TUR
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.2 W
Power consumption (standby)	- W
Power consumption (typical)	22 W
Power consumption (PowerSave)	0.3 W
Certification	CE 2004/108/EEC, EN 60950, RoHS, WEEE, IT-Eco
Product color	Black
Operating temperature (T-T)	5 - 35 °C
Package weight	7000 g
Cables included	AC, Audio (3.5mm), DVI, USB, VGA
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight and Dimensions

Depth (with stand)	200 mm
Height (with stand)	339 mm
Weight (with stand)	5800 g
Depth (without stand)	61 mm
Width (without stand)	516 mm
Height (without stand)	320 mm
Weight (without stand)	3100 g
