Removing the Power Supply Unit
To remove the Power Supply Unit, do as follows:
1. Remove the system unit cover (see page 1-6)
2. Disconnect power cables from the System board and other devices.
3. Remove 4 screws that holds the Power Supply Unit from behind of the System unit (A).
4. Slide about 30mm the Power Supply Unit towards to the front panel of the System unit (B).
5. Lift the Power Supply Unit and take it off.
B
A
A
A
A

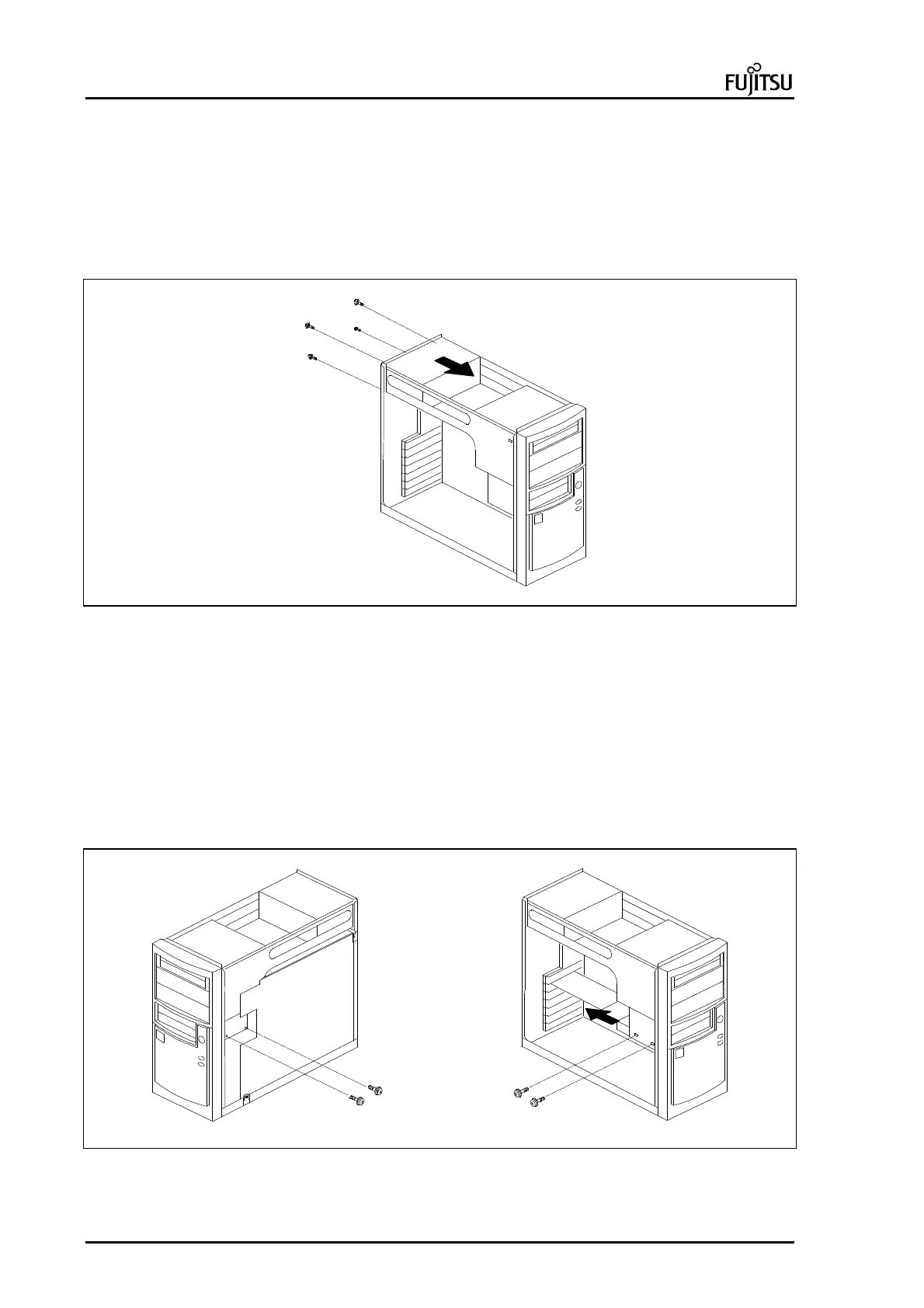

Picture 9 : Removing the Power Supply unit
Removing and installing the Hard Disk drive
If you have installed a CD-ROM, a Hard Disk or replaced an existing floppy drive, check the parameters in the
SETUP.
To remove the Hard Disk drive, do as follows:
1. Open the system unit cover (see page 1-6).
2. Disconnect the power and data cables from the devices attached to the mass memory carriage.
Disconnect data cables also from the System Board.
3. Open screws (A) that hold Hard Disk both side of the mass memory carriage.
4. Pull Hard Disk towards to rear of the system unit (B) and take it off.
A
A
A
A
B
PIcture 10 : Removing the Hard Disk drive
