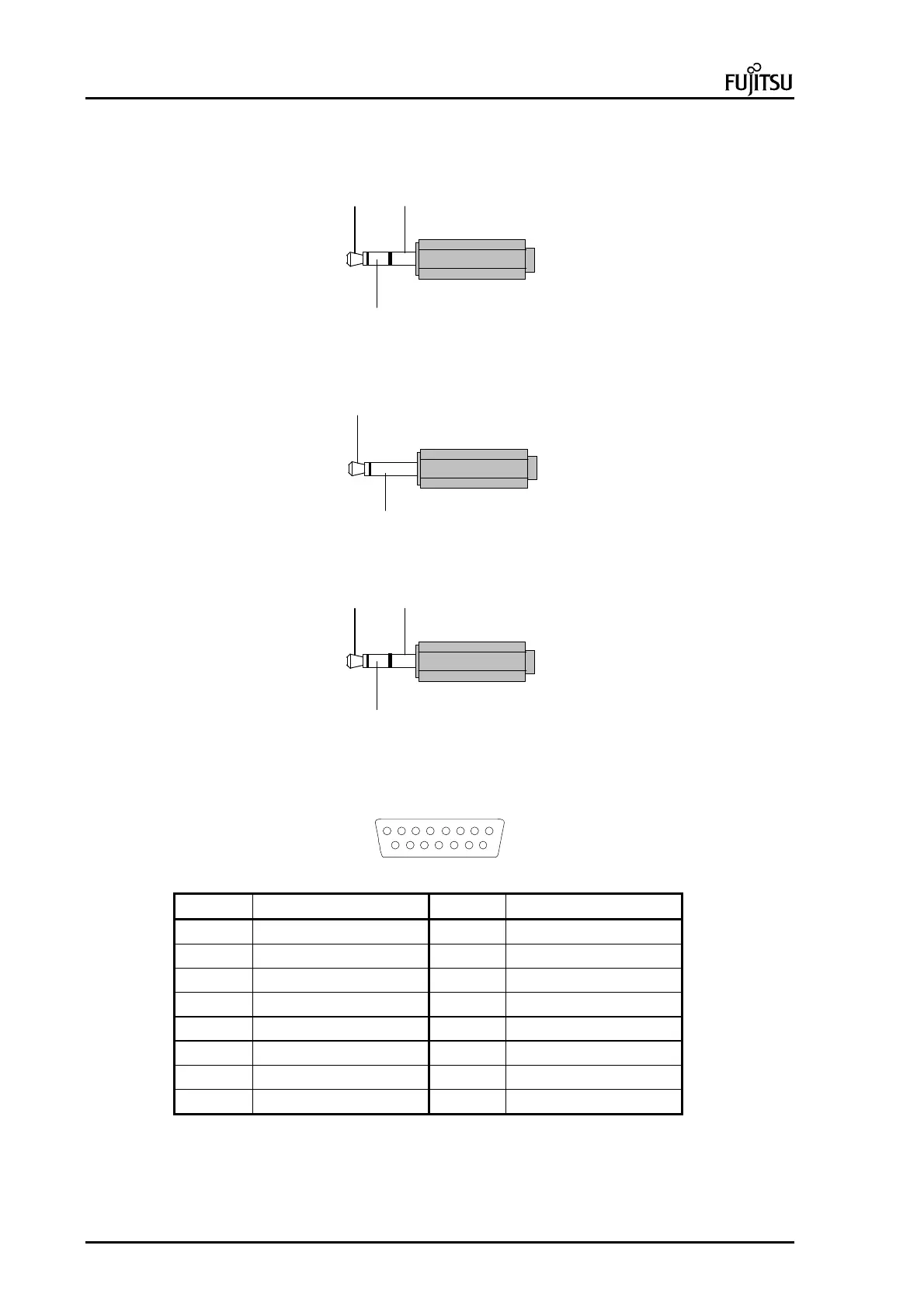

ErgoPro m664 PC Specialist's Handbook
Page 7-8 Edition 1 - Release 1 - March 1998
Audio connectors
Speaker type connector
Right
Left Ground
Microphone type connector (if not as speaker type connector)
Signal
Ground
Line-In type connector
Right
Left Ground
MIDI/Joystick connector in Creative Vibra 16XV adapter
1
8
9
15
PIN Signal PIN Signal
1
Vcc
9
Vcc
2
JBUT0
10
JBUT2
3
JSX1
11
JSX2
4
Ground
12
MIDI OUT
5
Ground
13
JSY2
6
JSY1
14
JBUT3
7
JBUT1
15
MIDI IN
8
Vcc
