Fujitsu ErgoPro m664 Series User Manual

PC Specialist's Handbook ErgoPro m664-series
Edition 1 - Release 1 - March 1998 Page 2-5
Recovery Mode (Force Flash Load procedure)
Recovery mode is for upgrading the BIOS or recovering BIOS data. To enable recovery mode remove
single jumper from configuration header. When this mode is enabled BIOS tries to recover or upgrade
BIOS from BIOS diskette in floppy drive.
BEEP codes indicates recovery/upgrade status:
- one beep: start of recovery/upgrade.
- two beeps: succesful recevery/upgrade.
- multiple beeps: failed recovery/upgrade.
Note: If recovery/upgrade BIOS diskette not in floppy drive BIOS runs POST test and displays message:
jumper is not properly installed.
To make changes become valid:
- Exit setup program
- Shut down computer and disconnect Main power from system unit.
- Change configuration jumper in normal mode
- Boot up the computer
System board front panel connectors
Fujitsu default connectors are represented
with pattern and typical colours are also
indicated
1
27
BLACKREDGREEN BLACK
Speaker
Reset
Power LED
HDD LED
INFRA RED
SLEEP
POWER
RED
BLACK
WHITE
ORANGE
BLACK
RED
BLACK
WHITE

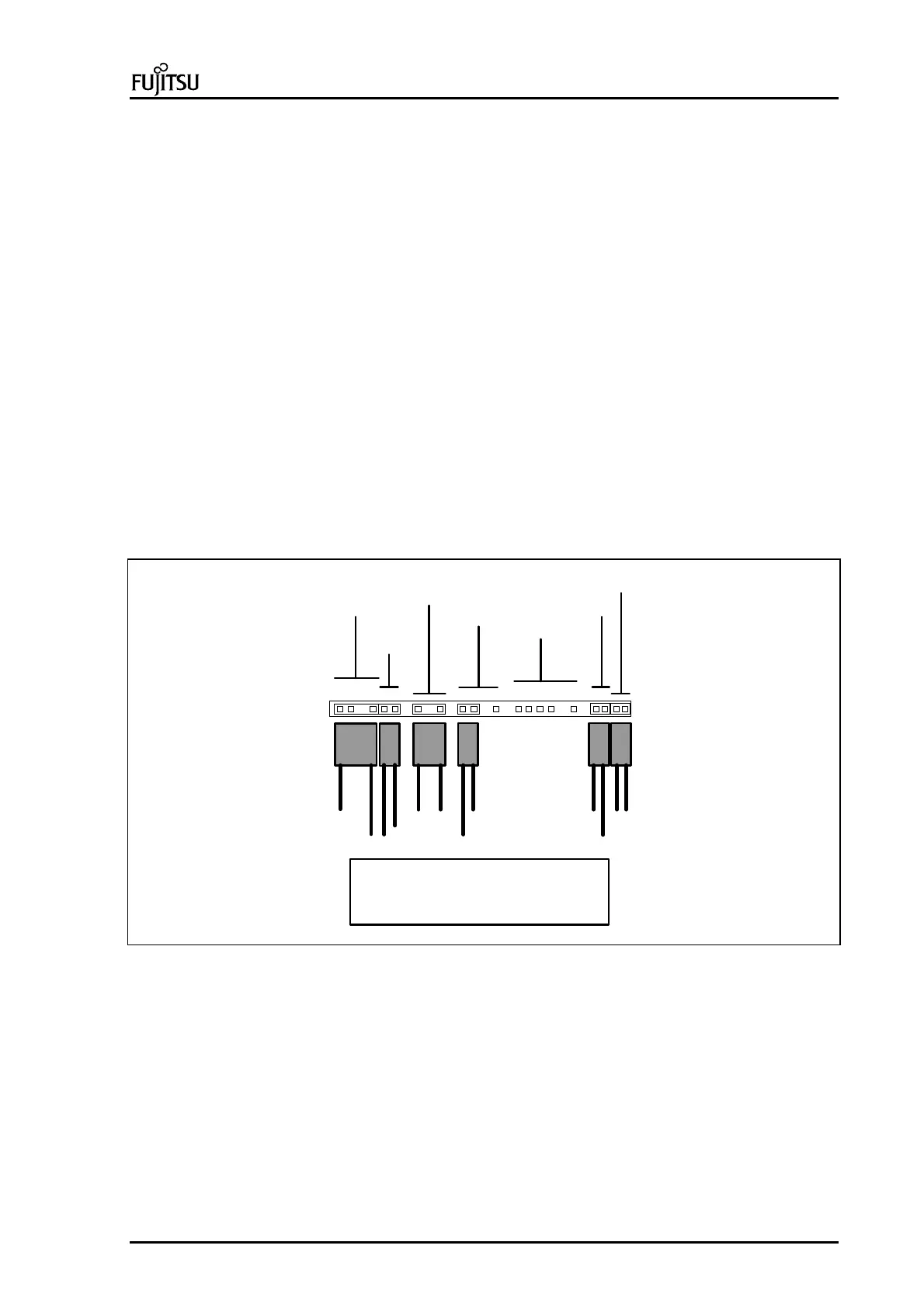

Picture 22 :Typical front panel connectors

Fujitsu ErgoPro m664 Series Specifications

General

Brand	Fujitsu
Model	ErgoPro m664 Series
Category	Desktop
Language	English
