Fujitsu PRIMERGY TX1320 M4 Upgrade And Maintenance Manual

TX1320 M4 Upgrade and Maintenance Manual 23
2 Before you start
Before you start any upgrade or maintenance task, proceed as follows:
Ê Carefully read the safety instructions in chapter "Important information" on
page 33.
Ê Make sure that all necessary manuals are available, see the documentation
overview in section "Documentation overview" on page 29. Print the PDF
files if required.
Ê Make yourself familiar with the procedure categories introduced in section
"Classification of procedures" on page 25.
Ê Ensure that all required tools are available according to section "Tools you
need at hand" on page 29.

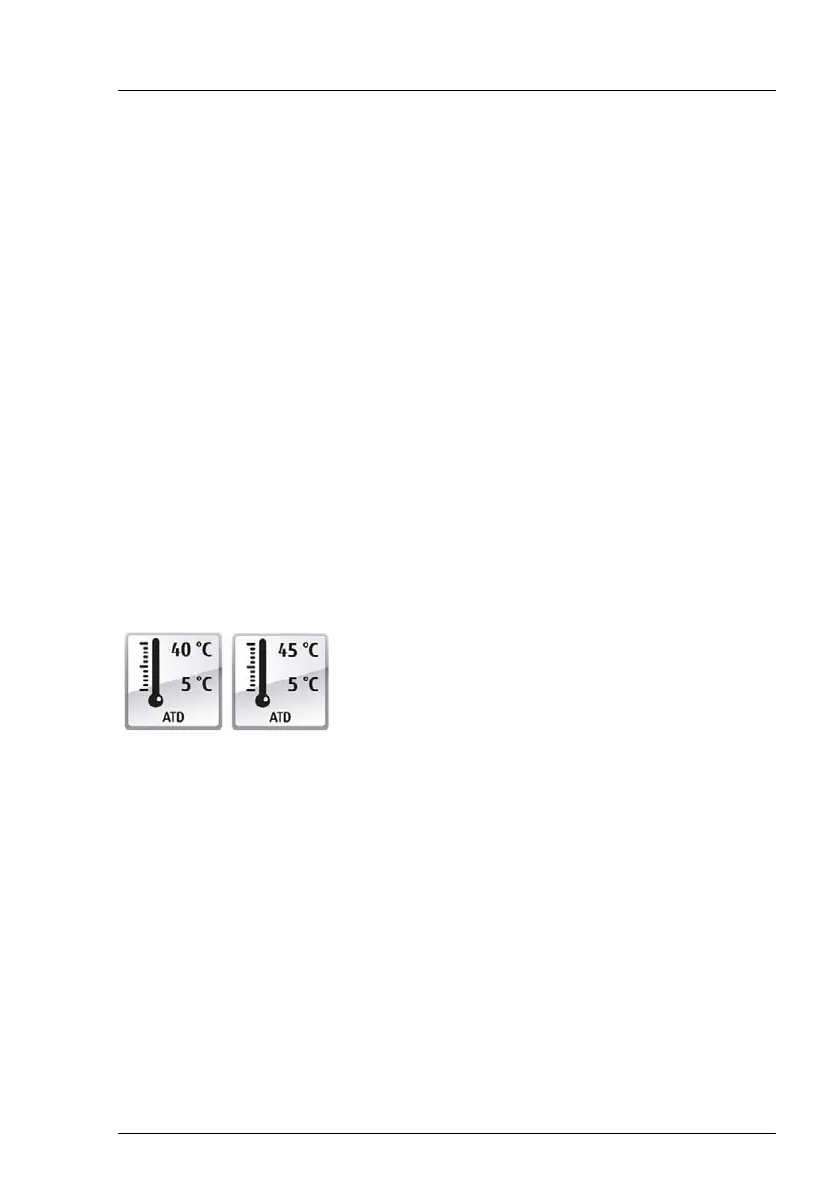

Advanced Thermal Design (ATD)
The ATD option allows you to operate the system with a wider temperature
range either of 5 °C to 40 °C or 5 °C to 45 °C, depending on your system and
configuration.
V CAUTION
In a system that is configured with ATD, only certain components which
support the respectively increased higher operating temperature range
may be installed and used. For applicable restrictions, see the official
configurator tool.
Installing optional components
The operating manual of your server gives an introduction to server features
and provides an overview of available hardware options.
Use the Fujitsu ServerView Suite management software and the iRMC web
interface to prepare hardware expansions. ServerView Suite documentation is
available online at http://manuals.ts.fujitsu.com.
For Japan:
http://www.fujitsu.com/jp/products/computing/servers/primergy/manual/
This option can only be ordered from the
manufacturer and is indicated by the respective
logo on the identification rating plate.

Fujitsu PRIMERGY TX1320 M4 Specifications

General

Bus type	DMI3
Tjunction	100 °C
Scalability	1S
Processor cache	8 MB
Processor cores	4
Processor model	E-2124
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Processor codename	Coffee Lake
Execute Disable Bit	Yes
Processor frequency	3.3 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor boost frequency	4.3 GHz
Processor operating modes	64-bit
Embedded options available	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Design Power (TDP)	71 W
Number of processors installed	1
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory bandwidth supported by processor (max)	41.6 GB/s
Maximum internal memory supported by processor	128 GB
Chassis type	Tower
Product color	Black
HDD size	2.5 \
HDD interface	Serial ATA III, Serial Attached SCSI (SAS)
Optical drive type	DVD±RW
Total storage capacity	0 GB
Maximum storage capacity	- TB
Number of HDDs installed	0
Compatible operating systems	Microsoft Hyper-V Server 2016 Microsoft Windows Server 2016 Datacenter Microsoft Windows Server 2016 Standard Microsoft Windows Server 2016 Essentials Microsoft Windows Storage Server 2016 Standard Microsoft Hyper-V Server 2012 R2 Microsoft Windows Server 2012 R2 Datacenter Microsoft Windows Server 2012 R2 Standard Microsoft Windows Server 2012 R2 Essentials Microsoft Windows Server 2012 R2 Foundation Microsoft Windows Storage Server 2012 R2 Standard Microsoft Hyper-V Server 2012 Microsoft Windows Server 2012 Datacenter Microsoft Windows Server 2012 Standard Microsoft Windows Server 2012 Essentials Microsoft Windows Server 2012 Foundation VMware vSphere 6.5 VMware vSphere 6.0 SUSE Linux Enterprise Server 12 Red Hat Enterprise Linux 7 Univention Corporate Server 4
Internal memory	16 GB
Maximum internal memory	64 GB
LAN controller	Intel i210
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	3
Power supply	450 W
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 85 %
PCI Express slots version	3.0
PCI Express x4 (Gen 3.x) slots	2
On-board graphics card model	Not available
Processor ARK ID	134856
Intel Secure Key Technology version	1.00

Weight and Dimensions

Depth	399 mm
Width	98 mm
Height	340 mm
