The roller set consists of a brake roller and a pick roller.
Replace each roller in the following procedure.
1 Remove all documents from the ADF paper chute
(feeder).
2 Open the ADF.
For details, refer to "1.4 Opening/Closing the ADF" (page 17).

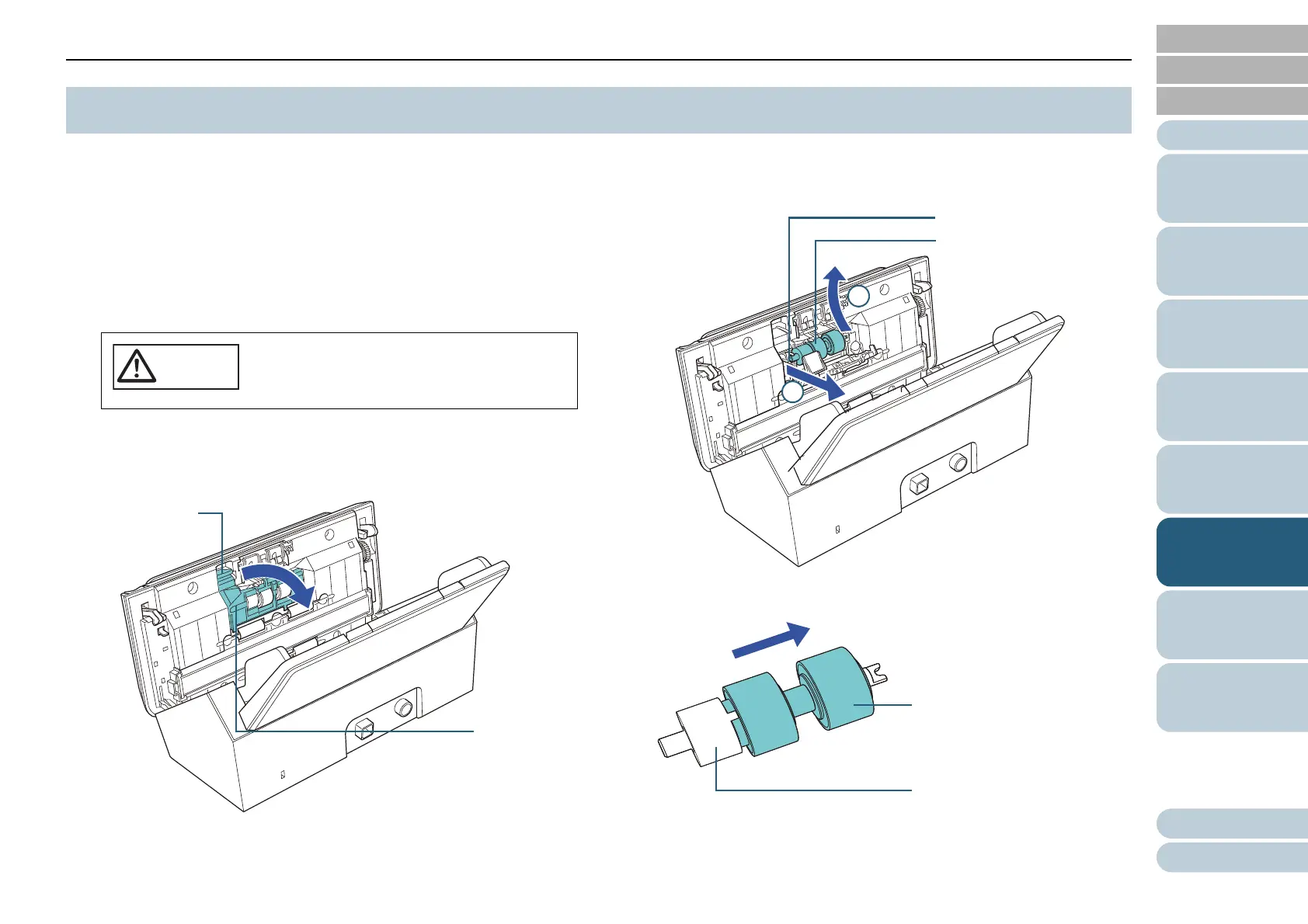

3 Remove the brake roller.
1 Press the cover bushing of the brake roller to open the cover in the
direction of the arrow.
2 Pull out the left side of the brake roller shaft, and then pull out the
right side of the shaft from the hole.
4 Remove the brake roller from its shaft.
6.2 Replacing the Roller Set
Be careful not to have your fingers caught
when the ADF closes.
CAUTION
Bushing
Cover
1
2
Brake roller shaft
Brake roller
Brake roller
Brake roller shaft
