1. RADAR OPERATION
1-55
1.31.7 Adjusting PI line length
You can adjust the length of the PI lines. This function is only available when 3
PI LINE in the PI LINE menu is set to “1”.
If not already displayed, you can show PI lines for which you wish to adjust the
length by referring to section 1.31.1.
1. Left-click the MENU box to open the menu.
2. Select 2 [MARK].
3. Select 4 [PI LINE].
4. Select 6 [TRUNC RANGE 1].
5. Select OFF or ON as appropriate. To adjust the front PI line, select ON.
6. Set the length of the first PI line between 0.000 – 24.000NM.
All PI lines beyond this mark will become hidden.
7. Select 7 [TRUNC RANGE 2].
8. Select OFF or ON as appropriate. To adjust the rear PI line, select ON.
9. Set the length of the rear PI line between 0.000 – 24.000NM.
All PI lines beyond this mark will become hidden.
10. To adjust other PI lines, activate the PI line you wish to adjust, then repeat
steps 1 to 9.
11. Push the right button twice to close the menu.

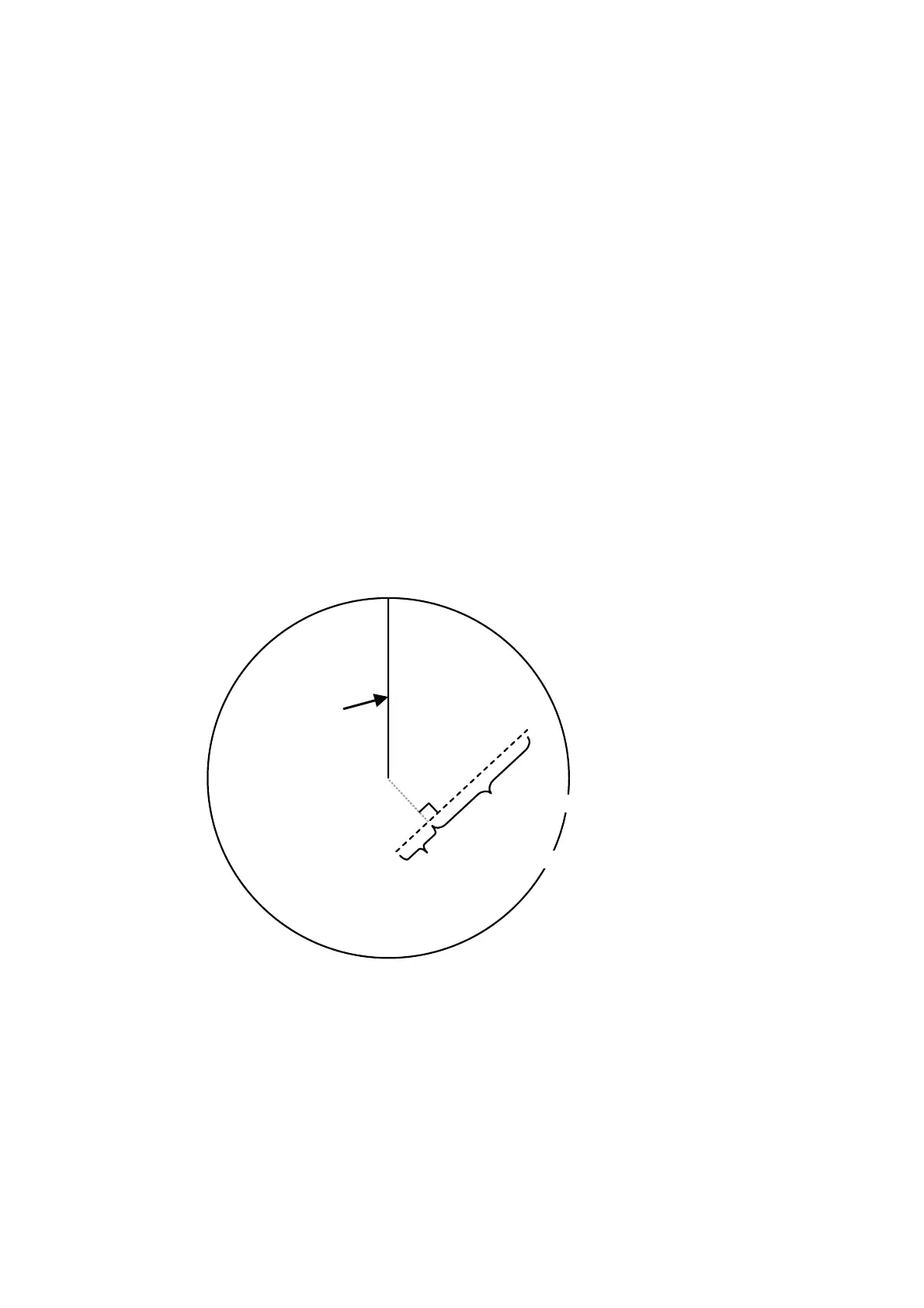

Heading Line
TRUNC RANGE 2
Length setting
TRUNC RANGE 1
Length setting
