Garmin G5 - G5 Interconnect Drawings; Figure 5-5 G5 Exploded View

Garmin G5 Electronic Flight Instrument Part 23 AML STC Maintenance Manual 190-01112-11
Rev. 7
Page 22 of 54

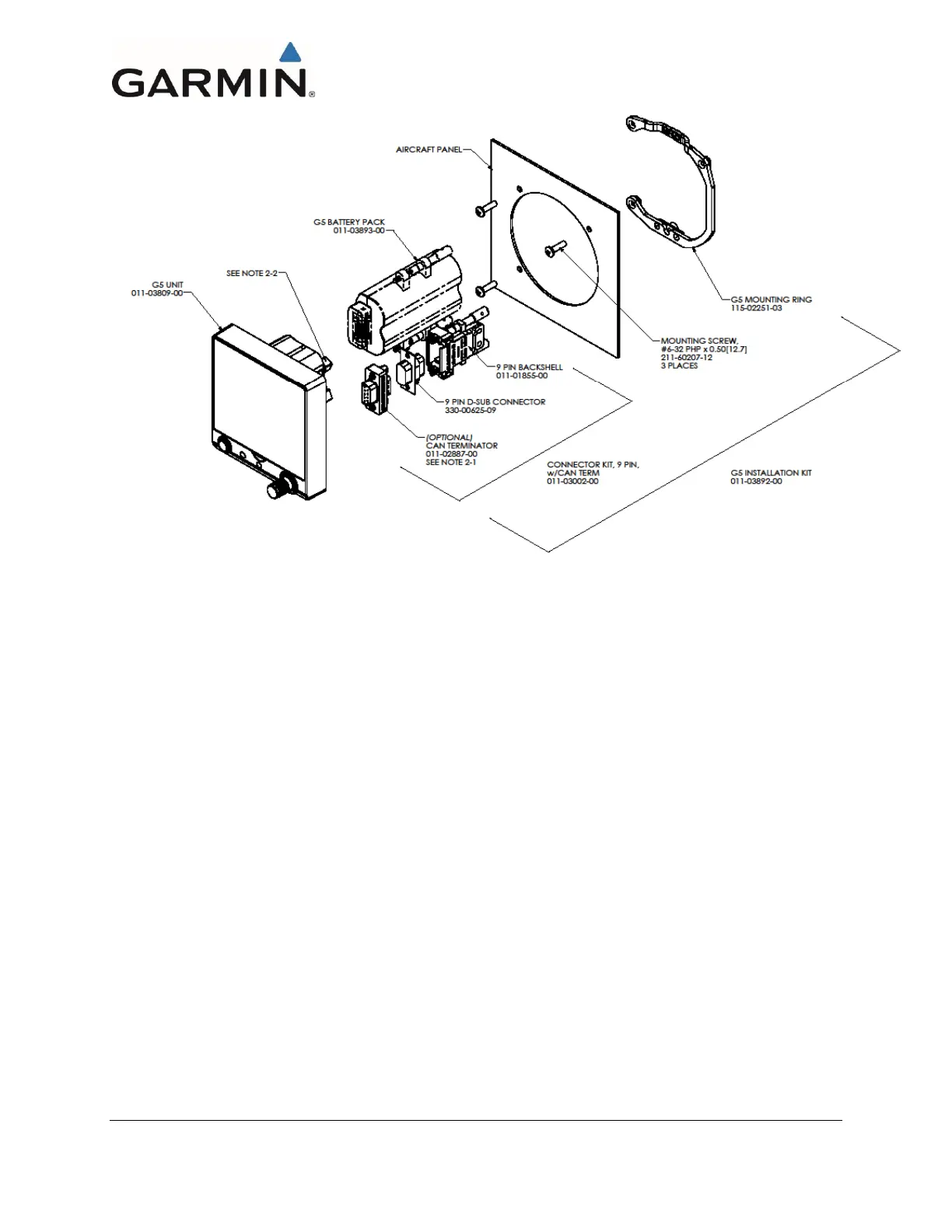

Figure 5-5 G5 Exploded View
5.3 G5 Interconnect Drawings
For G5 system interconnect drawings reference Garmin Document 190-01112-10.
5.3.1 Connector Layout
For G5 system connector layout reference Garmin Document 190-01112-10.
This area intentionally blank
