Installing the System
7
8. Install the antenna housing (included with the panel) by pushing it down into the top left hole
of the cabinet until it snaps into place (see Figure 3).
9. Install the circuit board into the cabinet, inserting the loop antenna loop up into the antenna
housing (see Figure 3), then secure the circuit board with the four mounting screws
(included).

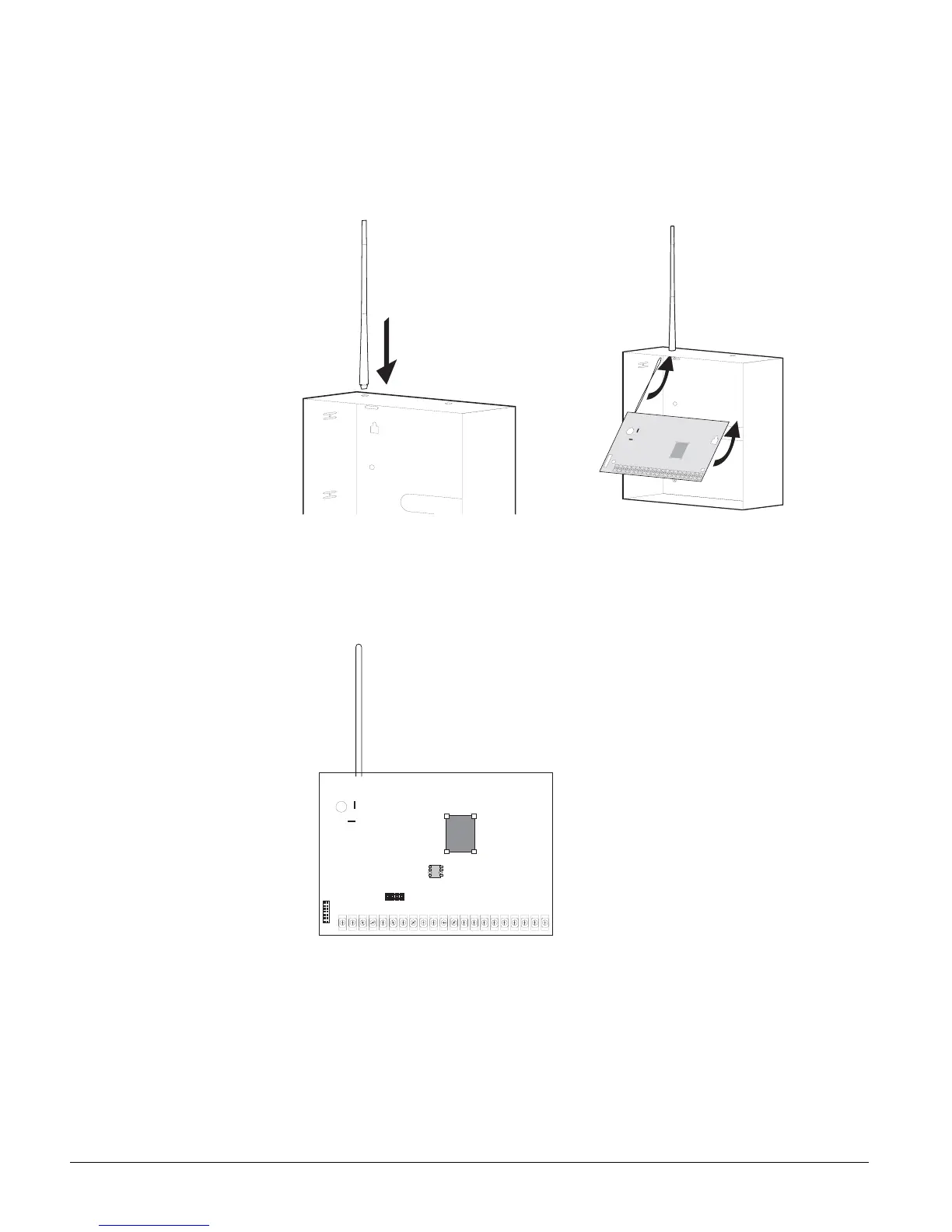

Figure 3. Installing the Antenna Housing and the Circuit Board
Identify Panel Components
Before installing devices and making wiring connections, familiarize yourself with the main
components of the panel. Figure 4 shows the main component locations on the circuit board.
Figure 4. Main Component Locations
Connecting the Panel to Earth Ground
For maximum protection from lightning strikes and transients, connect the lower-right circuit
board screw to earth ground as shown in Figure . Use 16-gauge, solid copper wire from an earth
grounded cold water pipe clamp to the panel.
6 0 8 0 6 G 3 2 D D S F
Antenna Housing
Insert Antenna Loop
Up Into Antenna Housing
Antenna Loop
Backup
Battery
Connections
Terminal Strip
EEPROM
Micro
Processor
SnapCard
Header
Programming
Touchpad
Header
Black
Red
