Programming the Panel
17
4. To permanently mount the transformer, unplug it and remove the existing screw securing the
AC outlet cover.
5. Hold the outlet cover in place and plug the transformer into the lower receptacle.
6. Use the screw supplied with the transformer to secure the transformer to the outlet cover.
Note
If touchpads don’t display
anything, immediately
unplug the transformer and
disconnect the backup bat-
tery. Refer to the “Trouble-
shooting” section.
Use extreme caution when securing the transformer to a metal outlet cover. You could
receive a serious shock if a metal outlet cover drops down onto the prongs of the plug
while you are securing the transformer and cover to the outlet box.
Programming
the Panel
This section describes how to program all settings found in programming mode. For on-site sys-
tem programming, an alphanumeric touchpad is required.
Entering Programming Mode
Enter programming mode on site from an alphanumeric touchpad using an installer/dealer code
(default = 4321). The system can be put into program mode only when it is disarmed.
¾
To enter programming mode using an alphanumeric touchpad connected to the panel
terminals:
1. Make sure the system is disarmed.
2. Press
8 + CODE + 0 + 0. The touchpad shows SYSTEM PROGRAMMING.
Note
If the programming touchpad
is connected before the
panel is powered up, it will
be added (learned) into
panel memory as a perma-
nent touchpad.
¾ To enter programming mode using a programming touchpad:
1. Connect the red, black, green, and white wires from the Programming Touchpad Cable (60-
791) to the power and bus wires on an alphanumeric touchpad while matching the wire colors
on each.
2. Make sure the system is powered up and disarmed.
3. Connect the plug on the cable onto the panel programming touchpad header (see Figure 20).

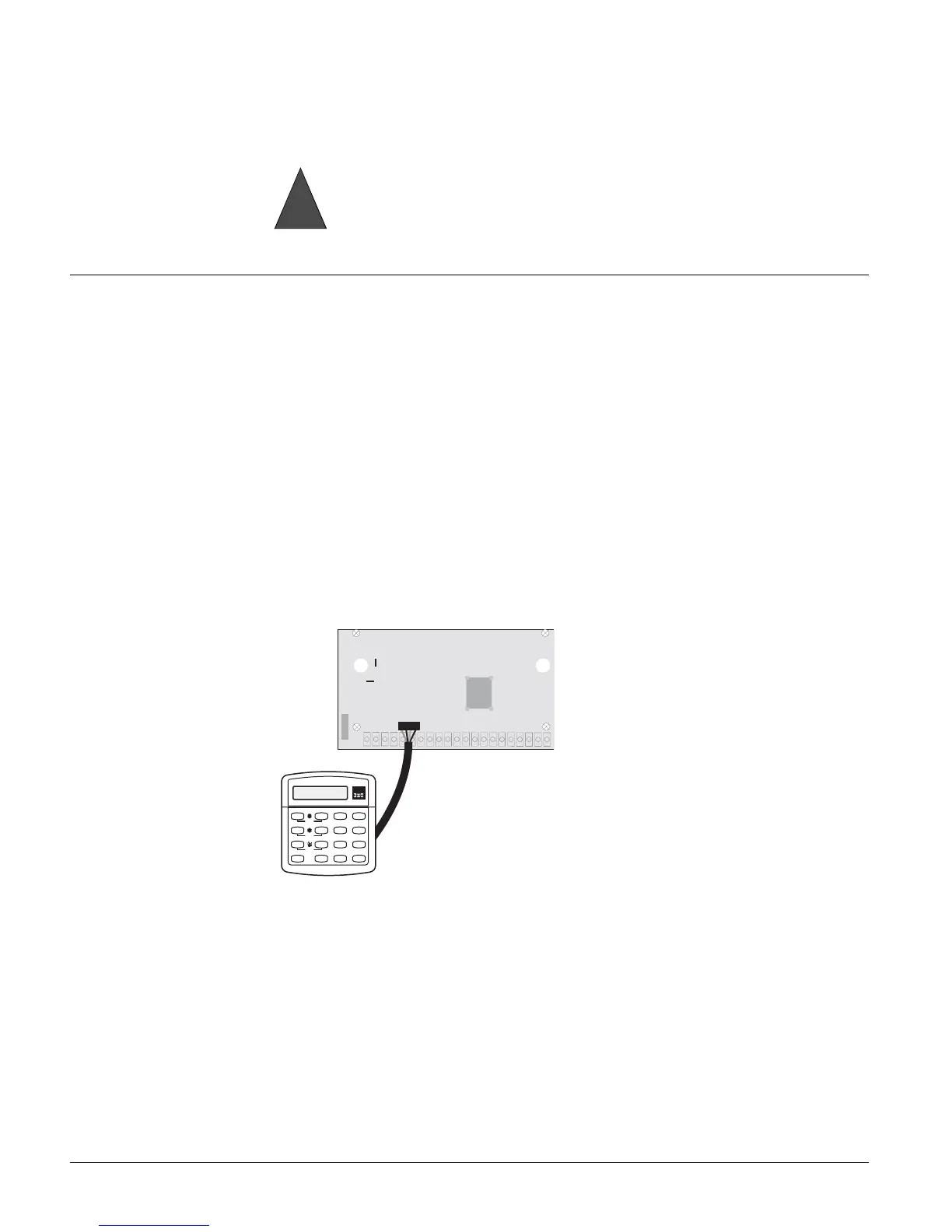

Figure 20. Connecting a Programming Touchpad
4. Press 8 + 4321 + 0 + 2. The touchpad sounds one short beep and the display shows a
flashing star. Press ‚ and the display shows SERVICE TOUCHPAD ACTIVE.
5. Press
8 + 4321 + 0 + 0 and the display shows SYSTEM PROGRAMMING.
6. After programming is completed, simply disconnect the touchpad from the panel header.
Warning
!
Programming
Touchpad
Cable (60-791)
