Appendix A: System Configuration Worksheets
57
Cross-Zoning
Note
Cross-Zoning is not recom-
mended for exit/entry zones.
Each zone has the ability to
individually protect the
intended area. (e.g. motion
detector patterns overlap).
Cross-Zone (Alarm Verify) refers to two different Group 10-20 sensors that must be tripped
within four minutes of each other to report an alarm to the central station. The diagram in
Figure 23 shows the path of a person walking from the kitchen to the living room. When the per-
son is detected walking through the kitchen, the motion sensor in the kitchen is tripped, sounding
a local alarm. If motion is detected by the living room motion sensor within two minutes, an
alarm report will be sent to the central station.

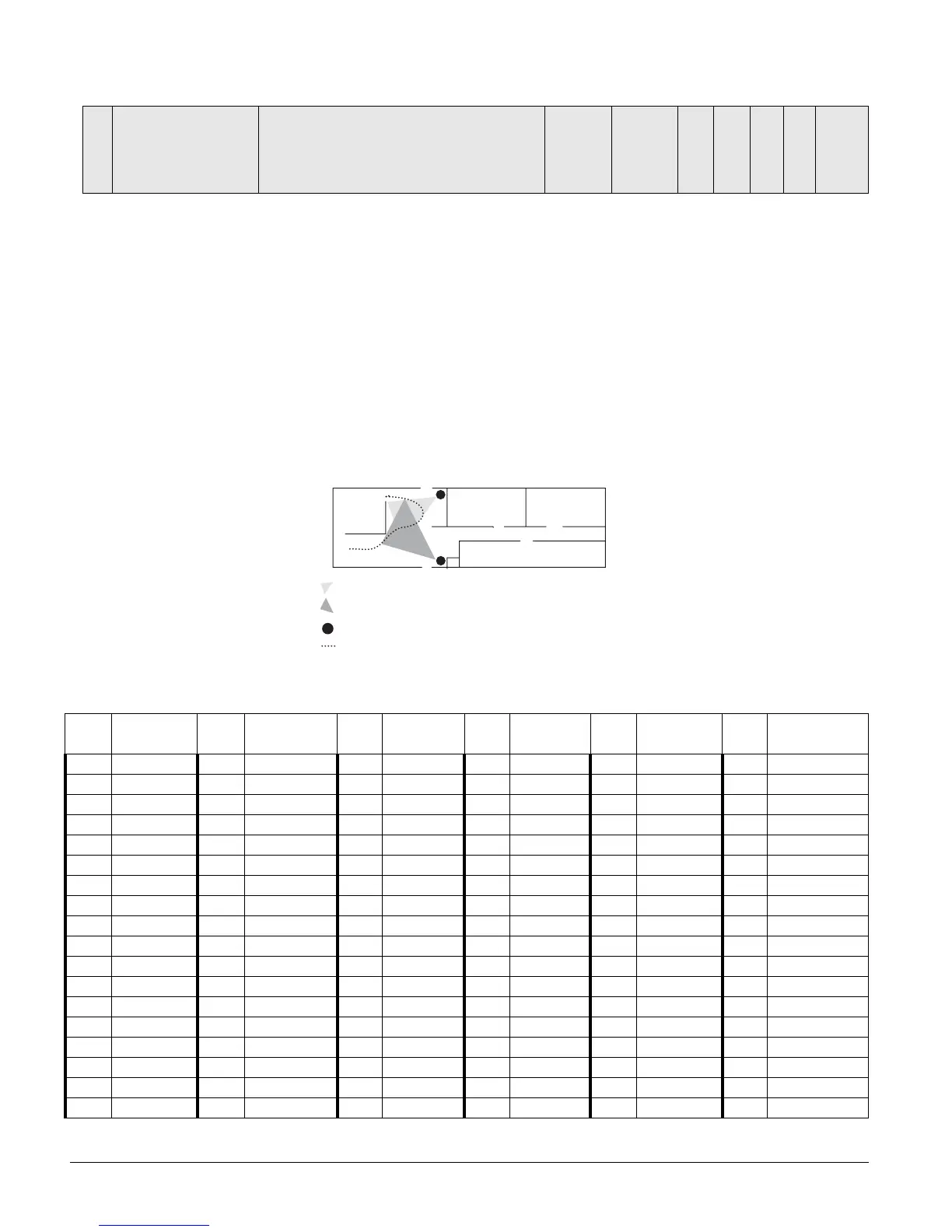

Figure 23. Cross-Zone Diagram
Note: Check marks (3) represent characteristics present in a group.
* This group is not certified as a primary protection circuit for UL-listed systems and is for supplementary use only.
†
Sounds instant police siren if two or more sensors are tripped within 4 minutes. Otherwise sensors are followers to delayed
sensors. If Alarm Verification is on, group 18 functions like group 17.
‡ This group has not been investigated by UL.
§
This group is required for UL-listed residential fire alarm applications.
# See “Cross-Zoning” section on page 57
Table A3: Sensor Group Characteristics (Continued)
No. Name Application Alarm Delay
Restoral
Supervisory
CS Report
Chime
Active
Levels
D i n i n g
R o o m
H a l l
B e d r o o m
B e d r o o m
B e d r o o m
P a t h o f P e r s o n W a l k i n g
M o t i o n S e n s o r
D e t e c t i o n P a t h / K i t c h e n M o t i o n S e n s o r
D e t e c t i o n P a t h / L i v i n g R o o m M o t i o n S e n s o r
K i t c h e n
L i v i n g
R o o m
Table A4: Item Numbers and Sensor Text
Item # Sensor Text Item # Sensor Text Item #
Sensor
Text
Item #
Sensor
Text
Item # Sensor Text Item # Sensor Text
001 Aborted 041 Date 081 Gas 121 North 161 Siren 201 G
002 AC 042 Daughter’s 082 Glass 122 Not 162 Sliding 202 H
003 Access 043 Degrees 083 Goodbye 123 Now 163 Smoke 203 I
004 Active 044 Delay 084 Hallway 124 Number 164 Son’s 204 J
005 Activity 045 Den 085 Heat 125 Off 165 Sound 205 K
006 Alarm 046 Desk 086 Hello 126 Office 166 South 206 L
007 All 047 Detector 087 Help 127 OK 167 Special 207 M
008 AM 048 Dining 088 High 128 On 168 Stairs 208 N
009 Area 049 Disarmed 089 Home 129 Open 169 Stay 209 O
010 Arm 050 Door 090 House 130 Opening 170 Supervisory 210 P
011 Armed 051 Down 091 In 131 Panic 171 System 211 Q
012 Arming 052 Download 092 Install 132 Partition 172 Tamper 212 R
013 Attic 053 Downstairs 093 Interior 133 Patio 173 Temperature 213 S
014 Auxiliary 054 Drawer 094 Intrusion 134 Pet 174 Test 214 T
015 Away 055 Driveway 095 Invalid 135 Phone 175 Time 215 U
016 Baby 056 Duct 096 Is 136 Please 176 To 216 V
017 Back 057 Duress 097 Key 137 PM 177 Touchpad 217 W
018 Bar 058 East 098 Kids 138 Police 178 Trouble 218 X
