Section 9 - Monitor Disassembly
17
9.3 Input Module
The Signal Input Relay
Module is on the back of
the rack.
For relay configuration,
see 3300 System
Installation Instructions.
For field wiring, see the
Field Wiring Diagrams
located behind the
manual.
9.3.1 Input Module
Removal

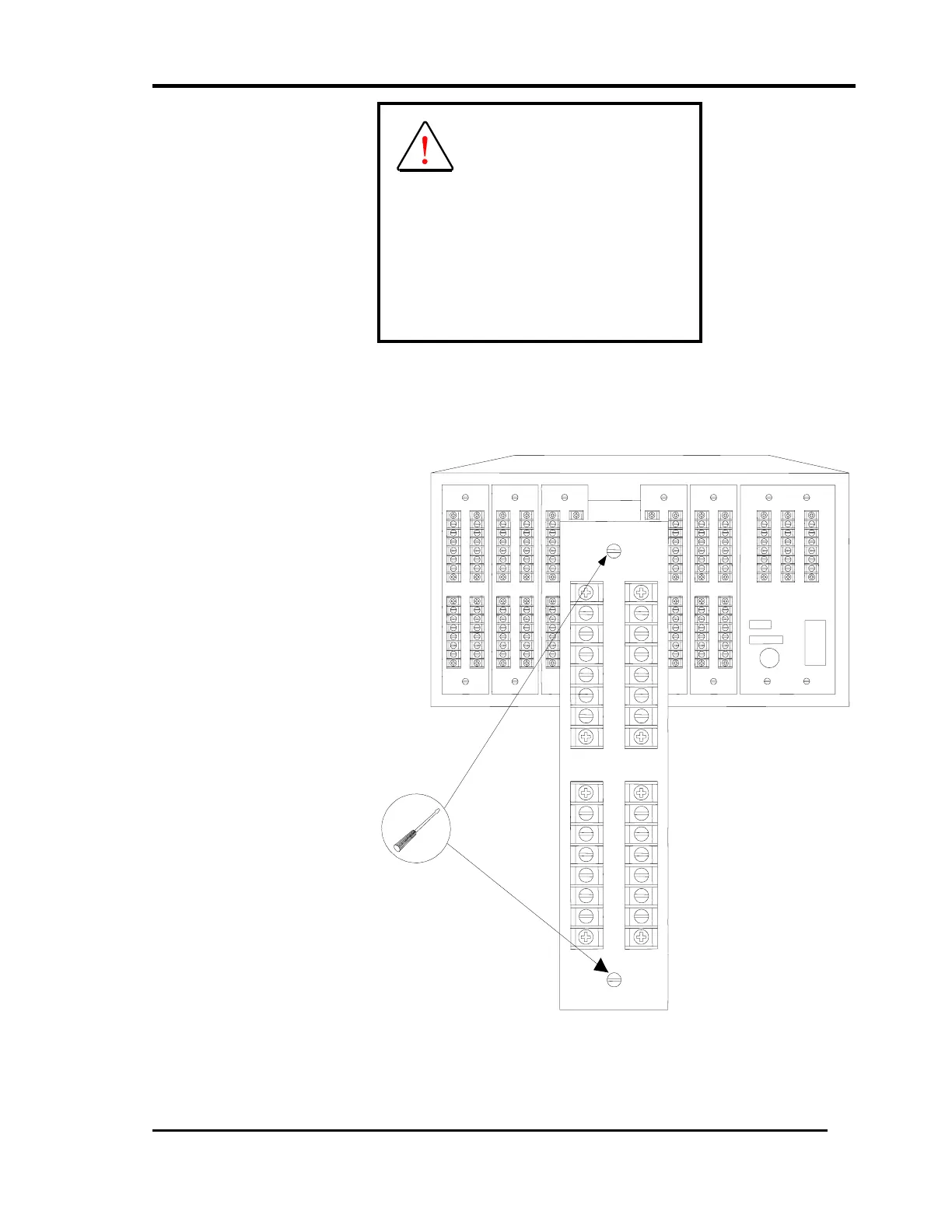

1. Loosen two screws.
2. Pull the module from
the rack.
WARNING
High voltage present. Contact could
cause shock, burns, or death.
Do not touch exposed wires or
terminals
