3300/16 Dual Vibration Monitor Operation Manual
18

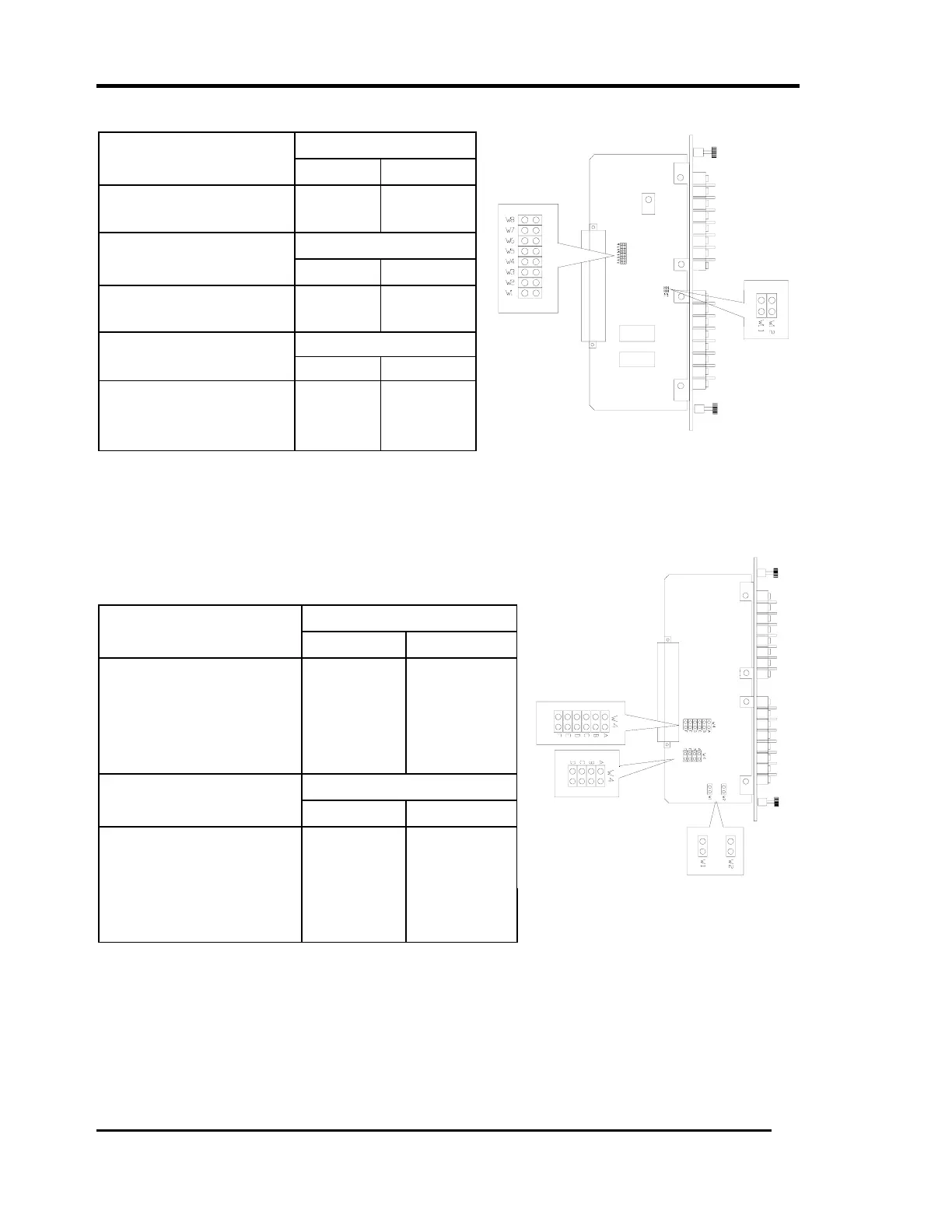

9.3.2 Dual Relay Module Options
Jumper
Alert Relay
In Out
Normally Energized
Normally De-energized*
W3
W4, W11
W4, W11
W3
Jumper
Danger Relay
In Out
Normally Energized
Normally De-energized*
W2
W1, W12
W1, W12
W2
Jumper
OR Bus**
In Out
No Options*
Alert & Danger Bus 1
Alert & Danger Bus 2
----------
W6, W8
W5, W7
W5 - W8
W5, W7
W6, W8
Note: For relay configuration of monitors with
internal safety barriers, refer to the 3300 Internal Barrier Installation Manual or the
3300 System Installation Manual.
9.3.3 Quad Relay Module Options
Jumper
Alert Relays
In Out
Normally Energized
Normally De-energized*
W3A,W4C
W2,W3C
W3D,W4D
W2,W3C
W3B,W4D
WA, W4C
Jumper
Danger Relays
In Out
Normally Energized
Normally De-energized*
W4B,W4F
W1,W3B
W4A,W4E
W1,W3B
W4A,W4E
W4B,W4F
NOTE: For Quad Relays, AND voting logic must be done externally by wiring the contacts
in series.
* Shipped as options
** OR Bus option is not available with Quad relays. See 80172 System Installation Guide.
