Section 12 - Alarm Setpoint Adjustment
23
12.2 Gap Alert Setpoint Adjustment
1. To adjust Gap Alert
setpoints, first select Under
Gap setpoints by setting
the Over/Under (O/U)
switch to the right.

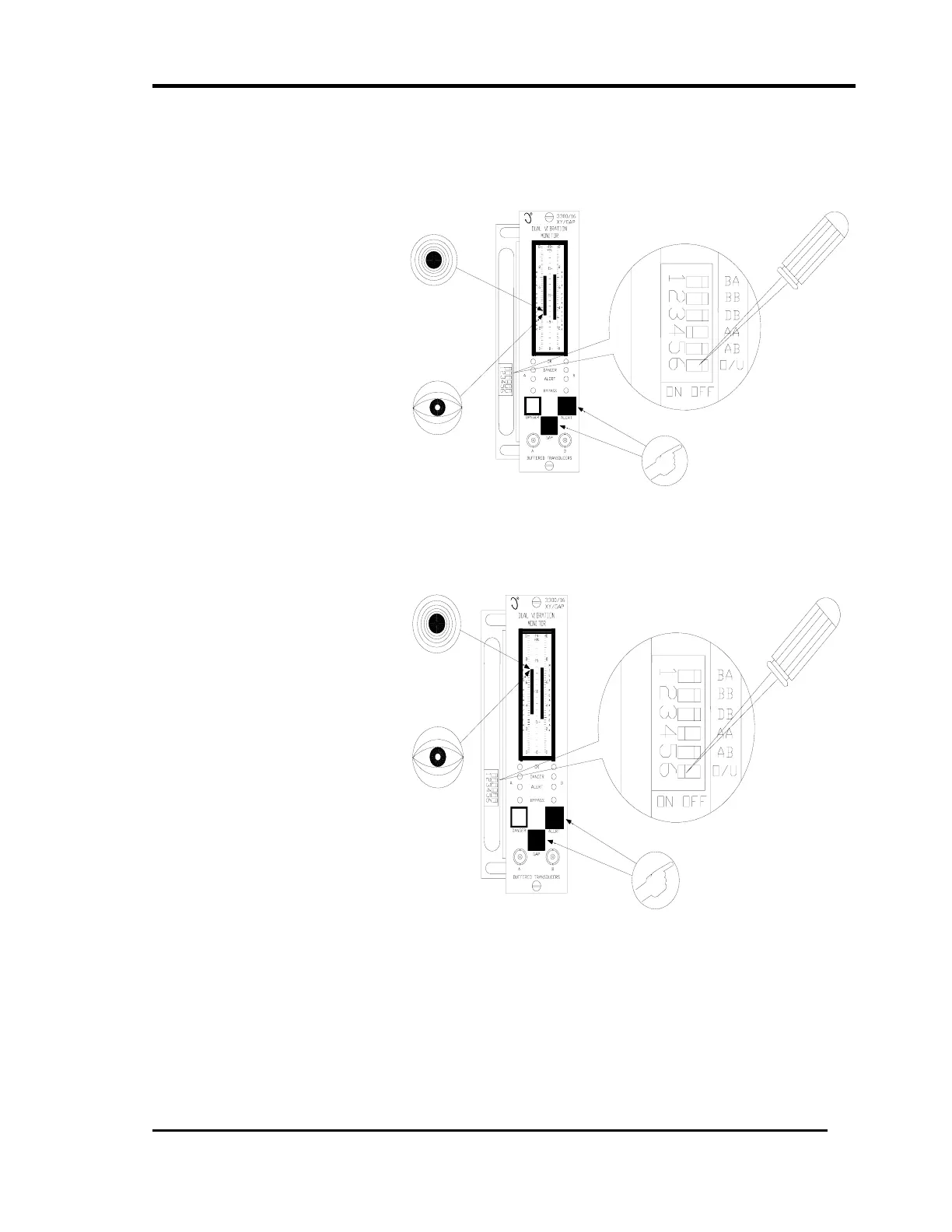

2. Press and hold the GAP
and ALERT switches
simultaneously on the front
panel. The left bargraph
will flash the Gap Alert
setpoint window. Use the
center meter scale.
3. Use the (↑) or (↓) switches
on the System Monitor to
adjust the Under Gap
setpoint level up or down.
4. Repeat steps 2 and 3 for
Over Gap Alert setpoints
after setting the Over/Under
(O/U) switch to the left.
5. Reset AA to the right
(OFF).
12.3 Channel B
Adjust
1. Set the Adjust channel B
switch (AB) to the left (ON)
and repeat steps 12.1.3,
12.1.4 and section 12.2
above.
2. Reset AB to the right
(OFF).
3. Close front panel.
