Chapter 2. Error Codes and Screen Messages
Chapter 2. Error Codes and Screen Messages
2.1 Introduction
The Model DF868 ultrasonic flowmeter is a reliable, easy to maintain instrument. When properly installed and
operated, as described in the Startup Guide, the meter provides accurate flow rate measurements with minimal user
intervention. However, if a problem should arise with the electronics console, the transducers or the flowcell, a built-in
error code message system greatly simplifies the troubleshooting process.
All of the possible Model DF868 error code messages are discussed in this chapter, along with the possible causes and
the recommended actions. When an error code is generated, it will appear on the active pane of the display screen in the
location shown in Figure 7 below.

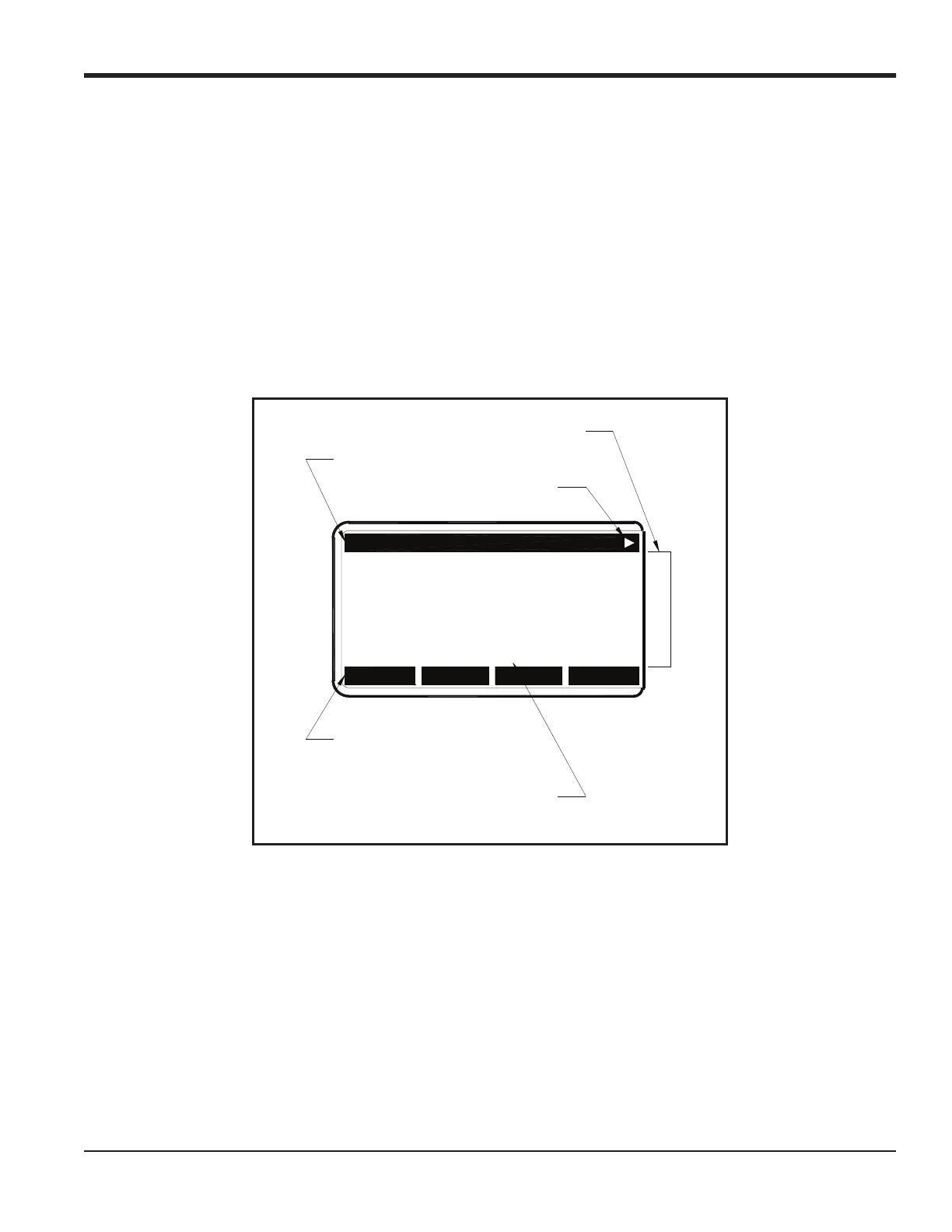

Figure 7: A Typical Display Screen
Note: For a 2-Channel Model DF868, the channel number is displayed in front of the error message. Only the error
message appears with a 1-Channel Model DF868.
If an error message appears on the display screen during operation of the Model DF868, refer to the appropriate section
of this chapter for instructions on how to proceed.
Velocity Ft/s
6.95
Ch1 E1: Low Signal
Pointer
Locator Bar
Error Message
Option Bar
Prompt Area
To Next Page
