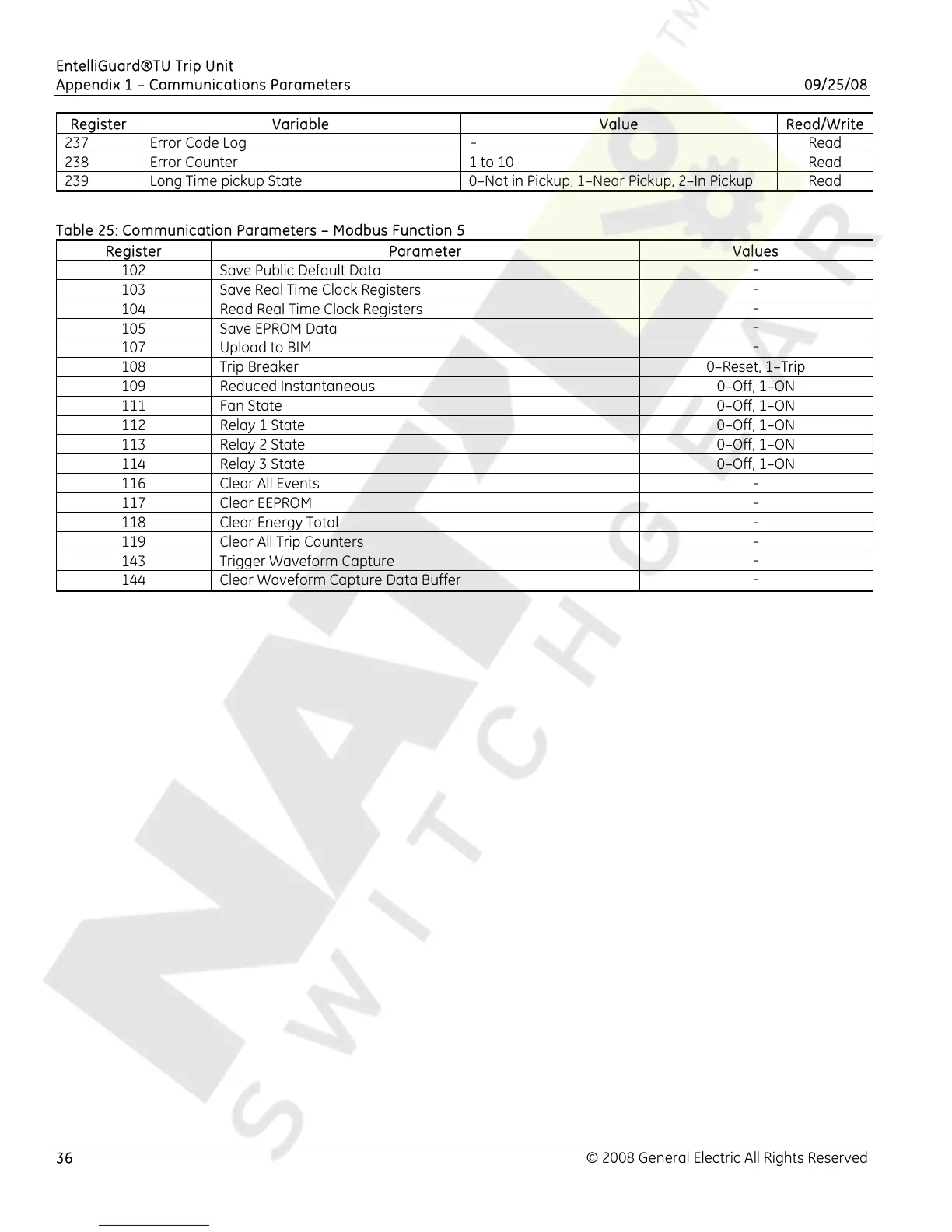

EntelliGuard®TU Trip Unit
Appendix 1 – Communications Parameters 09/25/08
36 © 2008 General Electric All Rights Reserved
Register Variable Value Read/Write
237 Error Code Log
-
Read
238 Error Counter 1 to 10 Read
239 Long Time pickup State 0–Not in Pickup, 1–Near Pickup, 2–In Pickup Read
Table 25: Communication Parameters – Modbus Function 5
Register Parameter Values
102 Save Public Default Data
-
103 Save Real Time Clock Registers
-
104 Read Real Time Clock Registers
-
105 Save EPROM Data
-
107 Upload to BIM
-
108 Trip Breaker 0–Reset, 1–Trip
109 Reduced Instantaneous 0–Off, 1–ON
111 Fan State 0–Off, 1–ON
112 Relay 1 State 0–Off, 1–ON
113 Relay 2 State 0–Off, 1–ON
114 Relay 3 State 0–Off, 1–ON
116 Clear All Events
-
117 Clear EEPROM
-
118 Clear Energy Total
-
119 Clear All Trip Counters
-
143 Trigger Waveform Capture
-
144 Clear Waveform Capture Data Buffer
-
