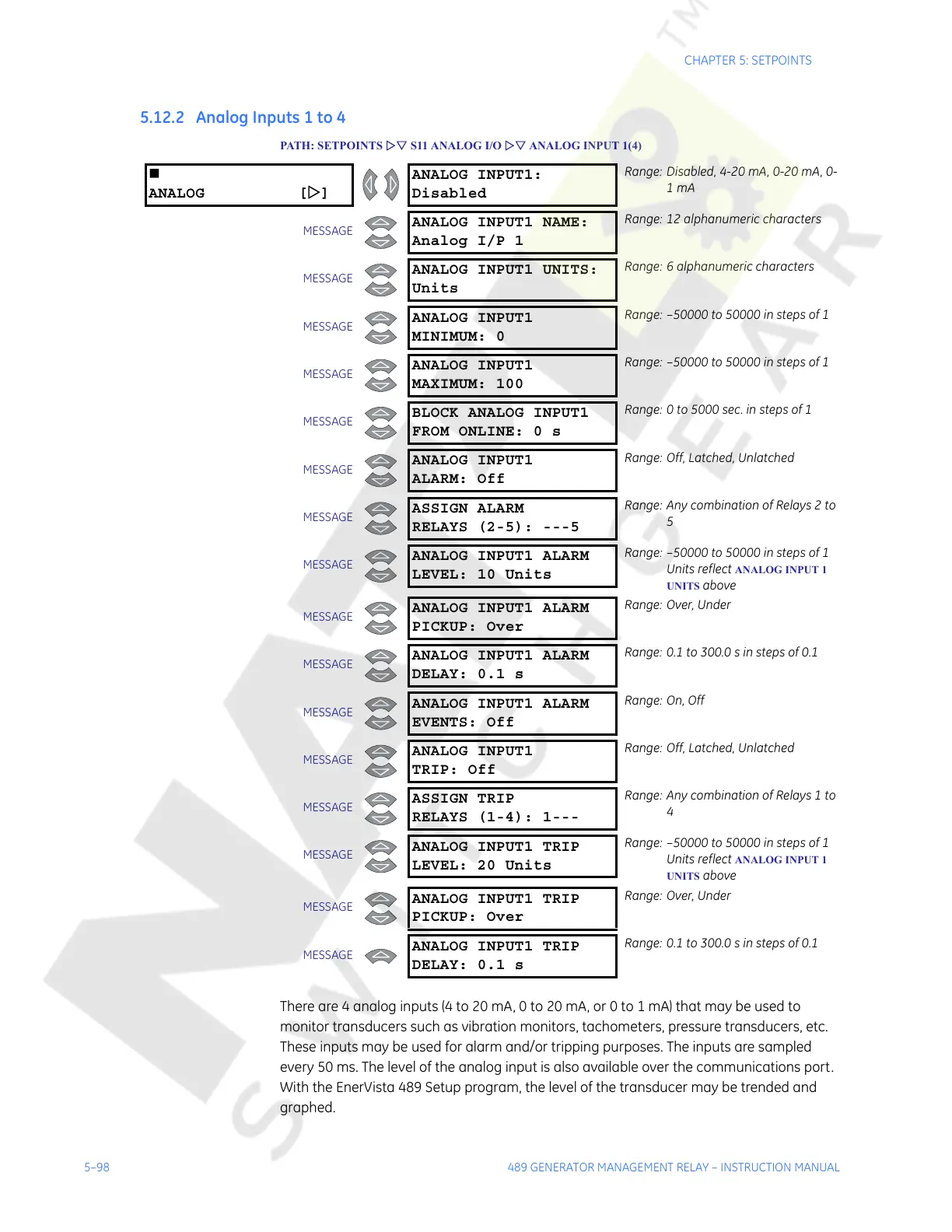

5–98 489 GENERATOR MANAGEMENT RELAY – INSTRUCTION MANUAL
CHAPTER 5: SETPOINTS
5.12.2 Analog Inputs 1 to 4
PATH: SETPOINTS ZV S11 ANALOG I/O ZV ANALOG INPUT 1(4)
There are 4 analog inputs (4 to 20 mA, 0 to 20 mA, or 0 to 1 mA) that may be used to
monitor transducers such as vibration monitors, tachometers, pressure transducers, etc.
These inputs may be used for alarm and/or tripping purposes. The inputs are sampled
every 50 ms. The level of the analog input is also available over the communications port.
With the EnerVista 489 Setup program, the level of the transducer may be trended and
graphed.
îš„
ANALOG [Z]
ANALOG INPUT1:
Disabled
Range: Disabled, 4-20 mA, 0-20 mA, 0-
1 mA
MESSAGE
ANALOG INPUT1 NAME:
Analog I/P 1
Range: 12 alphanumeric characters
MESSAGE
ANALOG INPUT1 UNITS:
Units
Range: 6 alphanumeric characters
MESSAGE
ANALOG INPUT1
MINIMUM: 0
Range: –50000 to 50000 in steps of 1
MESSAGE
ANALOG INPUT1
MAXIMUM: 100
Range: –50000 to 50000 in steps of 1
MESSAGE
BLOCK ANALOG INPUT1
FROM ONLINE: 0 s
Range: 0 to 5000 sec. in steps of 1
MESSAGE
ANALOG INPUT1
ALARM: Off
Range: Off, Latched, Unlatched
MESSAGE
ASSIGN ALARM
RELAYS (2-5): ---5
Range: Any combination of Relays 2 to
5
MESSAGE
ANALOG INPUT1 ALARM
LEVEL: 10 Units
Range: –50000 to 50000 in steps of 1
Units reflect
ANALOG INPUT 1
UNITS
above
MESSAGE
ANALOG INPUT1 ALARM
PICKUP: Over
Range: Over, Under
MESSAGE
ANALOG INPUT1 ALARM
DELAY: 0.1 s
Range: 0.1 to 300.0 s in steps of 0.1
MESSAGE
ANALOG INPUT1 ALARM
EVENTS: Off
Range: On, Off
MESSAGE
ANALOG INPUT1
TRIP: Off
Range: Off, Latched, Unlatched
MESSAGE
ASSIGN TRIP
RELAYS (1-4): 1---
Range: Any combination of Relays 1 to
4
MESSAGE
ANALOG INPUT1 TRIP
LEVEL: 20 Units
Range: –50000 to 50000 in steps of 1
Units reflect
ANALOG INPUT 1
UNITS
above
MESSAGE
ANALOG INPUT1 TRIP
PICKUP: Over
Range: Over, Under
MESSAGE
ANALOG INPUT1 TRIP
DELAY: 0.1 s
Range: 0.1 to 300.0 s in steps of 0.1
