6–28 489 GENERATOR MANAGEMENT RELAY – INSTRUCTION MANUAL
CHAPTER 6: ACTUAL VALUES

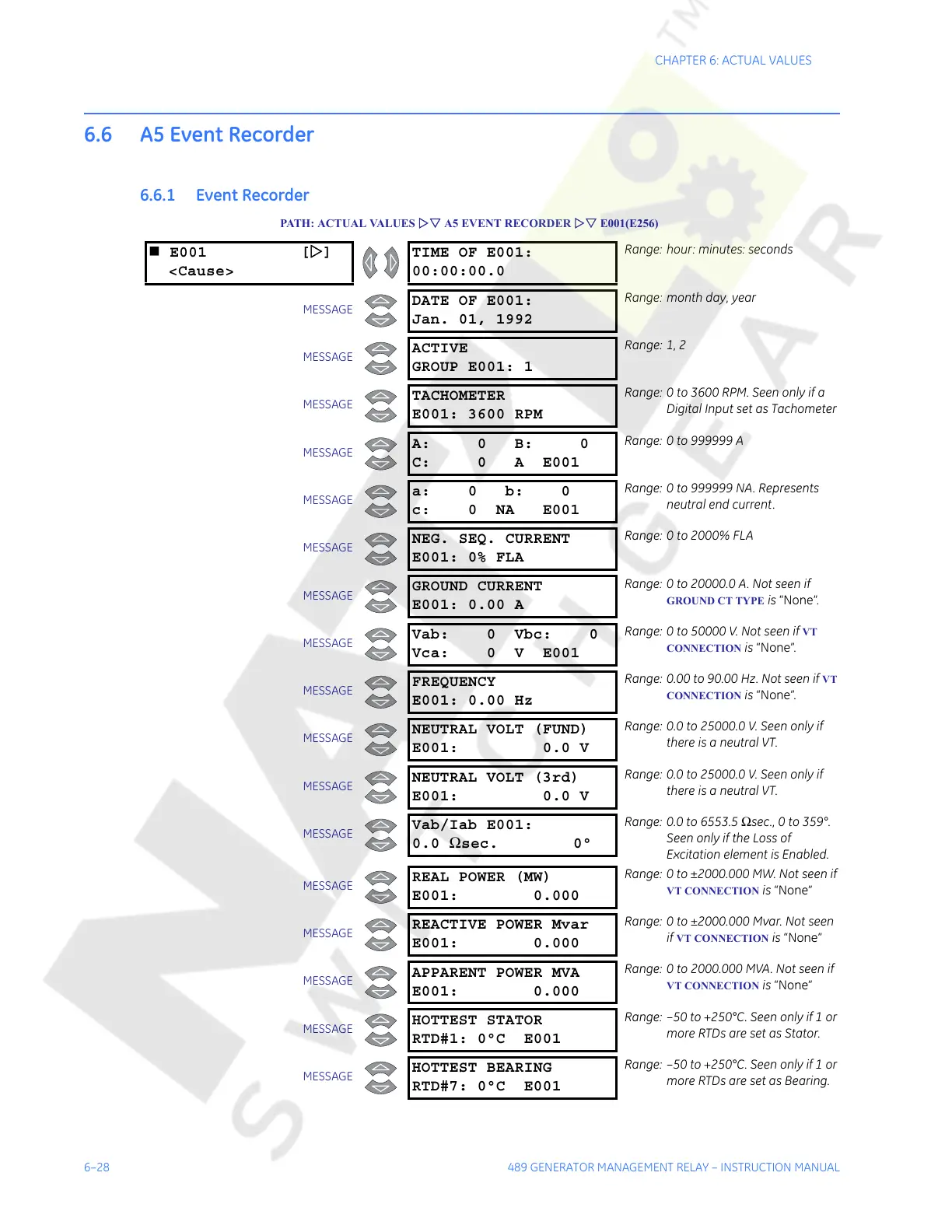

6.6 A5 Event Recorder
6.6.1 Event Recorder
PATH: ACTUAL VALUES ZV A5 EVENT RECORDER ZV E001(E256)
E001 [Z]
<Cause>
TIME OF E001:
00:00:00.0
Range: hour: minutes: seconds
MESSAGE
DATE OF E001:
Jan. 01, 1992
Range: month day, year
MESSAGE
ACTIVE
GROUP E001: 1
Range: 1, 2
MESSAGE
TACHOMETER
E001: 3600 RPM
Range: 0 to 3600 RPM. Seen only if a
Digital Input set as Tachometer
MESSAGE
A: 0 B: 0
C: 0 A E001
Range: 0 to 999999 A
MESSAGE
a: 0 b: 0
c: 0 NA E001
Range: 0 to 999999 NA. Represents
neutral end current.
MESSAGE
NEG. SEQ. CURRENT
E001: 0% FLA
Range: 0 to 2000% FLA
MESSAGE
GROUND CURRENT
E001: 0.00 A
Range: 0 to 20000.0 A. Not seen if
GROUND CT TYPE is “None”.
MESSAGE
Vab: 0 Vbc: 0
Vca: 0 V E001
Range: 0 to 50000 V. Not seen if VT
CONNECTION
is “None”.
MESSAGE
FREQUENCY
E001: 0.00 Hz
Range: 0.00 to 90.00 Hz. Not seen if VT
CONNECTION
is “None”.
MESSAGE
NEUTRAL VOLT (FUND)
E001: 0.0 V
Range: 0.0 to 25000.0 V. Seen only if
there is a neutral VT.
MESSAGE
NEUTRAL VOLT (3rd)
E001: 0.0 V
Range: 0.0 to 25000.0 V. Seen only if
there is a neutral VT.
MESSAGE
Vab/Iab E001:
0.0 Ωsec. 0°
Range: 0.0 to 6553.5 Ωsec., 0 to 359°.
Seen only if the Loss of
Excitation element is Enabled.
MESSAGE
REAL POWER (MW)
E001: 0.000
Range: 0 to ±2000.000 MW. Not seen if
VT CONNECTION is “None”
MESSAGE
REACTIVE POWER Mvar
E001: 0.000
Range: 0 to ±2000.000 Mvar. Not seen
if
VT CONNECTION is “None”
MESSAGE
APPARENT POWER MVA
E001: 0.000
Range: 0 to 2000.000 MVA. Not seen if
VT CONNECTION is “None”
MESSAGE
HOTTEST STATOR
RTD#1: 0°C E001
Range: –50 to +250°C. Seen only if 1 or
more RTDs are set as Stator.
MESSAGE
HOTTEST BEARING
RTD#7: 0°C E001
Range: –50 to +250°C. Seen only if 1 or
more RTDs are set as Bearing.
