GE Multilin 489 User Manual

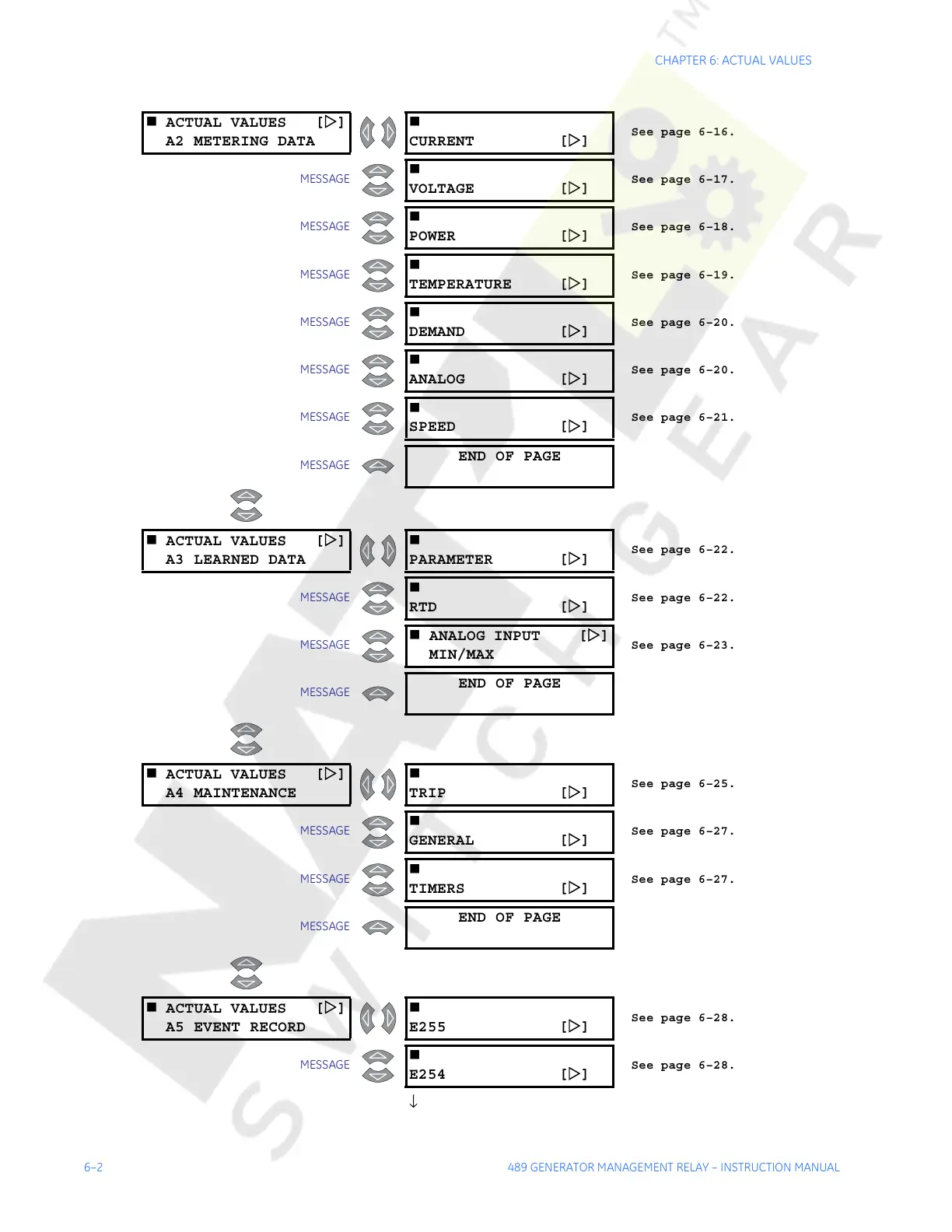

6–2 489 GENERATOR MANAGEMENT RELAY – INSTRUCTION MANUAL
CHAPTER 6: ACTUAL VALUES
 ACTUAL VALUES [Z]
A2 METERING DATA

CURRENT [Z]
See page 6–16.
MESSAGE

VOLTAGE [Z]
See page 6–17.
MESSAGE

POWER [Z]
See page 6–18.
MESSAGE

TEMPERATURE [Z]
See page 6–19.
MESSAGE

DEMAND [Z]
See page 6–20.
MESSAGE

ANALOG [Z]
See page 6–20.
MESSAGE

SPEED [Z]
See page 6–21.
MESSAGE
END OF PAGE
 ACTUAL VALUES [Z]
A3 LEARNED DATA

PARAMETER [Z]
See page 6–22.
MESSAGE

RTD [Z]
See page 6–22.
MESSAGE
 ANALOG INPUT [Z]
MIN/MAX
See page 6–23.
MESSAGE
END OF PAGE
 ACTUAL VALUES [Z]
A4 MAINTENANCE

TRIP [Z]
See page 6–25.
MESSAGE

GENERAL [Z]
See page 6–27.
MESSAGE

TIMERS [Z]
See page 6–27.
MESSAGE
END OF PAGE
 ACTUAL VALUES [Z]
A5 EVENT RECORD

E255 [Z]
See page 6–28.
MESSAGE

E254 [Z]
See page 6–28.
↓
