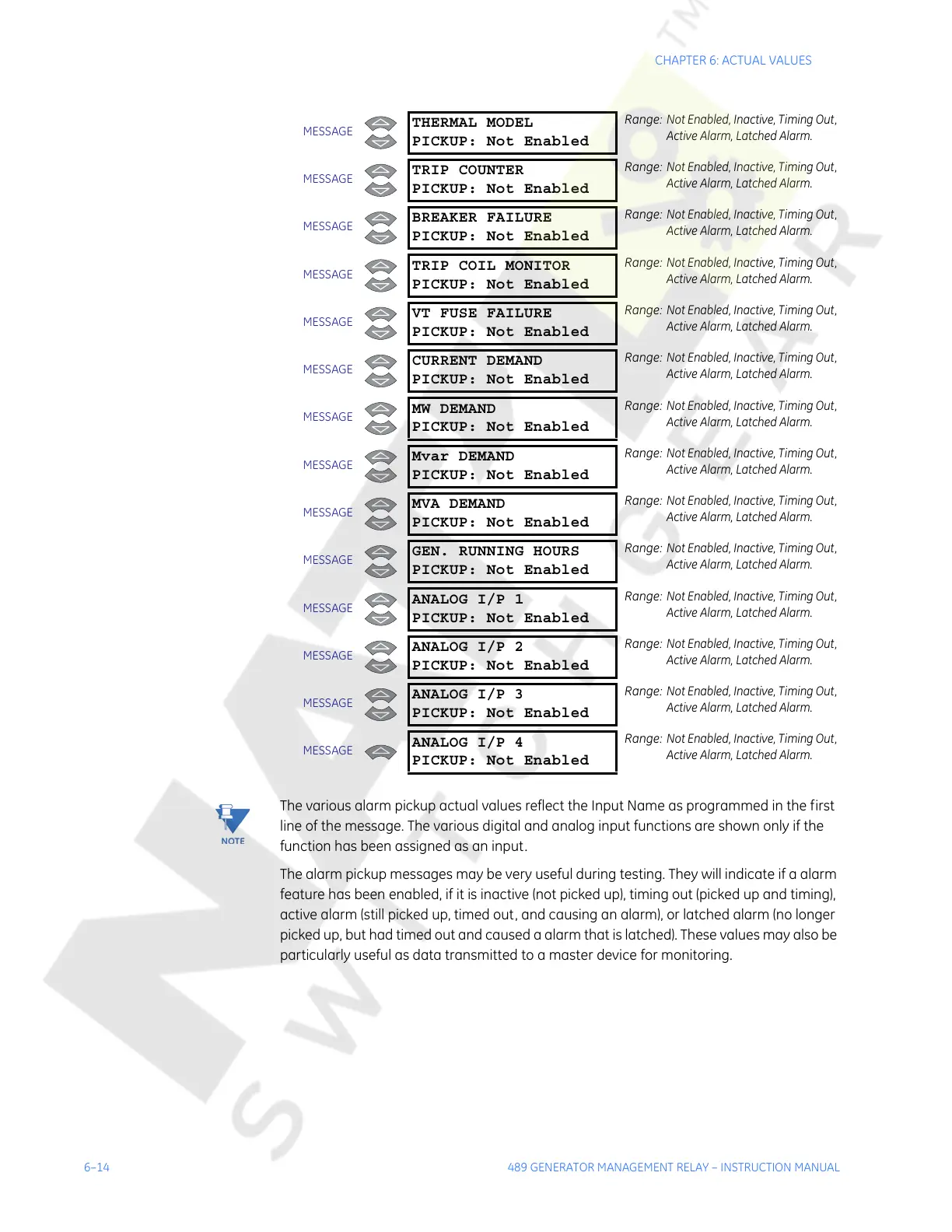

6–14 489 GENERATOR MANAGEMENT RELAY – INSTRUCTION MANUAL
CHAPTER 6: ACTUAL VALUES
Note
The various alarm pickup actual values reflect the Input Name as programmed in the first
line of the message. The various digital and analog input functions are shown only if the
function has been assigned as an input.
The alarm pickup messages may be very useful during testing. They will indicate if a alarm
feature has been enabled, if it is inactive (not picked up), timing out (picked up and timing),
active alarm (still picked up, timed out, and causing an alarm), or latched alarm (no longer
picked up, but had timed out and caused a alarm that is latched). These values may also be
particularly useful as data transmitted to a master device for monitoring.
MESSAGE
THERMAL MODEL
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
TRIP COUNTER
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
BREAKER FAILURE
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
TRIP COIL MONITOR
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
VT FUSE FAILURE
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
CURRENT DEMAND
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
MW DEMAND
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
Mvar DEMAND
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
MVA DEMAND
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
GEN. RUNNING HOURS
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
ANALOG I/P 1
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
ANALOG I/P 2
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
ANALOG I/P 3
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
ANALOG I/P 4
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
