CHAPTER 3: INSTALLATION INSTALLATION
MULTILINK ML2400 ETHERNET COMMUNICATIONS SWITCH – INSTRUCTION MANUAL 3–7

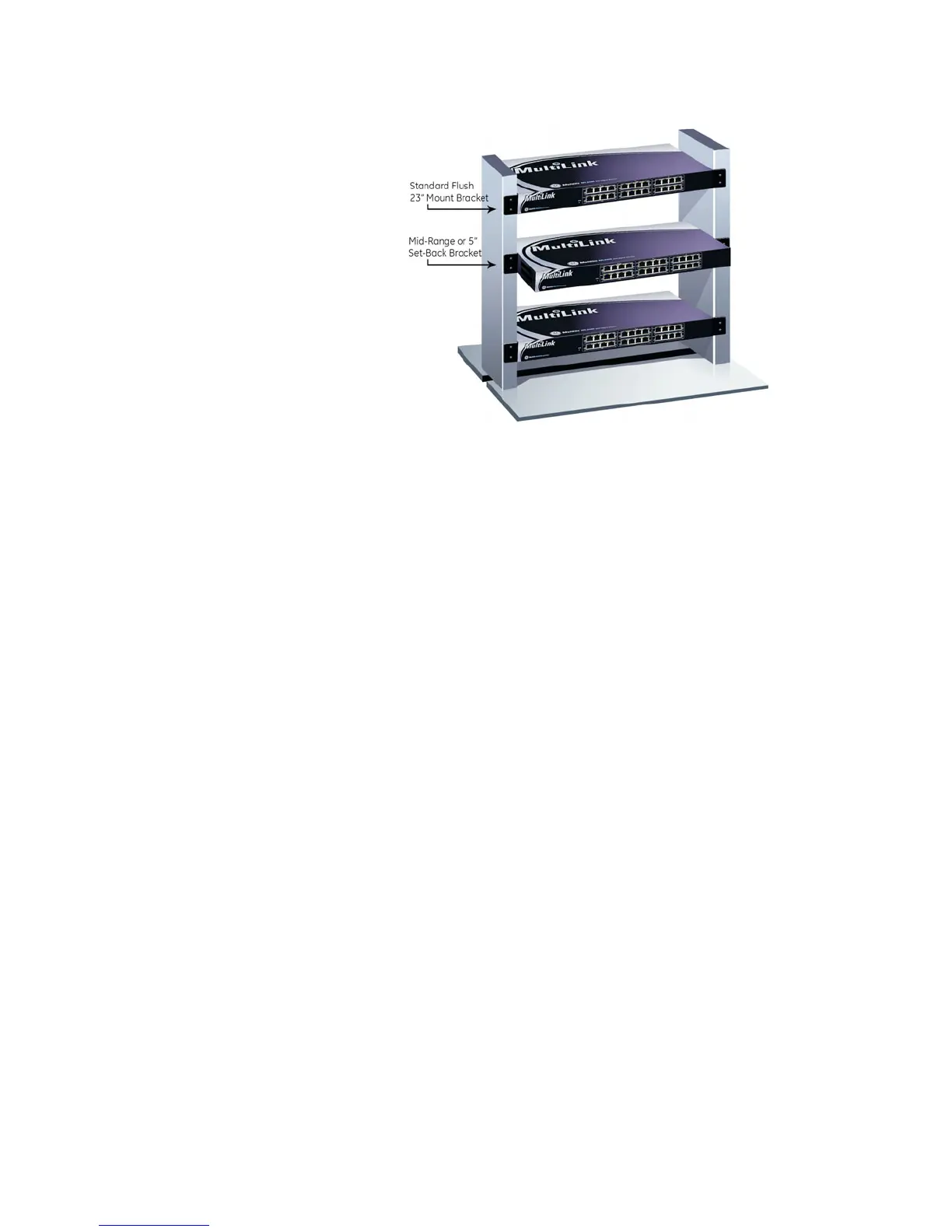

FIGURE 3–2: Mountings for ML2400 units rack-mounted in a frame
The bracket mounting holes in the sides of the ML2400 permits it to be mounted in various
ways. The same holes fit all three types (19", ETSI, 23") of brackets. The mounting for the 23"
is illustrated above. The brackets may be attached flush with the front, or attached in the
center for a set-back mounting which may reduce cabling torque.
The optional 23" brackets and the ETSI (21") brackets each come as a pair in a package,
along with the necessary screws for attaching the brackets to the sides of the ML2400.
They must be ordered as line items.
754734A1.CDR
