8 Dimensions

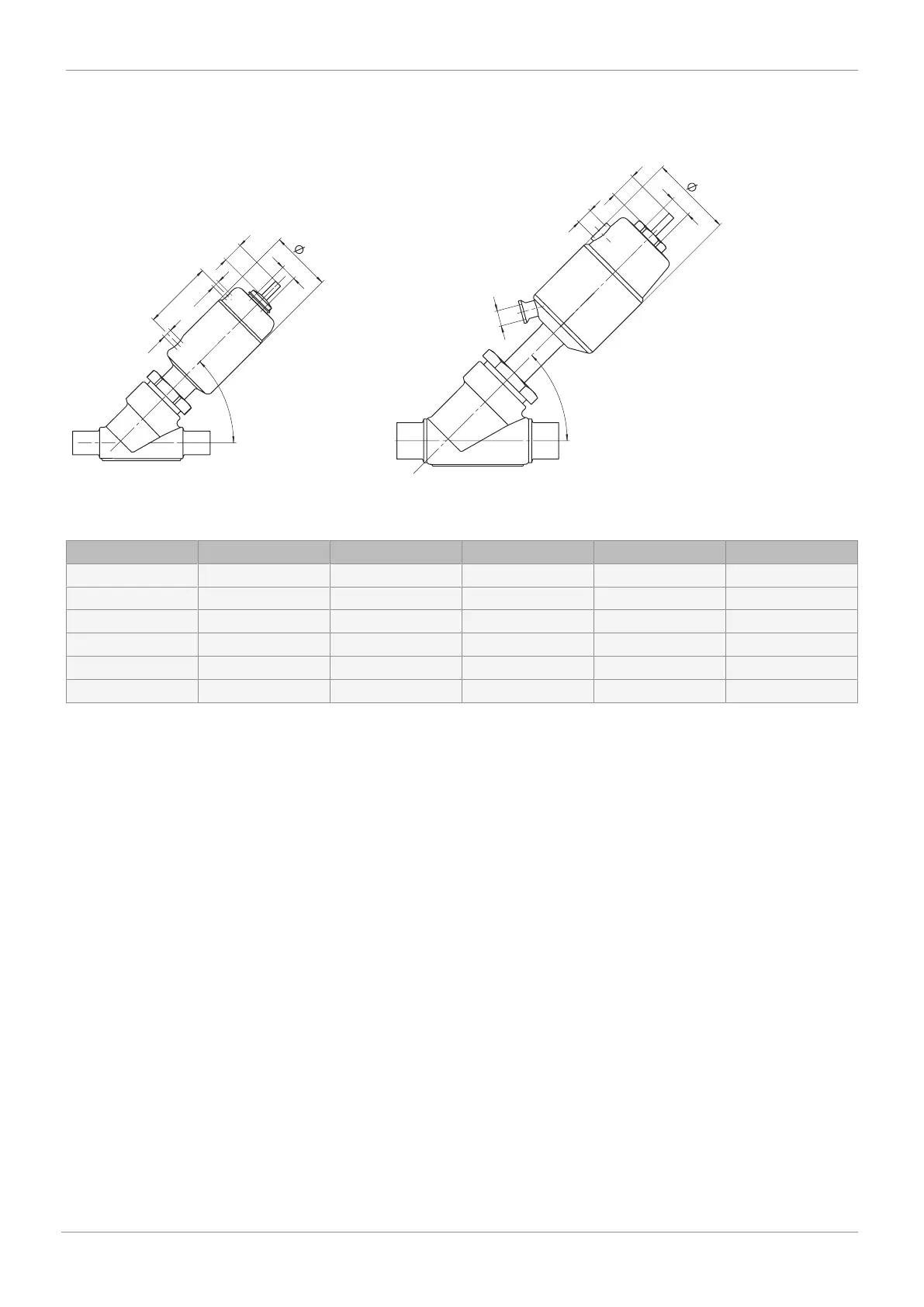

8.1 Actuator dimensions

max

45°

max

45°

Actuator size 0, 1

Actuator size 2 - 5

Actuator size øB M H max* G A2

0 32.0 M 12 x 1 6.0 M 5 35.4

1 46.0 M 16 x 1 12.0 G 1/8 53.0

2 63.0 M 16 x 1 22.0 G 1/8 -

3 84.0 M 16 x 1 28.0 G 1/4 -

4 104.0 M 22 x 1.5 32.0 G 1/4 -

5 135.0 M 22 x 1.5 41.0 G 1/4 -

Dimensions in mm

H max*: dependent on nominal size

GEMÜ 550www.gemu-group.com 19 / 46

8 Dimensions
