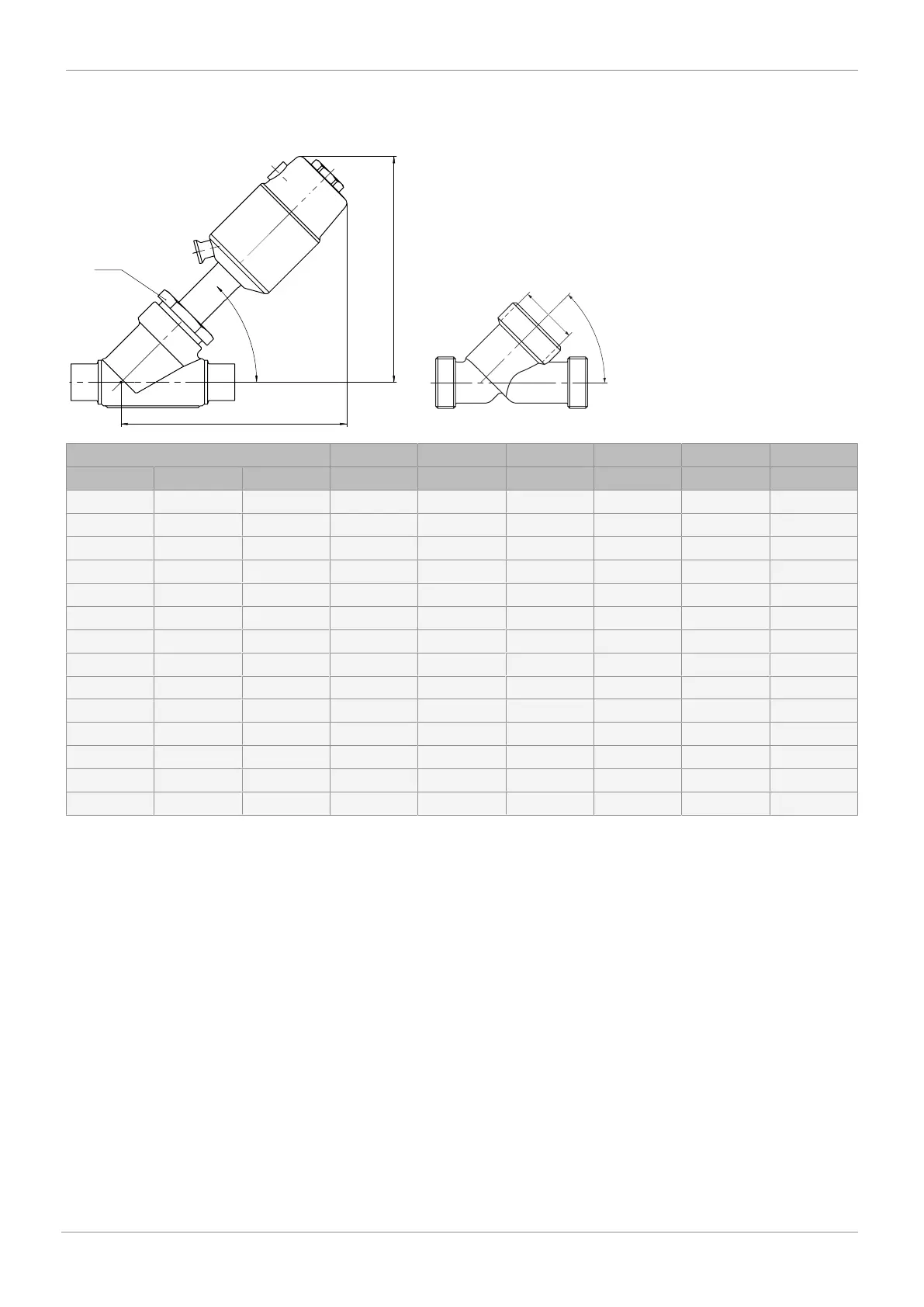

8.2 Installation dimensions
8.2.1 Valve with 2/2-way body
CT
45°
LA
SW1
45°
G
Actuator size 0 1 2 3 4 5
DN SW G CT/LA CT/LA CT/LA CT/LA CT/LA CT/LA
6 24 - 91.0 - - - - -
8 24 - 91.0 - - - - -
10 24 - 91.0 - - - - -
15 24 - 91.0 - - - - -
8 36 - - 134.0 171.0 - - -
10 36 - - 134.0 171.0 - - -
15 36 M 34 x 1.5 - 137.0 174.0 - - -
20 41 M 40 x 1.5 - 143.0 180.0 198.0 - -
25 46 M 45 x 1.5 - - 184.0 202.0 235.0 -
32 55 M 52 x 1.5 - - 192.0 210.0 243.0 269.0
40 60 M 60 x 2.0 - - 187.0 215.0 248.0 274.0
50 55 M 72 x 2.0 - - - 223.0 256.0 282.0
65 75 M 90 x 2.0 - - - - - 295.0
80 75 M 105 x 2.0 - - - - - 312.0
Dimensions in mm
The specified dimensions refer to control function 1 (normally closed NC).
The dimensions are smaller for control function 2 (normally open NO).
