GEM 550 User Manual

8.3 Body dimensions

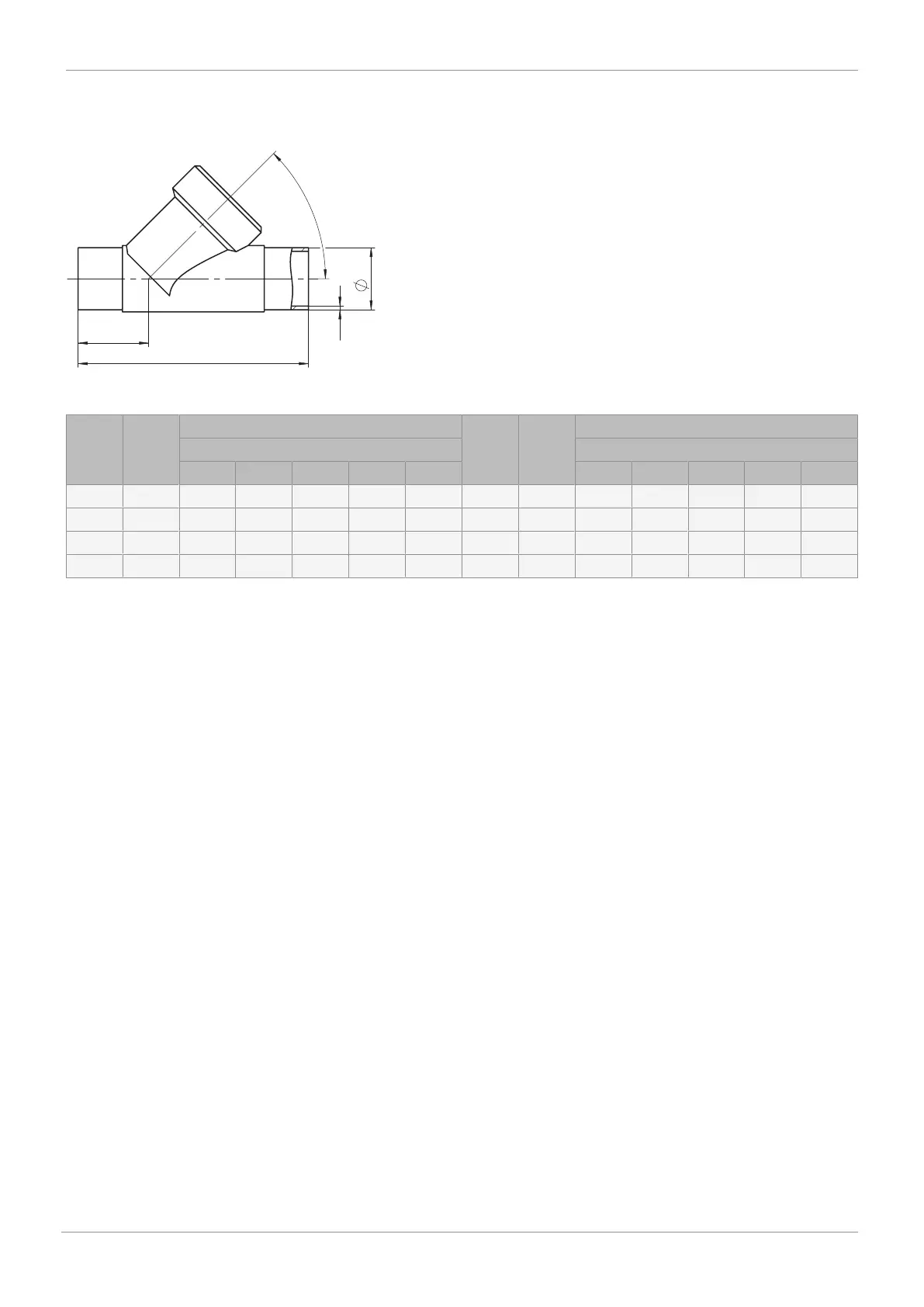

8.3.1 Spigot DIN/EN/ISO/ASME (code 0, 16, 17, 59, 60), actuator size 0
L
d
s
LB
45°
Connection type spigot DIN/EN/ISO/ASME (code 0, 16, 17, 59, 60)
1)
, forged material (code 40)
2)
DN NPS ød L LB s
Connection type Connection type
0 16 17 59 60 0 16 17 59 60
6 1/8" 8.0 - - - - 80.0 26.5 1.0 - - - -
8 1/4" 10.0 - - - 13.5 80.0 26.5 1.0 - - - 1.6
10 3/8" - 12.0 13.0 9.53 - 80.0 26.5 - 1.0 1.5 0.89 -
15 1/2" - - - 12.70 - 80.0 26.5 - - - 1.65 -
Dimensions in mm
1) Connection type
Code 0: Spigot DIN
Code 16: Spigot EN 10357 series B, formerly DIN 11850 series 1
Code 17: Spigot EN 10357 series A (formerly DIN 11850 series 2)/DIN 11866 series A
Code 59: Spigot ASME BPE
Code 60: Spigot ISO 1127/EN 10357 series C/DIN 11866 series B
2) Valve body material
Code 40: 1.4435 (F316L), forged body
www.gemu-group.com22 / 46GEMÜ 550
8 Dimensions
