2.2. INSTALLATION TO THE WALL

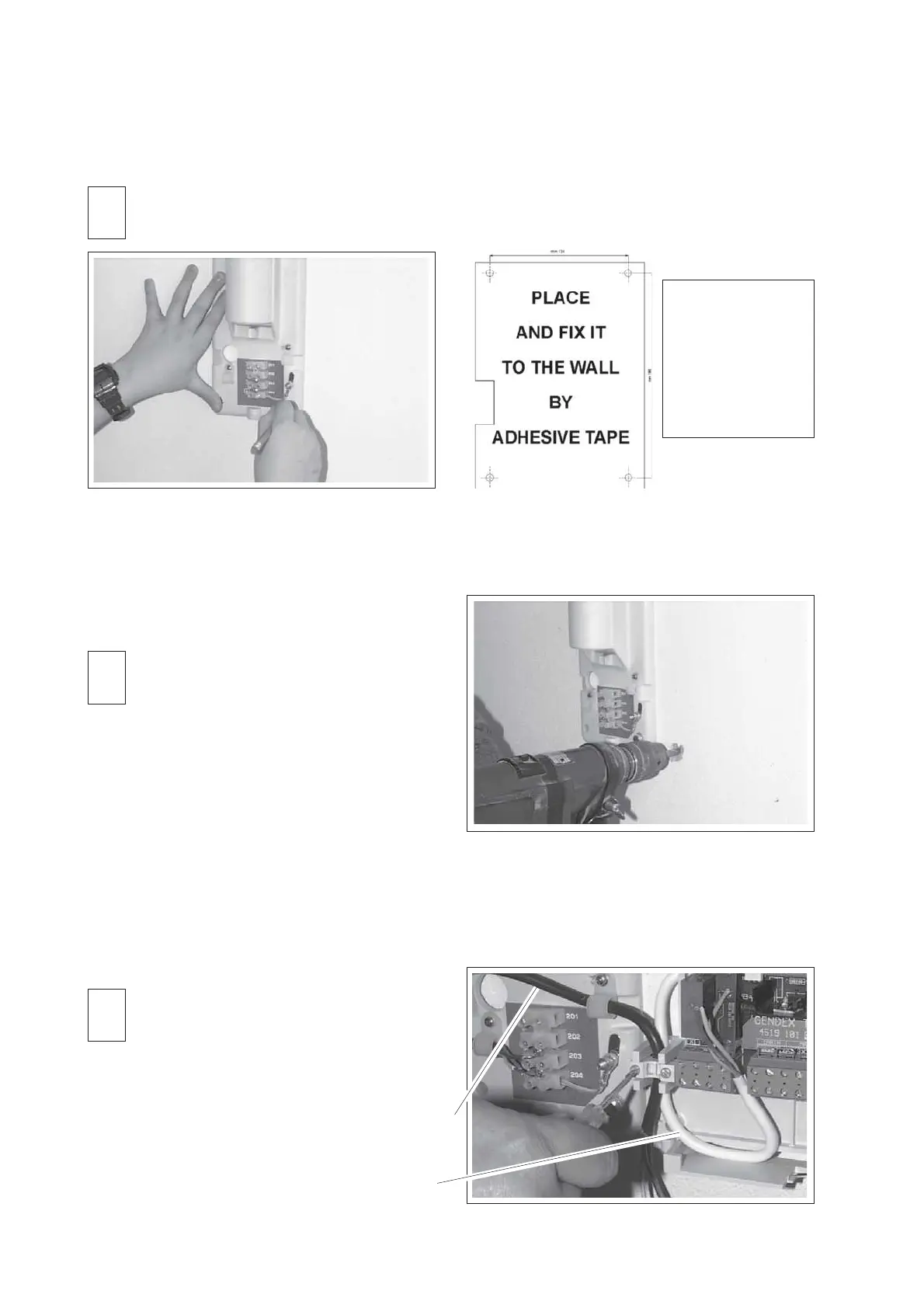

Place the Wall Support and the Timer at the desired location on the wall and mark the holes in the wall,
using the Wall Plate as a template ... and the template on page BZ-2 for the Timer.
WARNING
Do not use the Timer as
a template ! Electronic
components could be
irreparably damaged !
Drill the four pilot holes:
- for the Wall Support (with a 9 mm drill bit)
- for the Timer (with a 8 mm drill bit).
Position the Timer over the four pilot holes, hav-
ing routed the line cable through the Timer knock
out and having routed additional cable from the
Timer to the Wall Support.
1
additional cable
Timer-Wall Support
line cable
(mains)
3
2
