Gendex ORALIX AC User Manual

Gendex Dental Systems
B-21
ORALIX AC SYSTEM INSTALLATION
X10
X11
4. OPTIONS
4.1. SECOND TUBEHEAD INSTALLATION
When the Oralix AC System is equipped with the Timer DENSOMAT, a second Tubehead can be installed and
driven by the same DENSOMAT Timer console.
Mechanical installation. The me-
chanical installation of a second
Tubehead is equal to the one al-
ready described for the single
Tubehead; therefore, for instruc-
tions refer to Chapters 1 e 2 of this
section B.

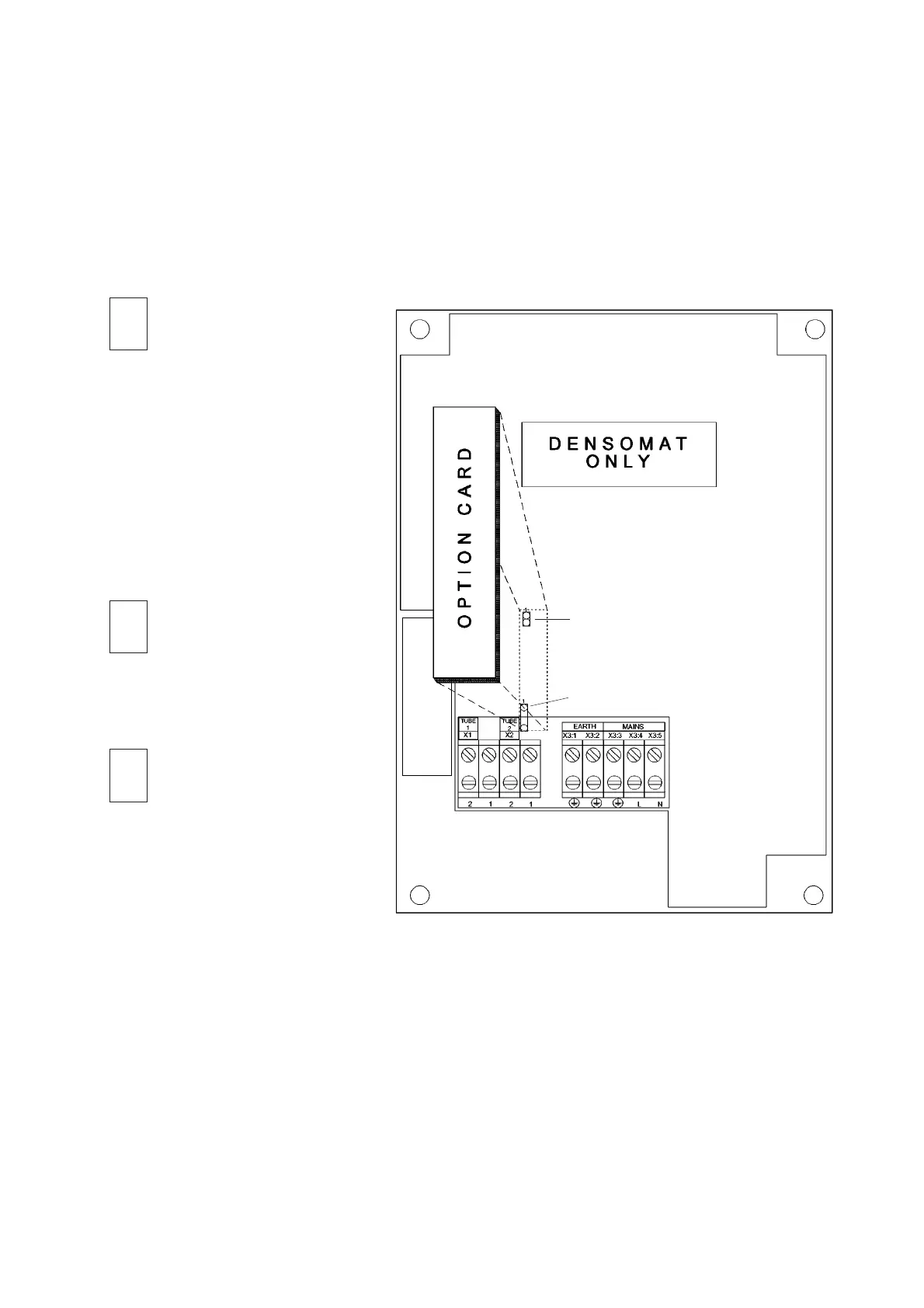

An optional plug-in card is provided-on-
request in order to enable the driving of a
second Tubehead. To install the card in
the DENSOMAT Timer follow the instruc-
tions below:
Carefully plug-in the option card on
X10 and X11 connectors in the
Densomat printed circuit board.
Set the dipswitch S1-2 from the OFF
position (single tubehead) to the ON po-
sition (double tubehead) to enable the
second tubehead.
Second Tubehead electrical con-
nection. The mains electrical con-
nections have to be carried out on
X2 terminal block through the fol-
lowing pins:
- X2:1 (live);
- X2:2 (neutral).
The earth wire (y/g) must be con-
nected to X3 terminal block to the following pin:
- X3:2 (ground).
4.2. EXTERNAL LIGHTS
The Oralix AC system can drive external lights indicating the ready for exposure and the X-ray emission in
progress: an optional board (code 4519 101 02601) is available for external lights connection.
See principle diagrams Z-3 and Z-4 for the connections.
2
3
1
Printed on: 22 Mär 2012, 09:28:10 am; Printed by: TOBIAS BAUER

Gendex ORALIX AC Specifications

General

Brand	Gendex
Model	ORALIX AC
Category	Dental equipment
Language	English

Summary

3. Description of Major Components

3.3. Tubehead Oralix AC

High voltage transformer, X-ray tube in shielded case.

4. Technical Data

4.2. Tubehead

Specifications for peak tube potential, tube current, radiation output.

2. Installation Procedure

2.6. Mounting of the Tubehead

Instructions for attaching the tubehead.

3. Mobile System Mounting

3.7. Mounting of the Tubehead

Attaching the tubehead to the mobile unit.

6. Functional Test

6.1. Functional Test on Timer Secondent

Step-by-step functional test for the Secondent timer.

6.2. Functional Test on Timer Densomat

Step-by-step functional test for the Densomat timer.

3. Acceptance Tests

3.2. Accuracy of kVpeak

Measuring kVp accuracy using a non-invasive KV meter.

3.5. Radiation Leakage

Measuring radiation leakage at 100 cm from the focus.

4. Preventive Maintenance Instructions

4.2. Mechanical Checks

Procedures for maintaining the tubehead.

6. Troubleshooting

6.1. System equipped with Timer Densomat

Corrective actions for alarm indications on the Densomat timer.
