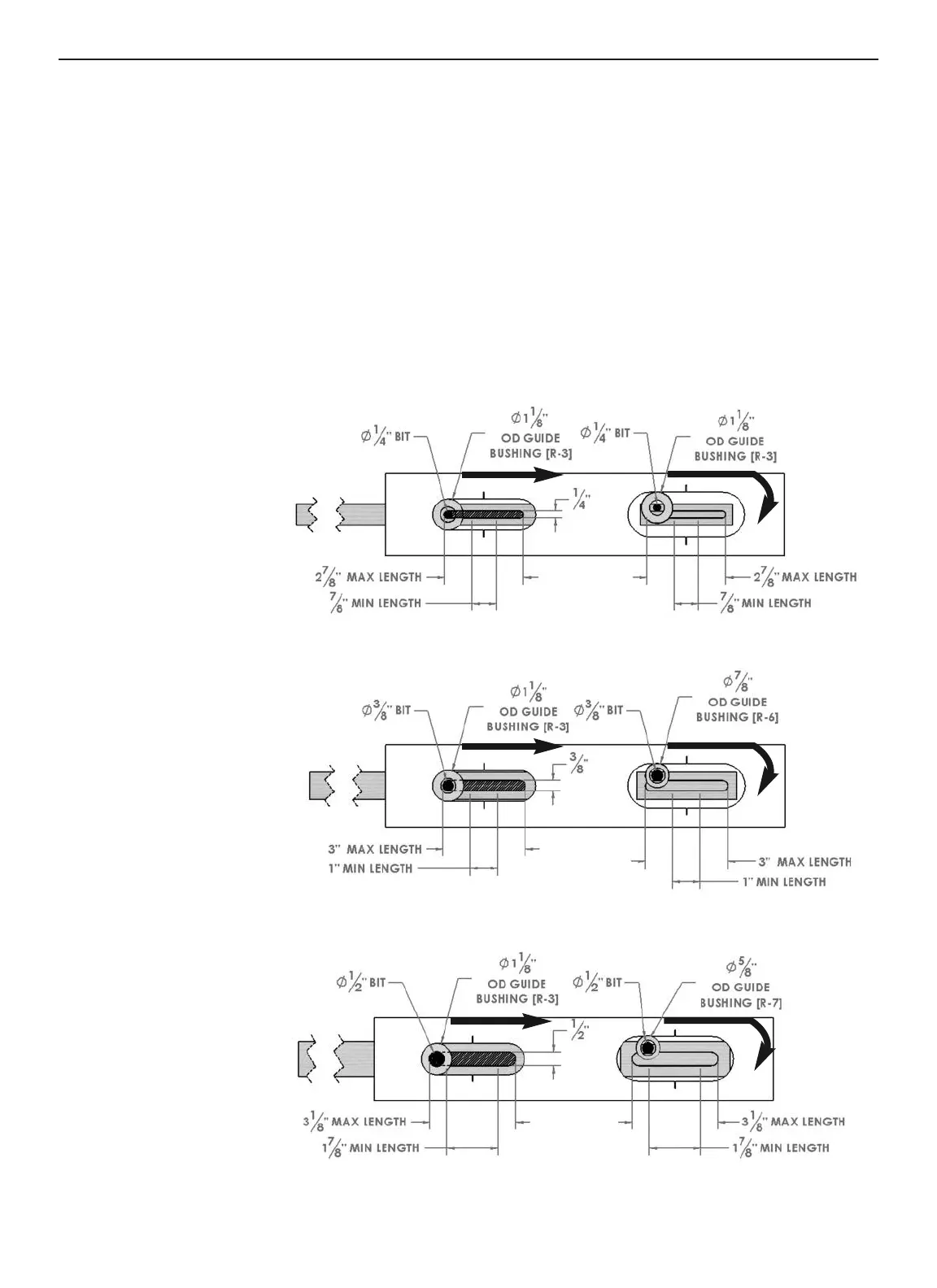

Fig. 26

Fig. 27

Fig. 28

MORTISE

TENON

MORTISE

TENON

MORTISE

TENON

ROUTING OTHER SIZE MORTISE AND TENONS

The E•Z Pro Mortise and Router Guide Bushing Tenon Jig Kit includes the guide sleeve with

Locking Nut [R2, R1], a 1-1/8" Router Guide Bushing for 1/4" joints [R3], a 1/4" Upcut Spiral

Router Bit and a Centering Pin [R4]. These parts will permit you to make 1/4" mortises and tenons

suitable for 3/4" thick board (Fig 26). The kit also includes the Guide Bushing you will need to make

mortises and tenons of 1/2" [R7] or 3/8" [R6] (Page 4), however, you will need to make a separate

purchase of the corresponding Upcut Spiral Bits. Please see sizing chart on Page 10.

• To make a 3/8" tenon, you’ll need a 3/8" Upcut Spiral Bit and the 7/8" Guide Bushing [R6].

• To make the matching 3/8" mortise, change to the 1-1/8" Guide Sleeve [R-3]. (Fig. 27)

• To make a 1/2" tenon, you’ll need a 1/2" Upcut Spiral Bit and the 5/8" Guide Bushing [R7].

• To make the matching 1/2" mortise, change to the 1-1/8" Guide Sleeve [R-3]. (Fig. 28)

NOTE: Guide Bushings can be changed without removing router bit.

1/4" JOINT

(shown on

1" stock)

3/8" JOINT

(shown on

1-1/4" stock)

1/2" JOINT

(shown on

2" stock)
