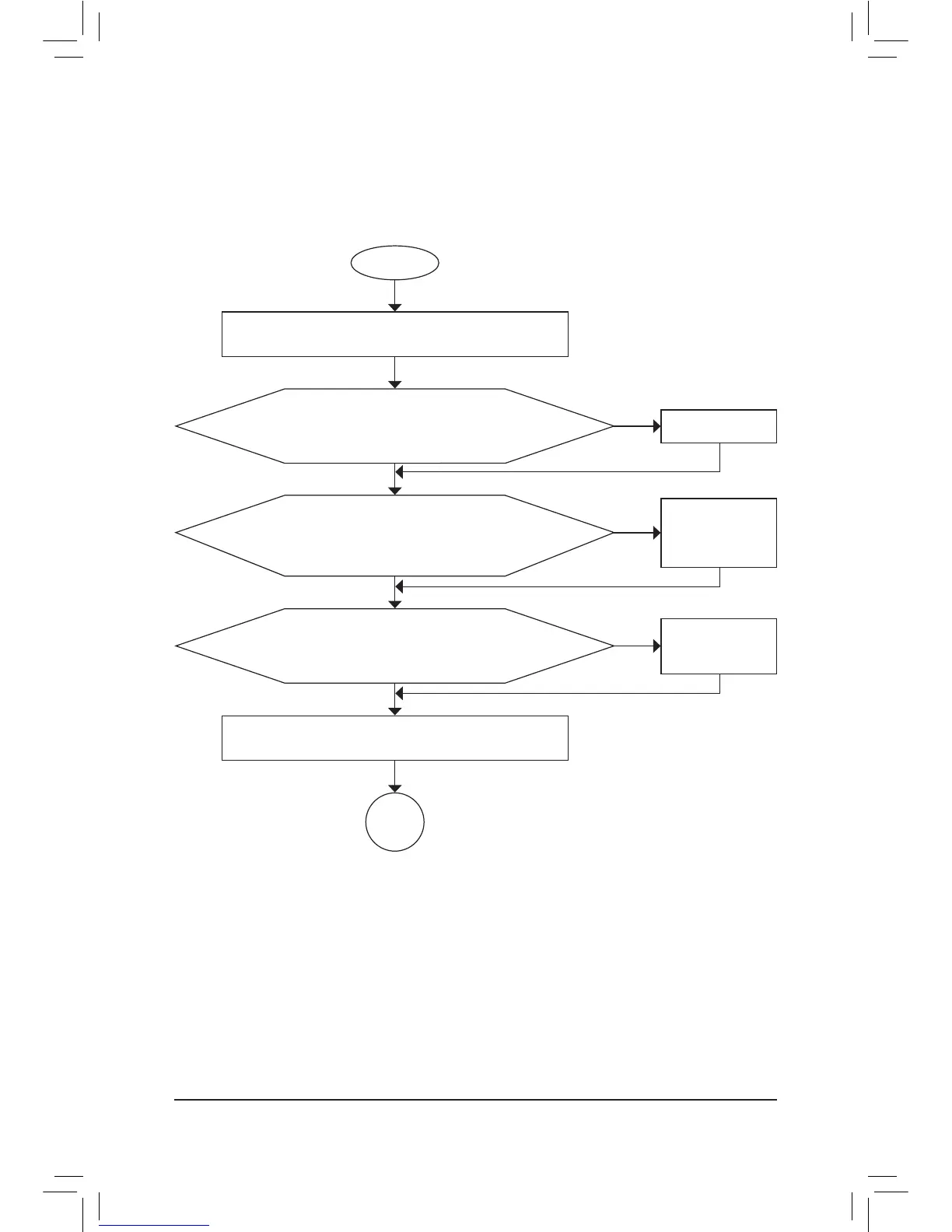

6-2-2 Troubleshooting Procedure
If you encounter any troubles during system startup, follow the troubleshooting procedure below to solve the
problem.
START
A
Turn off the power. Remove all peripherals, connecting cables, and
power cord etc.
Isolate the short circuit.
Secure the CPU cooler
on the CPU. Connect the
CPU cooler power cable
to the motherboard.
Correctly insert the
memory into the memory
socket.
(Continued...)
Yes
Theproblemisveriedandsolved.
Theproblemisveriedandsolved.
Theproblemisveriedandsolved.
No
No
No
Yes
Yes
Insert the graphics card. Connect the ATX main power cable and the
12V power cable. Turn on the power to start the computer.
Make sure the motherboard does not short-circuit with the chassis or
other metal objects.
Check if the CPU cooler is attached to the CPU securely. Is the
power connector of the CPU cooler connected to the CPU_FAN
header properly?
Check if the memory is installed properly on the memory slot.
Make sure the graphics card is securely seated in the
expansion slot and power connectors are firmly attached.

Gigabyte GA-X99-UD5 WIFI Specifications

General

Non-ECC	Yes
Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	8
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000 MHz
Processor socket	LGA 2011 (Socket R)
Processor manufacturer	Intel
Compatible processor series	Intel Core i7, Intel Core i7 Extreme Edition
USB 2.0 connectors	4
Number of SATA connectors	10
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	6
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
PS/2 ports quantity	1
eSATA ports quantity	0
USB 2.0 ports quantity	2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® X99
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI
PCI Express x1 slots	3
BIOS type	UEFI
ACPI version	5.0

Weight and Dimensions

Depth	259 mm
Width	305 mm
