Gigabyte GA-X99-UD5 WIFI User Manual

- 13 -
Hardware Installation
1-3 Installing the CPU and CPU Cooler
Read the following guidelines before you begin to install the CPU:
• Make sure that the motherboard supports the CPU.
(GotoGIGABYTE'swebsiteforthelatestCPUsupportlist.)
• Always turn off the computer and unplug the power cord from the power outlet before installing the
CPU to prevent hardware damage.
• LocatethepinoneoftheCPU.TheCPUcannotbeinsertediforientedincorrectly.(Oryoumay
locatethenotchesonbothsidesoftheCPUandalignmentkeysontheCPUsocket.)
• Apply an even and thin layer of thermal grease on the surface of the CPU.
• Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage
of the CPU may occur.
• SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended
thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics
card, memory, hard drive, etc.
1-3-1 Installing the CPU

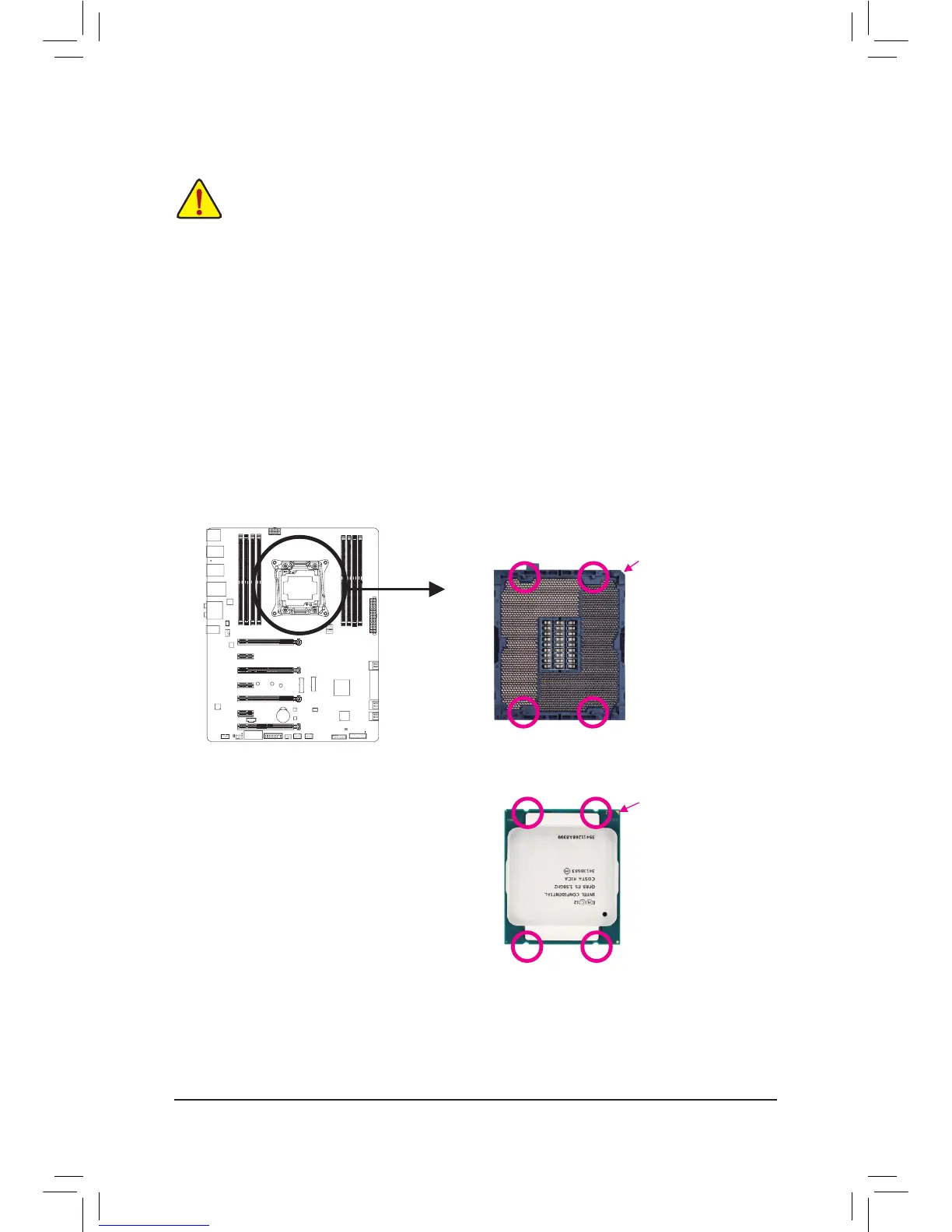

A. Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
Alignment Key
Alignment Key
LGA2011-3 CPU Socket
Pin One Corner of
the CPU Socket
LGA2011-3 CPU
Triangle Pin One
Marking on the CPU
Alignment KeyAlignment Key
Notch
Notch
Notch
Notch

Gigabyte GA-X99-UD5 WIFI Specifications

General

Non-ECC	Yes
Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	8
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000 MHz
Processor socket	LGA 2011 (Socket R)
Processor manufacturer	Intel
Compatible processor series	Intel Core i7, Intel Core i7 Extreme Edition
USB 2.0 connectors	4
Number of SATA connectors	10
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	6
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
PS/2 ports quantity	1
eSATA ports quantity	0
USB 2.0 ports quantity	2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® X99
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI
PCI Express x1 slots	3
BIOS type	UEFI
ACPI version	5.0

Weight and Dimensions

Depth	259 mm
Width	305 mm
