Gigabyte GA-X99-UD5 WIFI User Manual

- 8 -

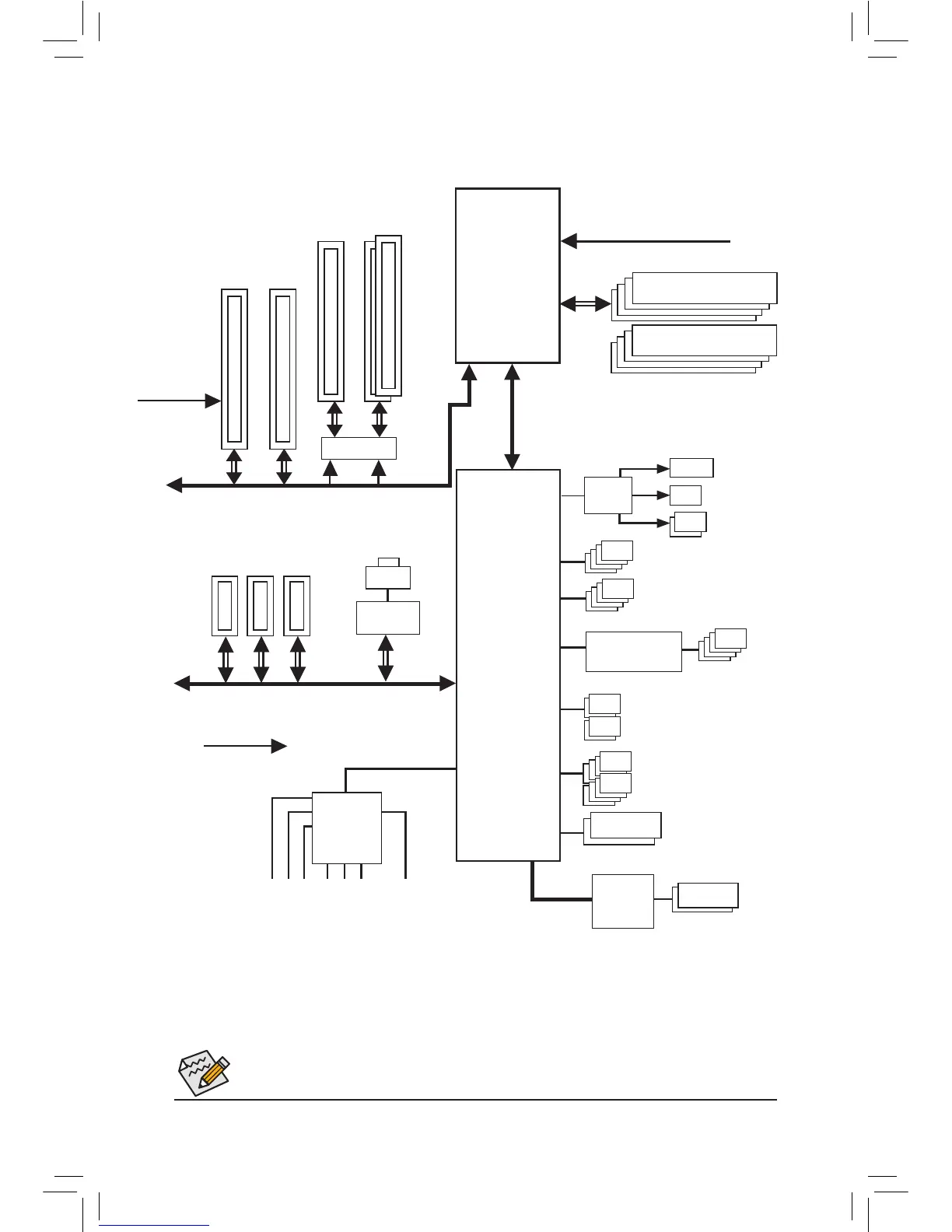

GA-X99-UD4 Motherboard Block Diagram
Fordetailedproductinformation/limitation(s),referto"1-2ProductSpecications."
LGA2011-3
CPU
CPUCLK+/-(100MHz)
DMI 2.0
LPC Bus
PS/2 KB/Mouse
iTE
®
Super I/O
Intel
®
X99
4 USB 3.0/2.0
8 USB 2.0/1.1
PCI Express Bus
PCI Express Bus
LAN
RJ45
Intel
®
GbE
LAN
x1
4 USB 3.0/2.0
Renesas
®
uPD720210 Hub
4 SATA 6Gb/s
DDR42133/1866/1600/1333MHz
4 Channel Memory
PCIe CLK
(100MHz)
Switch
x16
x16
1 PCI Express x16
2 PCI Express x8
or
x16 x8
1 PCI
Express x8
1 PCI
PCI Express x16
3 PCI Express x1
x1
x1
x1
PCIe CLK
(100MHz)
Dual BIOS
4 SATA 6Gb/s
Center/Subwoofer Speaker Out
Line Out
MIC
Line In
S/PDIF Out
Side Speaker Out
Rear Speaker Out
CODEC
SATA Express
M.2
or
or
Switch
2 SATA 6Gb/s

Gigabyte GA-X99-UD5 WIFI Specifications

General

Non-ECC	Yes
Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	8
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000 MHz
Processor socket	LGA 2011 (Socket R)
Processor manufacturer	Intel
Compatible processor series	Intel Core i7, Intel Core i7 Extreme Edition
USB 2.0 connectors	4
Number of SATA connectors	10
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	6
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
PS/2 ports quantity	1
eSATA ports quantity	0
USB 2.0 ports quantity	2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® X99
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI
PCI Express x1 slots	3
BIOS type	UEFI
ACPI version	5.0

Weight and Dimensions

Depth	259 mm
Width	305 mm
